INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Control mode applications
‐60‐

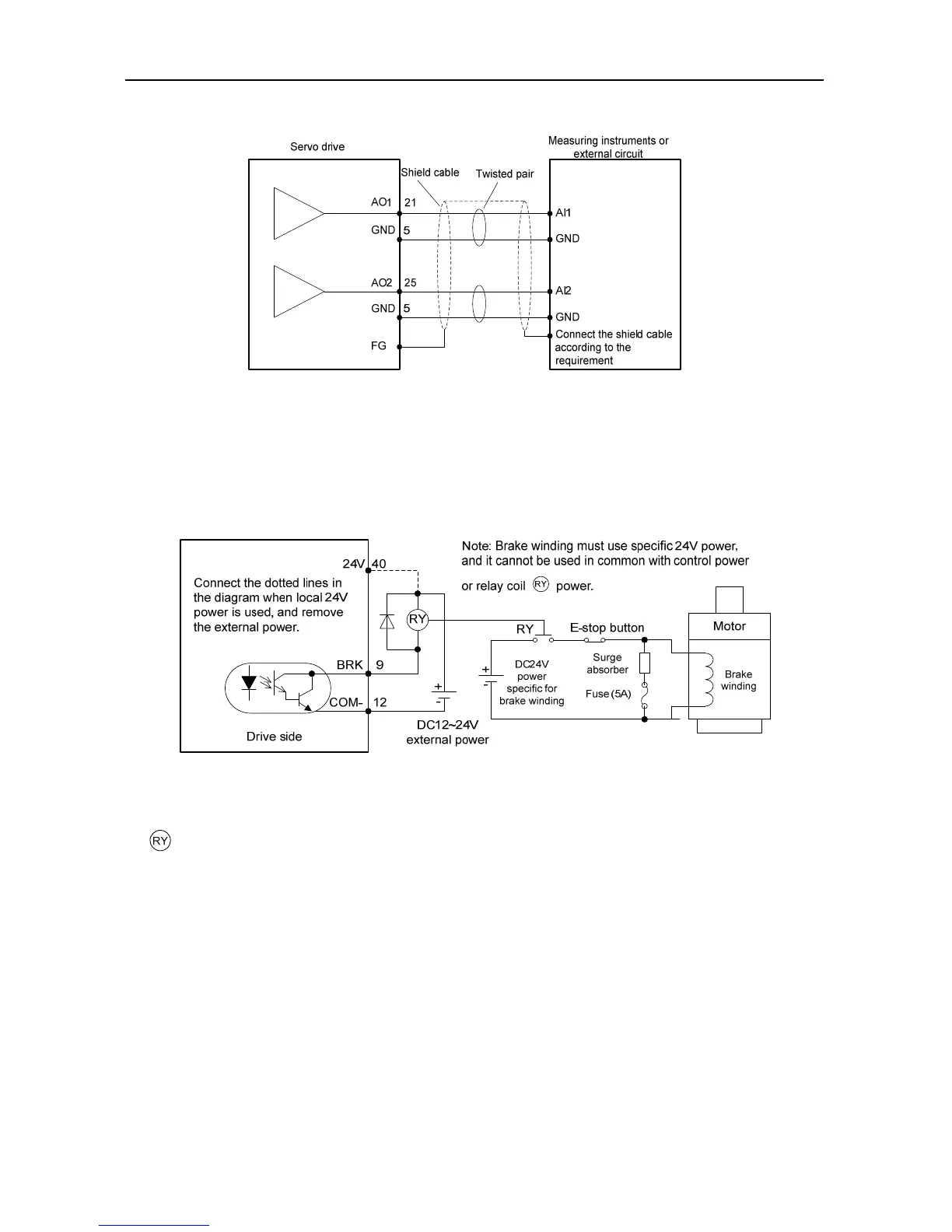

4.5.6 Wiring of the analog output circuit
 There are two analog output circuits in all. The output voltage range is -10V~10V. The Max output
current is 3mA.
4.5.7 Wiring of the electromagnetic brake
If the servo drive is used in the vertical shaft applications, the electromagnetic brake can be used to
stop and keep the dropping speed when servo drive is power off. The wiring diagram is:
 24V power supply specific for the electromagnetic brake cannot be used with the power supply for
control signal;
 is the relay coil, please pay attention to the direction of the diode;
 The electromagnetic brake is used to keep the speed, other than stop;
 Please install the external braking devices besides the electromagnetic brake.
