MK-100151 Rev. A
16
ENGLISH

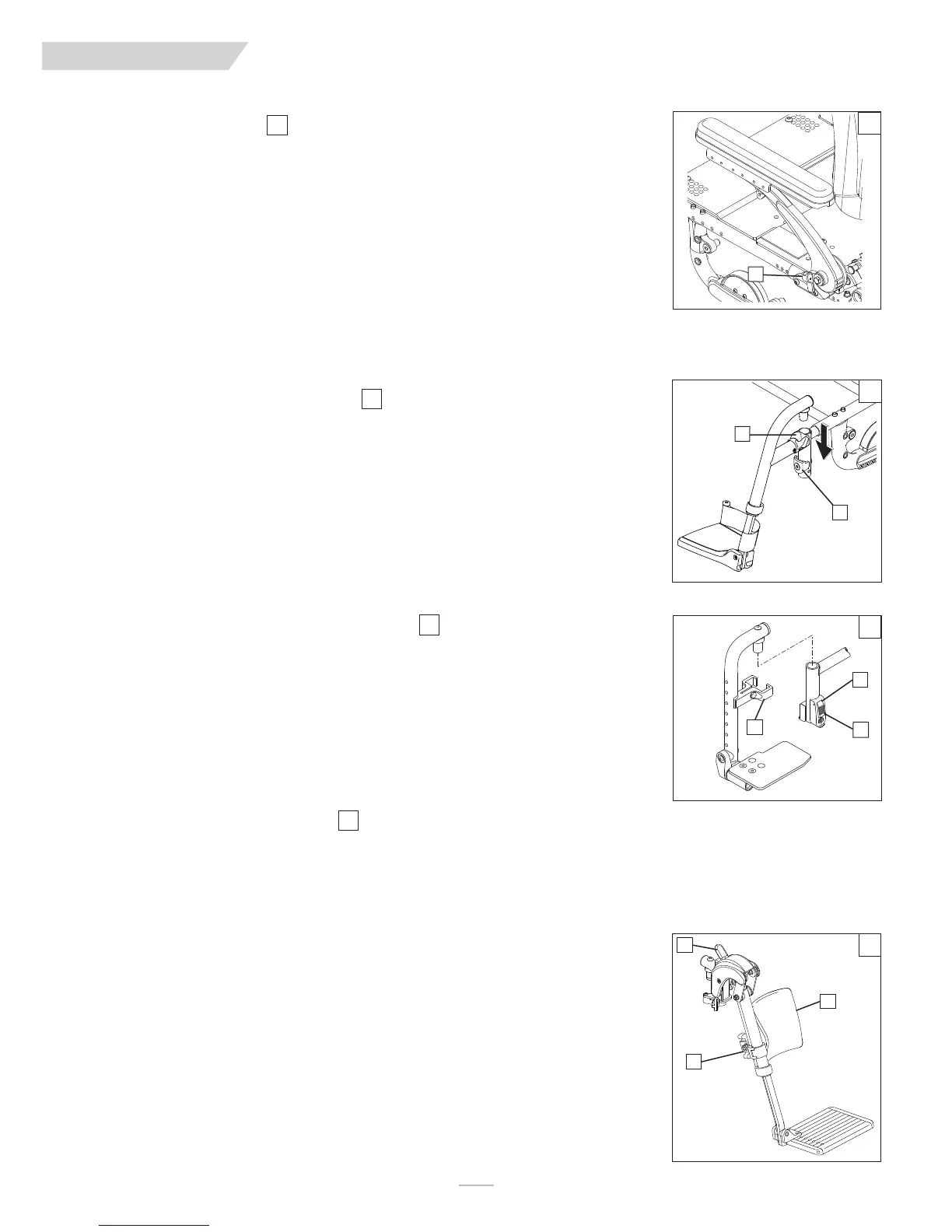

N. CANTILEVER ARMRESTS
1. Flip Back the armrest for access and transfers.
a. Release the armrest (A) by pulling up on the securing lever (this will unlock the armrest).
b. Rotate the armrest back.
2. Return the armrest to the riding position
a. Rotate the armrest back to riding position.
b. Be sure to lock the armrest by returning the securing lever to It’s locked position.
NOTE–
Figure shows Lever(A) in locked position.
O. SWING-AWAY HANGERS/FOOTRESTS
Swing-in-Swing-out Hangers and Footrests (60°, 70º, 80°)
1. Installation
a. Place swing-in/swing-out pivot saddle into the receiver (A) on front frame tube with the footrest
facing inward or outward from the frame.
b. Rotate the footrest inward until it locks into place on locking plate.
2. Removal
a. To remove footrest, release latch (B) by pulling lever upward or pushing lever downward.
b. Rotate footrest inward or outward and lift.
P. HEAVY-DUTY, LIFT-OFF FOOTRESTS (optional)
1. Installation
Slide pivot saddle (C) into receiver (D) on front frame tube until it locks into place.
2. Removal
To remove footrest, push release latch (E) while lifting up footrest from receiver.
Q. ARTICULATING LEGREST (optional)
1. Installation or Removal
To install or remove Articulating Legrest (ALR) see instructions for Swing-away Footrest installation.
2. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (F) down and lower Legrest to desired position.
Legrest will automatically lock in place.
3. Height Adjustment of the Calf Pad
a. Rotate the tube clamp (G) towards the outside.
b. Slide calf pad assembly up or down.
c. Rotate calf pad assembly (H) back in the desired indented position.
20
21
22
19
20
21
22
C
D
E
F
G
H
A
B
19
A
VIII. USE AND MAINTENANCE
