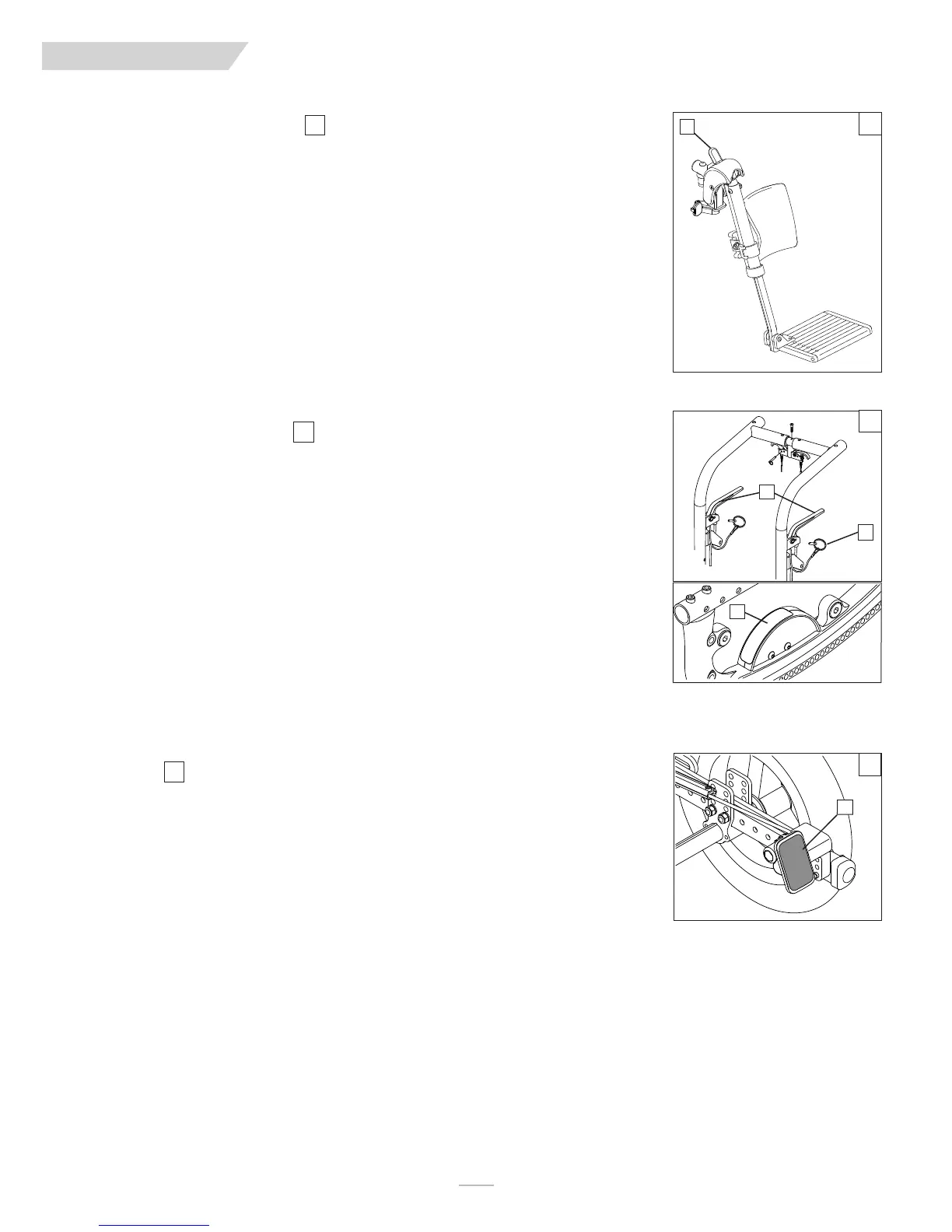

R. ELEVATING LEGREST (optional)
1. Installation or Removal
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest
installation.
2. Elevation Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, press release lever (I) down and lower legrest to desired position.
Legrest will automatically lock in place.
S. TILT-IN-SPACE MECHANISM
The tilt-in-space mechanism is installed by Sunrise. Two cable/trigger mechanisms positively lock the chair in
place from -5º to 60º depending on the set-up. The Quickie/Zippie IRIS has the capability to provide from 0º to
5º of forward tilt. DO NOT ATTEMPT TO MAKE THIS ADJUSTMENT. This adjustment must be done by an
authorized supplier.
1. Trigger Tilt Operation
a. Depressing both triggers (A) at the same time disengages the locking mechanism and allows the seat and
back to rotate in space. Releasing the triggers positively locks the rockers in place.
b. The approximate degree of tilt the seat is at can be seen on the tilt indicator (C).
c. To lock out the tilting function, insert the locking pin (B) into the trigger holder.
2. Foot Release
a. Depressing foot pedal (D) disengages the locking mechanism and allows the seat and back to rotate in
space. Releasing the foot pedal positively locks the rockers in place.
b. The approximate degree of tilt the seat is at can be seen on the tilt indicator (C).
