Chapter 1 BEFORE USE

1.5 ADJUSTMENTS




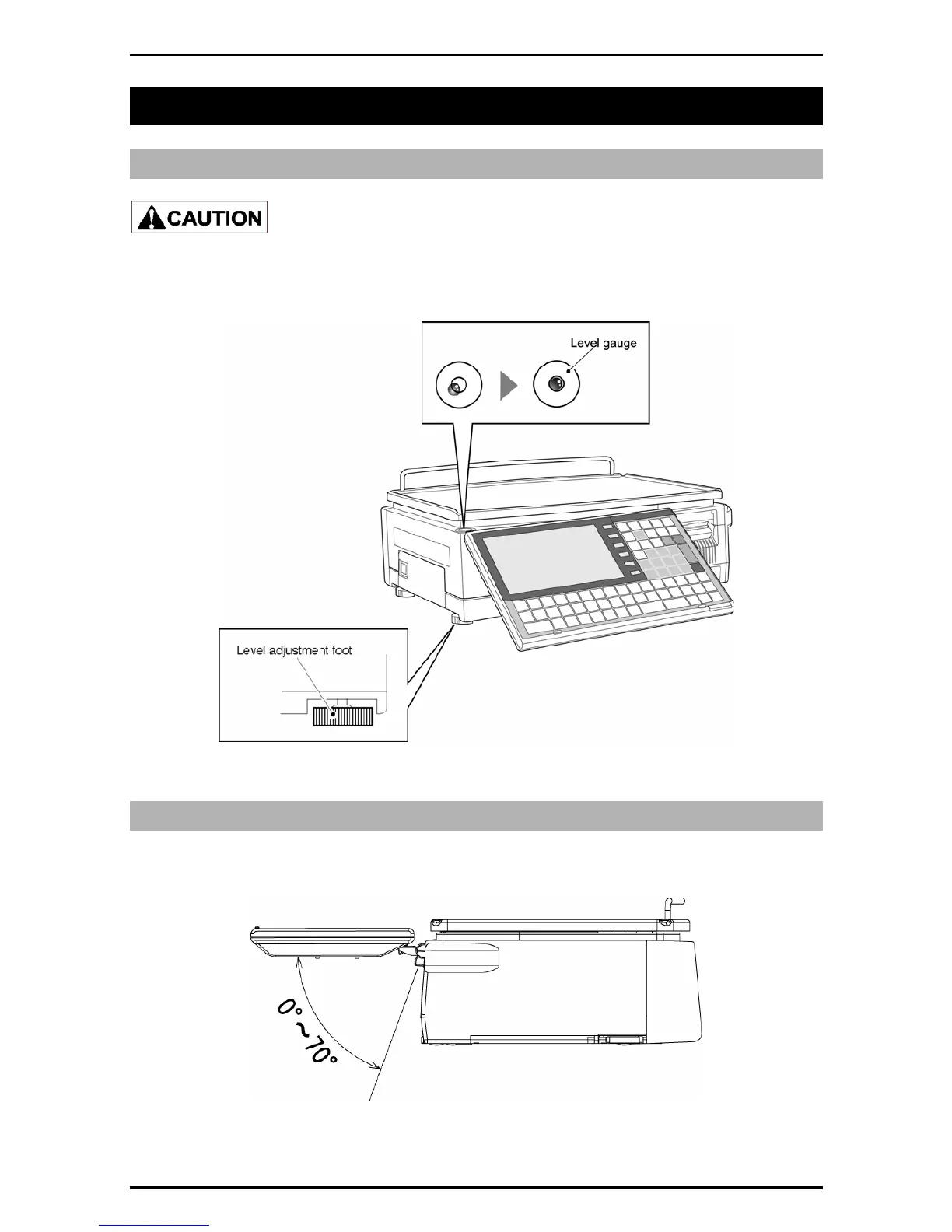

1.5.1 LEVEL ADJUSTMENT (BENCH TYPE)

Install the machine horizontally to use.
Be sure to turn off the power switch before placing the machine on a stable platform, and adjust the
machine inclination by turning the four level adjustment feet so that the bubble is located at the center
of the level gauge. Accurate measurements cannot be performed if it is not installed horizontally.
1.5.2 OPERATION PANEL ANGLE ADJUSTMENT (BENCH TYPE)
To obtain a better view, adjust the angle of the operation panel within the range between 0 and 70
degrees.
UNI-7 User’s Manual 1-5
