1.6 Power supply connection
DC power connection

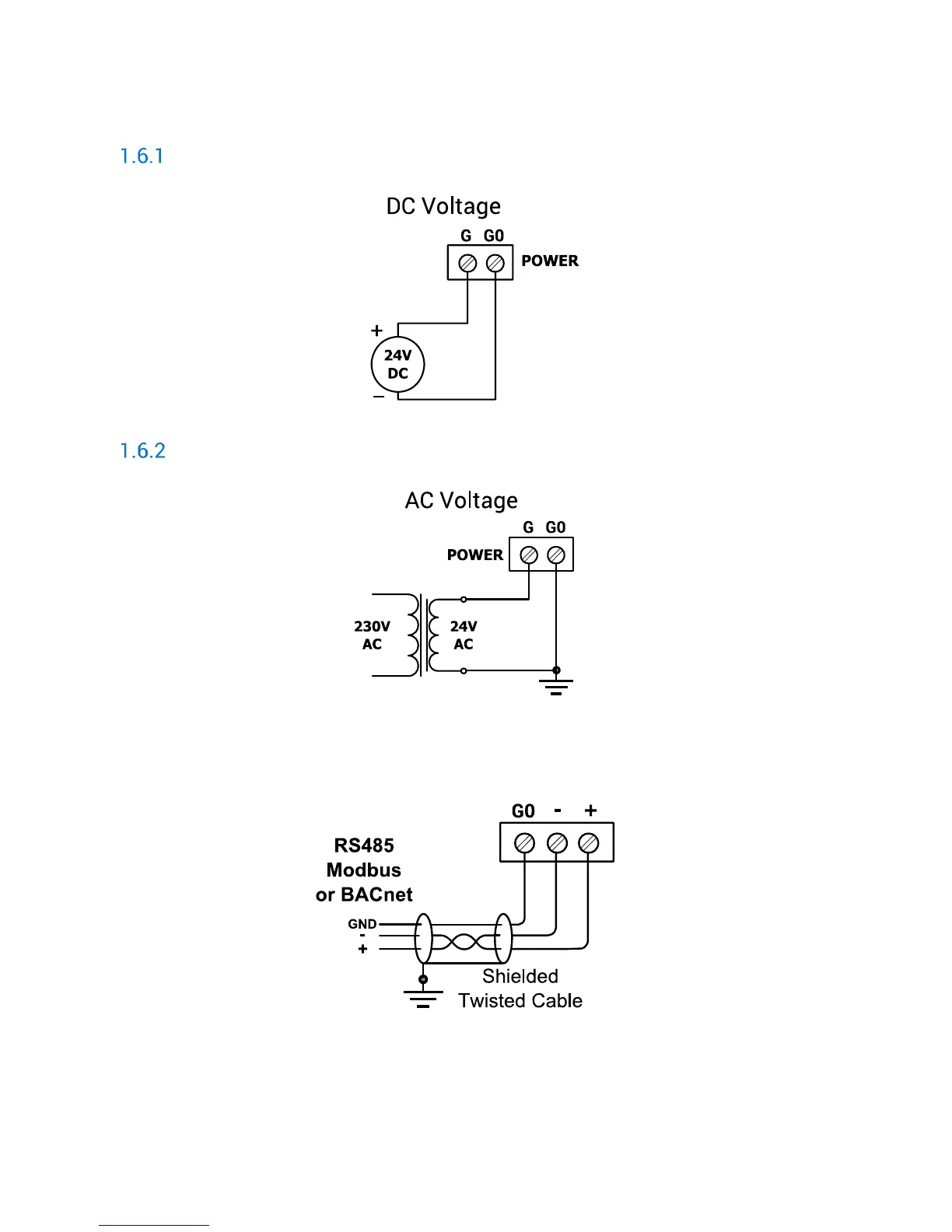

Figure 4 DC power supply connection
AC power connection
Figure 5 AC power supply connection
1.7 Connecting the communication bus (RS485)
Figure 6 RS485 connection
