Resetting counters (40022)
Setting true value of particular bit of this 16-bit register causes reset (sets to 0) the
corresponding counter in accordance with the following table:
No of bit in register
No of Digital Input
0
1
1
2
…
…
10
11
11
12
Table 17 Resetting counters for MIX38 and MIX38-IP
Setting true value of particular bit of the register causes continuously reset of the counter.
Setting the bit to 0 restores normal operation.

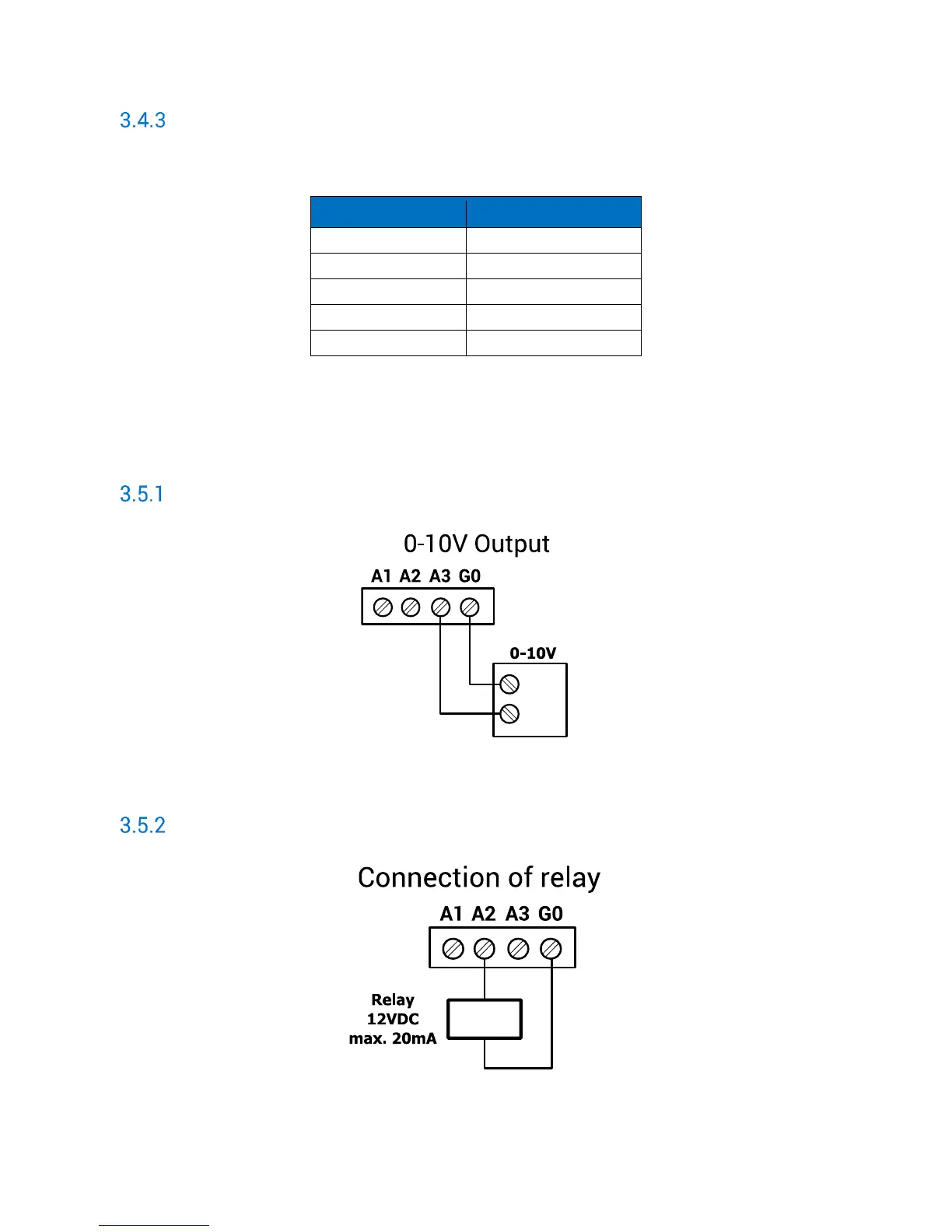

3.5 Analog Outputs Connections
Connection of Analog Output 0 – 10 V
Figure 23 Connection of AO for MIX38 and MIX38-IP
Connecting relay to Analog Output
Figure 24 Connection of AO to the relay for MIX38 and MIX38-IP
