In default 0.
• Differential (Read & Write, 4U4O-H-IP only), differential value for heating/cooling modes.
In default 0.
WARNING! To save changes please use “Submit” button
.
Digital Inputs
This page allows to enter configuration parameters and shows actual value of Digital
Inputs. To open this page please navigate to Local IO tab and choose Digital Inputs from
submenu.

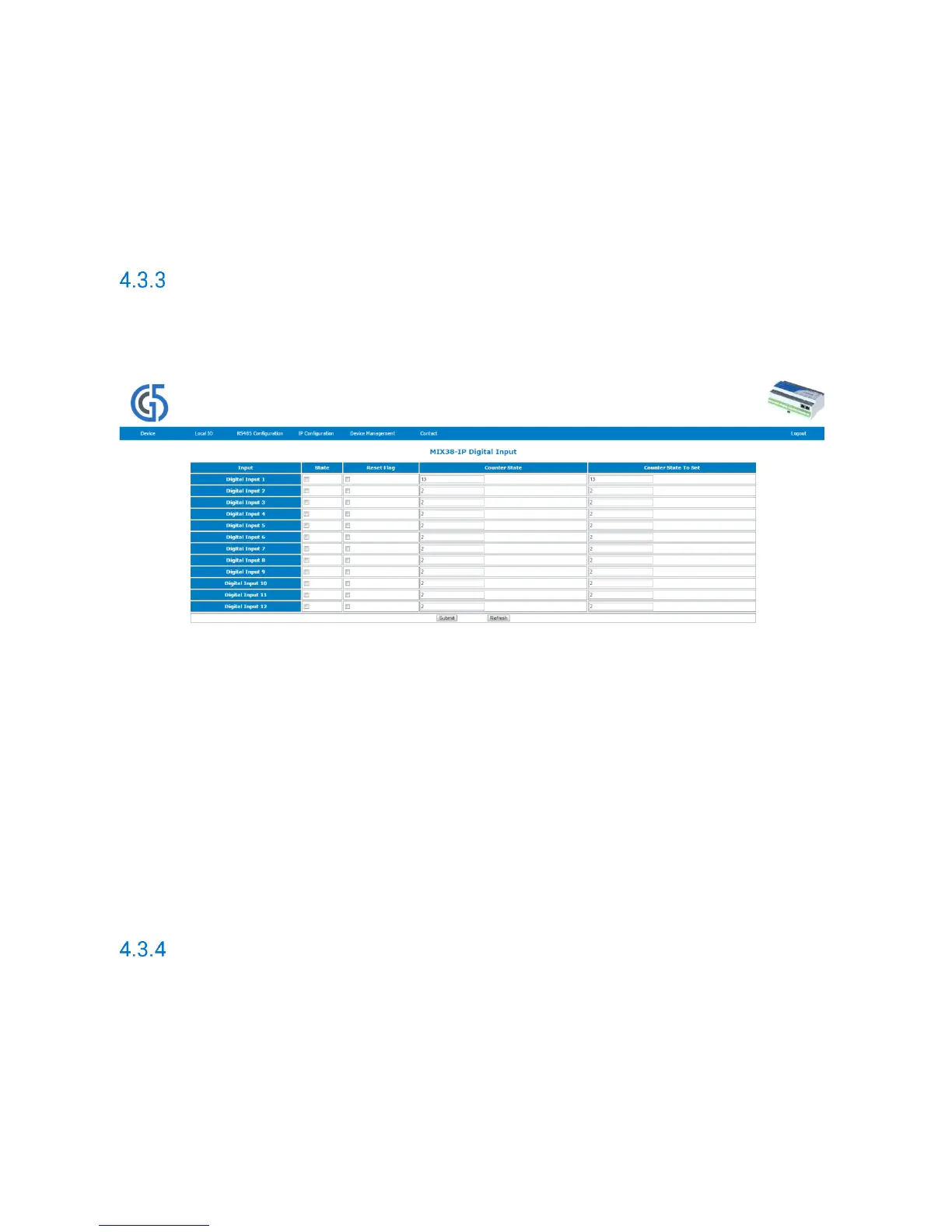

Figure 37 Digital Inputs page of MIX38-IP
Digital Input table has the following fields:
• State (Read Only), actual input state.
• Reset Flag (Read & Write), reset of pulses value (leaving reset active will case resetting
pulses value).
• Counter State (Read Only), actual value of pulses save in EEPROM.
• Counter State To Set (Read & Write ), allows to set value of counter.
WARNING! To save changes please use “Submit” button
.
Digital Outputs
This page allows to enter configuration parameters and shows actual value of Digital
Outputs. To open this page please navigate to Local IO tab and choose Digital Outputs from
submenu.
