1.11 Setting Module Address on Modbus Network
To determine the address on the Modbus network, module provides two rotary switches S1
and S2 located on the top panel of the device.
It is possible to set the device address from 0 to 99.
The formula for setting the address:
Address = S2 • 10 + S1
Where S1 and S2 are values of switches.
The example:

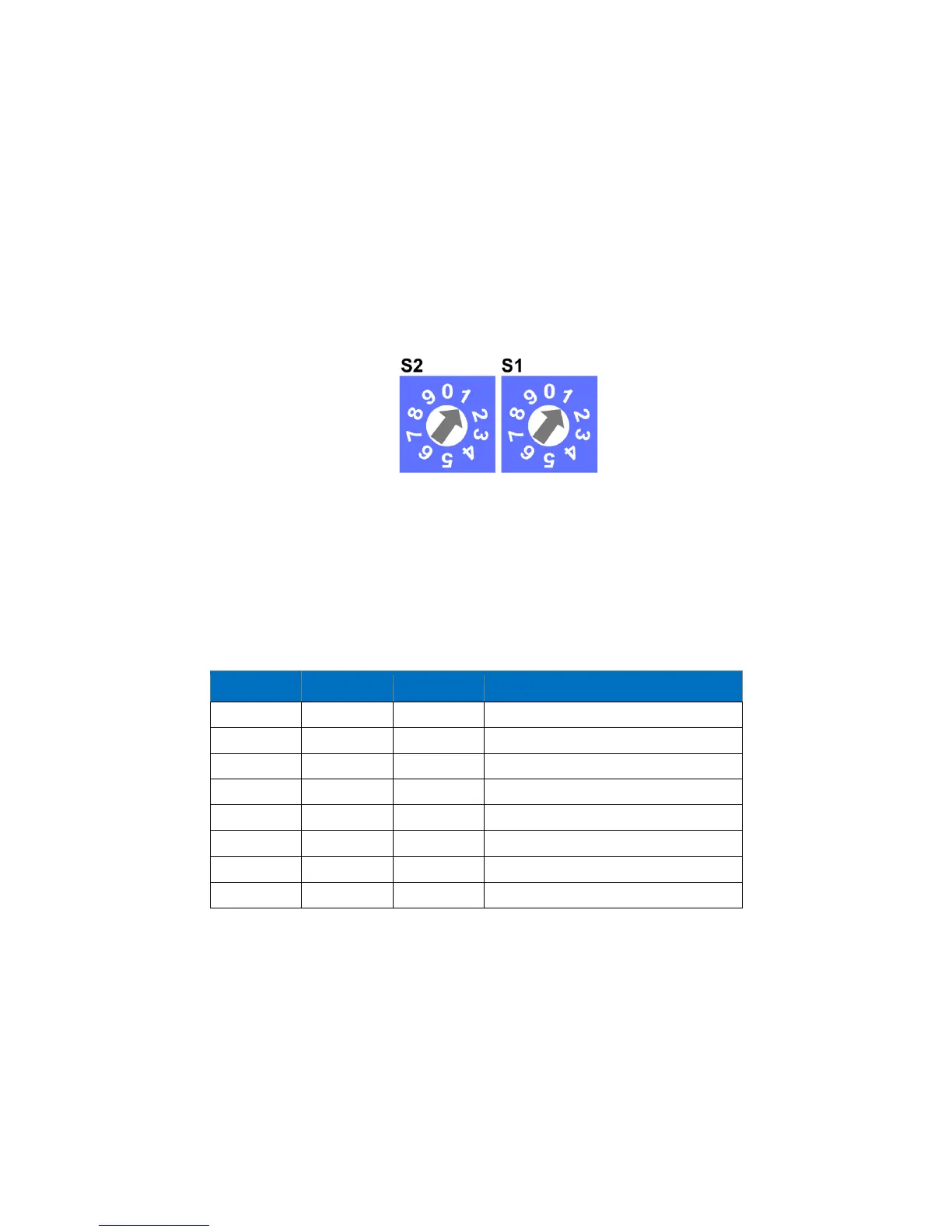

Figure 16 Sample of setting address
Switches set as in figure above will set the module address to 11.
1.12 Baud rate selection
Transmission baud rate is determined by S3 switch (sections 1, 2 and 3) in accordance with
the following table:
1
2
3
Baud rate
OFF (0)
OFF (0)
OFF (0)
Defined by the user in the registry
OFF (0)
OFF (0)
ON (1)
76800
OFF (0)
ON (1)
OFF (0)
4800
OFF (0)
ON (1)
ON (1)
9600
ON (1)
OFF (0)
OFF (0)
19200
ON (1)
OFF (0)
ON (1)
38400
ON (1)
ON (1)
OFF (0)
57600
ON (1)
ON (1)
ON (1)
115200 (factory set)
Table 4 Baud rate selection
