Connection of Universal Input to measure temperature

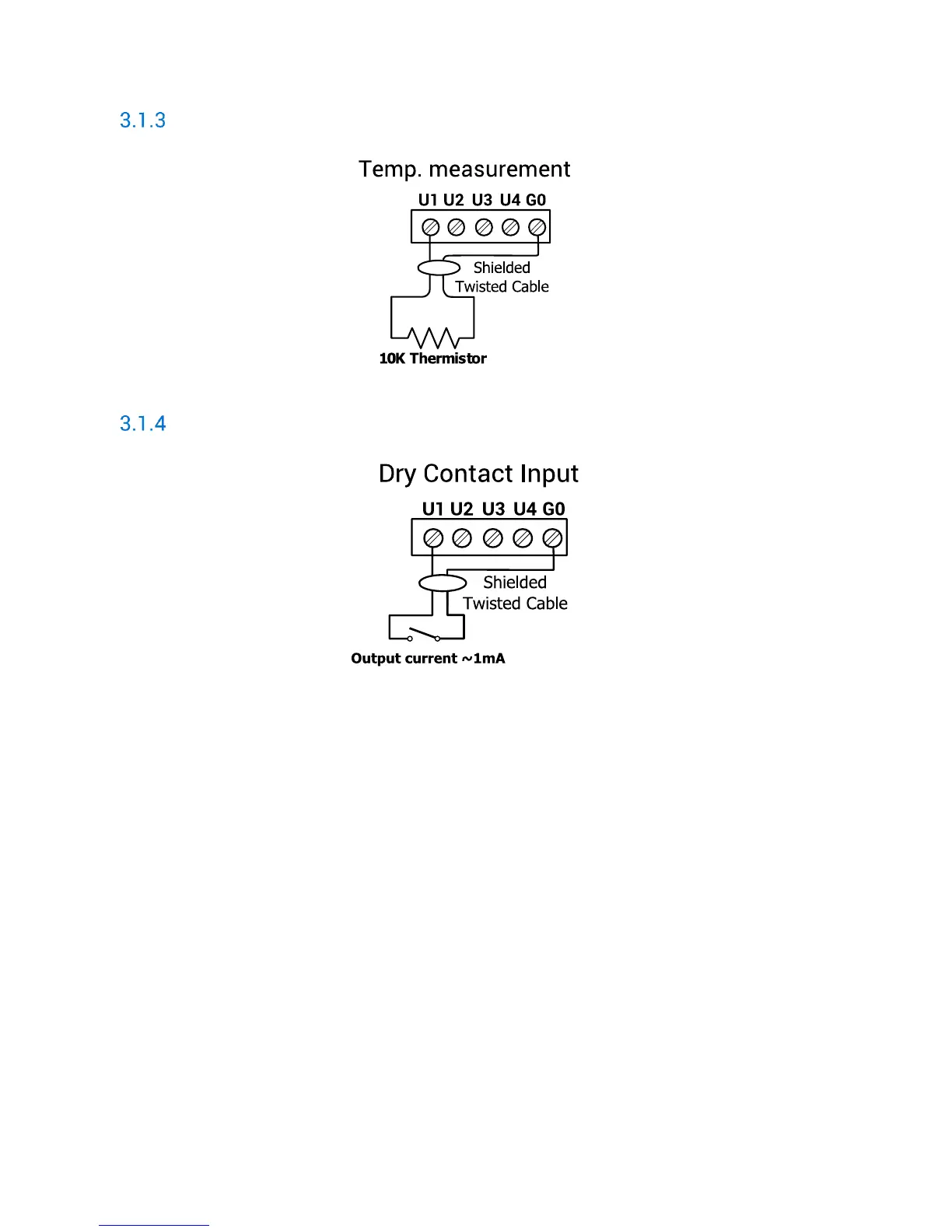

Figure 20 Connection of UI to measure temperature for MIX18 and MIX18-IP
Connection of Universal Input as a Digital Input (Dry Contact)
Figure 21 Connection of UI to work as DI for MIX38 and MIX38-IP
