iSMA MINI Series - 3.9 Triac Outputs: Connections

MINI and MIX Series I/O modules/Modbus
version 1.3 www.gc5.pl Page 34 / 73
Value of Hand
status
Status
Description
0
AUTO
2
HAND OUT = 0
3
HAND OUT = 1
Table 26 DO Hand status value

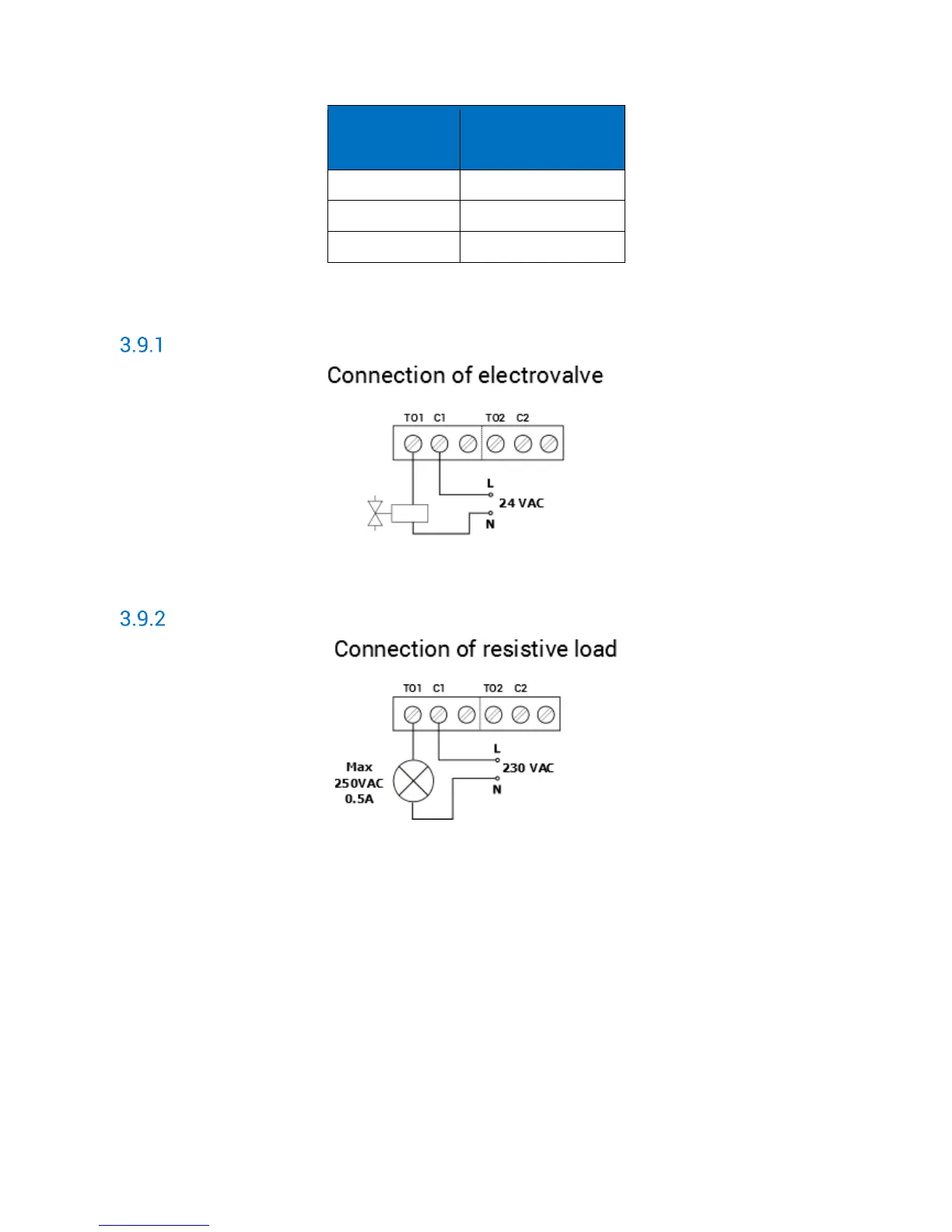

3.9 Triac Outputs Connections
Connecting the solenoid valve to the Triac Output
Figure 28 Connection of solenoid valve to TO for 4TO-H and 4TO-H-IP
Connecting a resistive load to the Triac Output
Figure 29 Connection of resistive load to TO for 4TO-H and 4TO-H-IP
