4.5 IP Configuration
This page allows to change parameters of Ethernet port, Modbus TCP and BACnet IP.

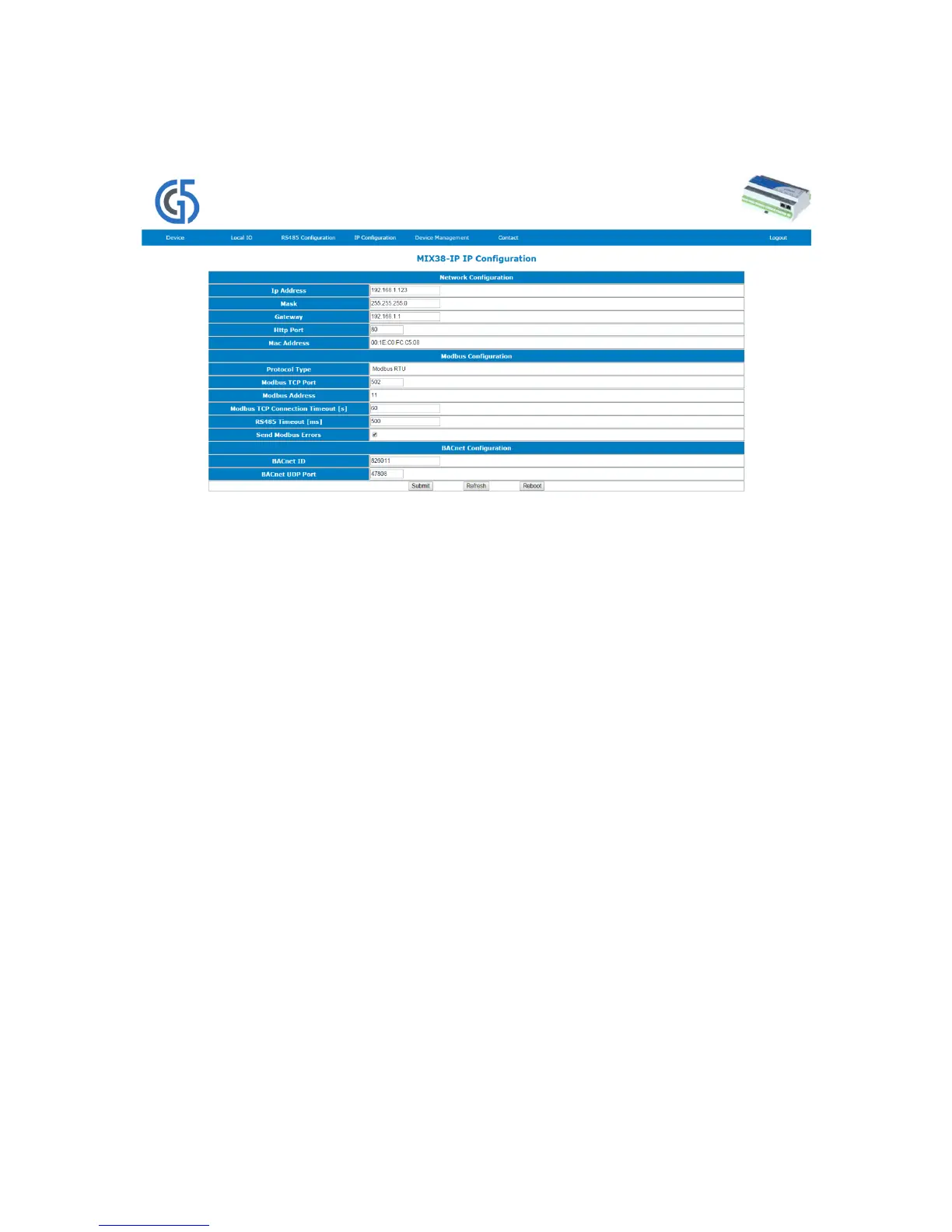

Figure 41 IP configuration page
This page allows to set parameters such as:
• IP Address (Read & Write), controller Ethernet interface IP address.
• Mask (Read & Write), network mask.
• Gateway (Read & Write), network default gateway.
• Http Port (Read & Write), http port.
• Mac Address (Read Only), Ethernet interface MAC address.
• Protocol Type (Read Only), Dip Switch protocol selection.
• Modbus TCP Port (Read & Write), Modbus TCP port number, default 502.
• Modbus Address (Read Only). Modbus device address set by rotary switches.
• Modbus TCP Communication Timeout (Read & Write), timeout for TCP/IP messages.
• RS485 Timeout (Read & Write), timeout for Modbus RTU/ASCII messages.
• Send Modbus Errors (Read Only), Enable / Disable sending Modbus error messages.
• BACnet ID (Read & Write), BACnet ID set by rotary switches, this value can be
overridden by the user, once overridden by user changing rotary switches will not affect
BACnet ID.
• BACnet UDP port (Read & Write),BACnet IP port.
WARNING! To save changes please first click “Submit” button and then “Reboot” button
