• Temperature (Read Only), in Celsius with an accuracy of 1 decimal [°C].
• Voltage (Read Only) in millivolts [mV].
WARNING! To save changes please use “Submit” button
.
Special application modes configuration
This page allows to enter configuration parameters and show actual value of Special
application modes. To open this page please navigate to Local IO tab and choose Universal
Inputs from submenu.

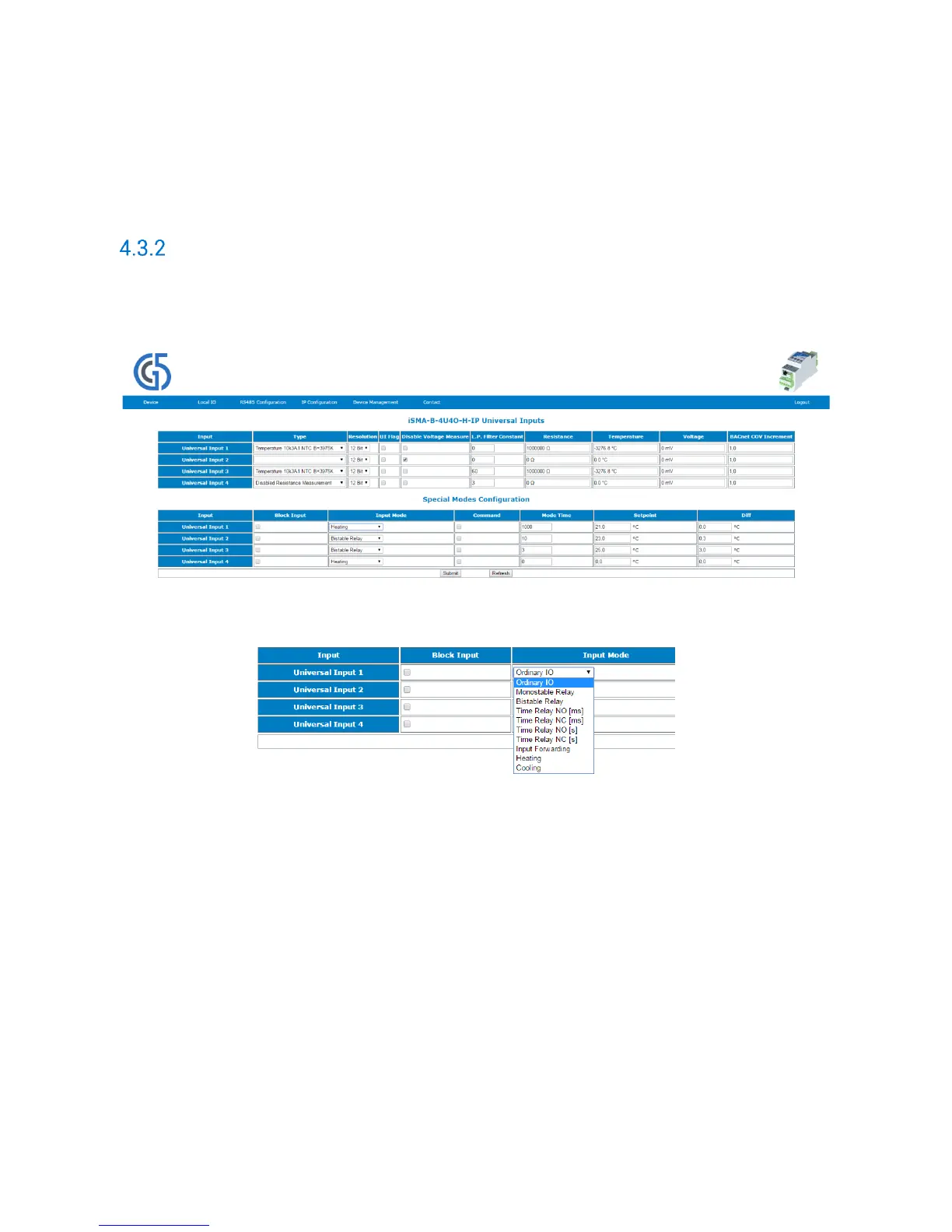

Figure 35 Universal Inputs page of 4U4O-IP
Figure 36 Special application modes
Special Modes Configuration table has the following fields:
• Block Input (Read & Write) allows to block particular input (except heating/cooling
modes).
• Input Mode (Read & Write), allows to select the Special Application Mode for particular
input (Ordinary IO in default).
• Command (Read & Write), execution of the Special Application Modes (except input
forwarding, heating/cooling modes).
• Mode Time (Read & Write), Time base for time relay application modes (unit depends
on selected mode [ms] or [s]).
• Setpoint (Read & Write, 4U4O-H-IP only), setpoint value for heating/cooling modes.
