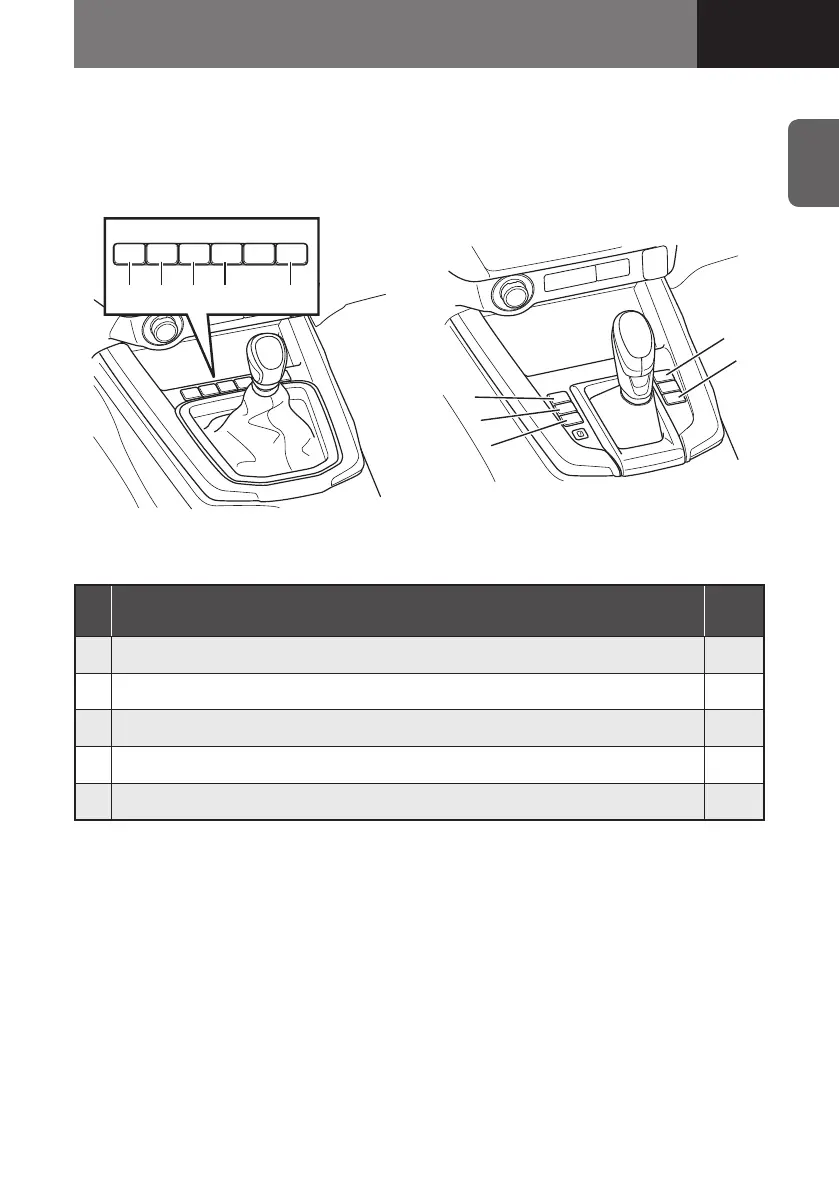

PICTORIAL
INDEX
Center Console (Left-hand Drive)
RTUL00SH030201
4
5
1
3
2
No.
Equipment
Page
1
Heat
ed seat swi
tch (lef
t fro
nt seat)
4-141
2
Rear di
ffe
rential l
ock sw
itch
4-128
3
Hill d
esce
nt cont
rol switc
h
4-176
4
Park
ing aid syst
em OFF switc
h
4-220
5
Heat
ed seat swi
tch (
r
ight fr
ont seat)
4-141
RTUL00SH030101
1
2
3
4
5
Manual transmission model
Automatic transmission model
5108428_sec00_PICTORIAL INDEX.indd 13
2020/11/05 10:58:03
18
20
Table of Contents
TF-IE-2001E6EU
1
HOW TO USE THIS MANUAL AND HOW TO FIND A SPECIFIC TOPIC
7
HOW TO USE THIS MANUAL
8
HOW TO FIND A SPECIFIC TOPIC
9
CHAPTER DESCRIPTION
11
PICTORIAL INDEX
12
WARNING/INDICATOR LIGHT INDEX
25
WARNING/CAUTION LABELS
48
VEHICLE INFORMATION
51
Vehicle Identification Number (VIN) and Engine Number
52
IMPORTANT INFORMATION
57
Before Driving
58
Seat Belt with Pretensioner and SRS Airbag System
76
Carrying Children
81
Driving
84
Off-road Driving
102
Trailer Towing
103
Automatic Transmission Model
112
Four Wheel Drive (4WD) Model
117
Stopping and Parking
120
Cautions for Driving in Hot Regions
127
Cautions for Driving in Cold Regions
128
Staying Safe
133
Preventing Breakdowns
138
When to Visit Your Isuzu Dealer
142
Diesel Particulate Defuser (DPD)
145
Urea Selective Catalytic Reduction (SCR)
147
Speed Limit Device
150
Vehicle Data Collection
150
PRE-DRIVING OPERATIONS AND ADJUSTMENTS
151
Key
152
Key with Immobilizer Transponder Chip
155
Anti-theft System
158
Keyless Entry System
163
Passive Entry and Start System
170
Doors
178
Side Access Panel (Extended Cab Model)
190
Tailgate
192
Getting In and Out of the Vehicle
195
Power Windows
196
Manually Operated Windows
200
Fuel Tank Filler Cap
201
AdBlue® Tank
205
Seats
208
Fully Adjustable Steering
218
Mirrors
219
Seat Belts
222
Child Restraint System (CRS)
231
Seat Belt with Pretensioner and SRS Airbag System
250
Passenger Side SRS Airbag On-Off Switch
271
CONTROLS AND INSTRUMENTS
277
STARTING AND STOPPING THE ENGINE
279
Starting the Engine
280
Warm-up System
286
Stopping the Engine
287
INSTRUMENTS, WARNING LIGHTS AND INDICATOR LIGHTS
289
How to Read the Instruments (Instruments Layout)
290
Tachometer
291
Speedometer
291
Odometer and Trip Meter
292
Engine Coolant Temperature Gauge
293
Fuel Gauge
294
Warning and Indicator Lights Layout
296
Illumination of Center Display
301
Multi-Information Display (MID)
302
Head Up Display
325
Warning and Indicator Lights
326
Warning Buzzer
382
SWITCHES
387
Engine Start/Stop Button (Models with Passive Entry and Start System)
388
Starter Switch (Models without Passive Entry and Start System)
391
Combination Light Control Switch
393
Headlight Leveling Switch
401
Front Fog Light Switch
402
Rear Fog Light Switch
402
Hazard Warning Flasher Switch
403
Rear Differential Lock Switch
404
Windshield Wiper and Windshield Washer Switch
407
Horn Button
413
Remote Control Mirror Switch
414
Retractable Power Mirror Switch
415
Illumination Control Switch
416
Heated Seat Switch
417
Rear Window Defogger Switch
418
DRIVING CONTROLS
419
Pedals
420
Parking Brake
421
Manual Transmission
422
Automatic Transmission
423
Cruise Control
429
Anti-lock Brake System (ABS)
435
Electronic Braking force Distribution (EBD)
439
Electronic Stability Control (ESC)
440
Brake Assist Function
447
Emergency Stop Signal (ESS)
448
Hill Start Assist
449
Hill Descent Control
451
Trailer Sway Control
455
Multi-Collision Brake (MCB)
456
Idling Stop System
457
Blind Spot Monitor (BSM)
466
Rear Cross Traffic Alert (RCTA)
475
Parking Aid System
484
Stereo Camera
497
Autonomous Emergency Braking (AEB)
513
Pedal Misapplication Mitigation
525
Adaptive Cruise Control (ACC)
531
Traffic Sign Recognition (TSR)
557
Manual Speed Limiter (MSL)
565
Intelligent Speed Limiter (ISL)
569
Lane Departure Warning (LDW)
573
Lane Departure Prevention (LDP)
578
Emergency Lane Keeping (ELK)
587
Lane Keep Assist System (LKAS)
597
Attention Assist
606
Automatic High Beam (AHB)
609
Four Wheel Drive (4WD) Model
613
Diesel Particulate Defuser (DPD)
622
Urea Selective Catalytic Reduction (SCR) System
625
COMFORT AND CONVENIENCE
627
Air Outlets
628
Automatic Air Conditioner
631
Heater/Manual Air Conditioner
641
Interior Lights
653
Overhead Console
656
Sun Visor
657
Ticket Holder
657
Vanity Mirror
658
Accessory Socket
658
USB Power Outlet
660
Small Article Storage Pocket
661
Small Article Storage Pocket (Passenger's Side)
662
Glove Compartment
663
Dashboard Tray
664
Small Article Storage Pocket (Upper Side of Dashboard)
664
Small Article Storage Pocket (Driver's Side)
665
Center Console Box
666
Cup Holder
667
Cup Holder and Small Article Storage Pocket
668
Bottle Holder and Small Article Storage Pocket (Front and Rear Doors)
670
Grip
671
Coat Hook
672
Hook
672
Antenna
673
Steering Wheel Remote Control
674
Rear Vision Camera
675
SERVICE AND MAINTENANCE
677
BEFORE SERVICE AND MAINTENANCE
679
Precautions for Checking and Adjustments
680
Discarded Parts, Oils and Other Liquids
683
Isuzu Genuine Oils and Grease
683
Tools
684
Engine Hood
687
DAILY CHECKS
691
Daily Checks (Preoperational Checks)
692
Checking Components that Showed Abnormalities during Previous Operation
694
ENGINE-RELATED SERVICE AND MAINTENANCE
695
Engine Conditions
696
Engine Oil
698
Engine Coolant
712
Handling the Radiator
717
Water-Cooled Intercooler System
719
Accessory Belt
726
Air Cleaner
727
Fuel Filter
729
Diesel Particulate Defuser (DPD)
733
CHASSIS-RELATED SERVICE AND MAINTENANCE
735
Brakes
736
Parking Brake
741
Wheels and Tires
741
Tire Rotation
747
Spare Tire
748
Handling the Jack
753
Changing Tires
758
Clutch Fluid (Manual Transmission Model)
768
Automatic Transmission Fluid (Automatic Transmission Model)
769
Steering Wheel
770
Power Steering Fluid (Hydraulic Power Steering Model)
771
OTHER SERVICE AND MAINTENANCE
773
Windshield Washer Fluid
774
Windshield Wiper Blades
775
Lights
782
Handling the Battery
795
Refrigerant
805
INTERIOR AND EXTERIOR MAINTENANCE
807
Exterior Maintenance
808
Interior Maintenance
812
MAINTENANCE DATA
817
Inspection and Maintenance
818
IN CASE OF EMERGENCY
831
Troubleshooting
832
When the Electronic Key Battery Goes Flat
837
Emergency Engine Stopping (Models with Passive Entry and Start System)
840
Emergency Engine Starting (Models with Passive Entry and Start System)
841
When the Vehicle Breaks Down during Driving
842
When the Tire Goes Flat
843
When the Engine Stops While Driving
844
When the Engine Stalls and Cannot Be Restarted
845
When the Brakes Do Not Work
845
When the Battery Goes Flat
846
When the Fuel Runs Out
848
When the Generator Warning Light Comes On
850
When the Engine Oil Pressure Warning Light Comes On
851
When the Warning Light Comes On
851
When the Engine Overheats
852
When the Light Does Not Come On
854
Replacing the Fuses and Relays
854
When Driving on Bad Roads
858
Towing
859
Emergency Call System (eCall System)
865
MAIN DATA
877
Main Data and Specifications
878
Others
886
