4-188
CONTROLS AND
INSTRUMENTS

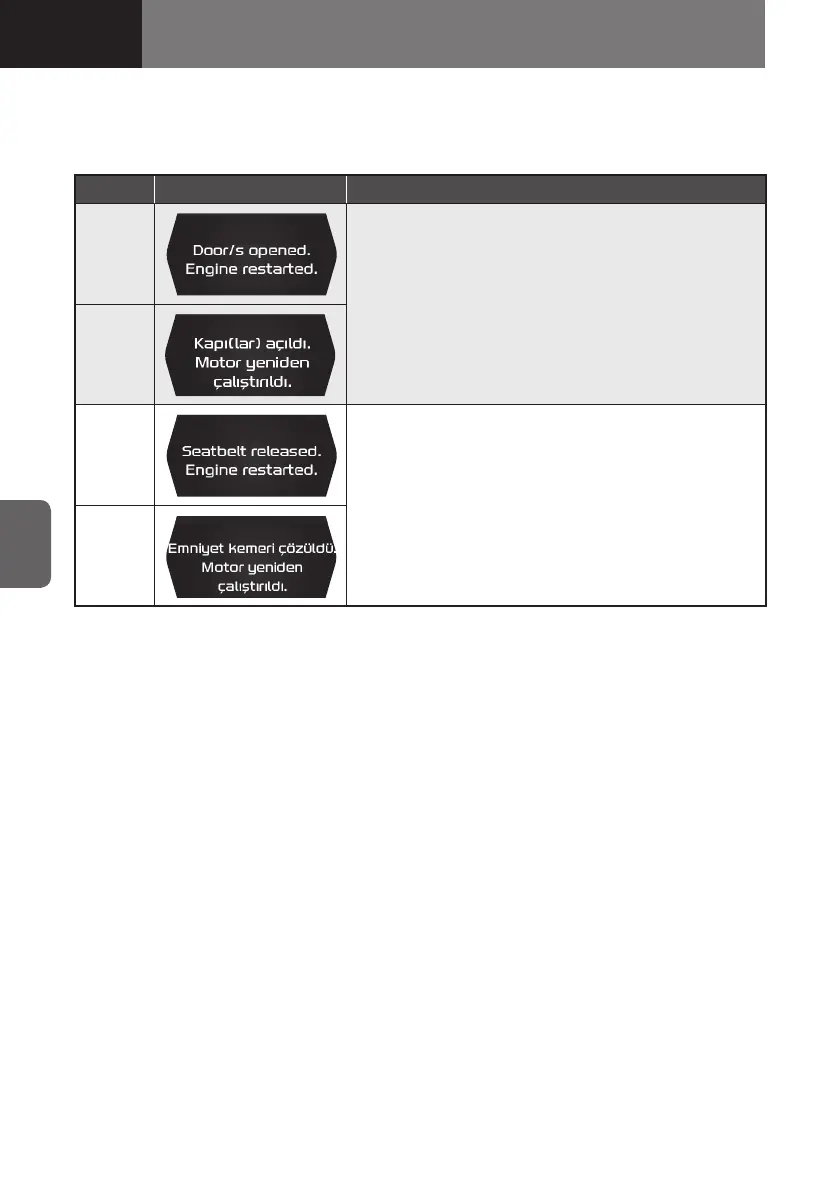

If the following conditions are met while the engine is automatically stopped by ISS,
the indicator light flashes, a warning buzzer sounds intermittently
, and the system
automatically restarts the engine.
Language
Display indication
Condition
English
RTUL00SH012401
•
If the driver side door is opened.
T
urkish
RTUL00SH042601
English
RTUL00SH012601
•
If the driver side seatbelt is unbuckled.
T
urkish
RTUL00SH042701
5108428_sec04_CONTROLS AND INSTRUMENTS_P143-end.indd 188
2020/11/12 15:29:00
463
465
