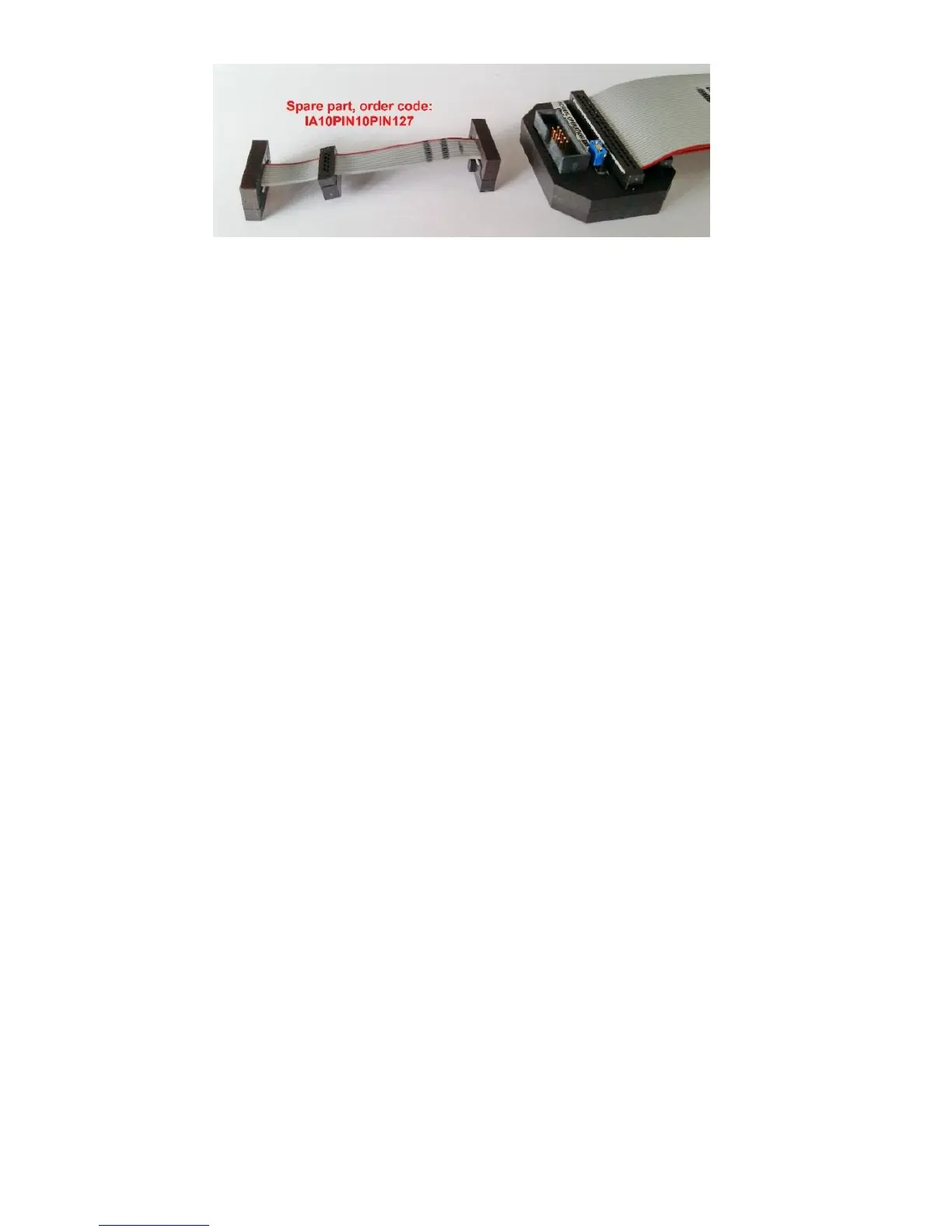

IC50163-2 with the detached 10-pin 1.27mm pitch cable
Optionally, a longer ribbon cable can be ordered under the ordering code IA10PIN10PIN127-
CUST. A cable length must be specified at the order. Note that the optional length should be
reasonable (e.g. 10 cm) since the quality of electrical signals degrades with prolonging the
cable. iSYSTEM gives no assurance for BlueBox operation with this cable. The cable is meant to
be used only for boundary cases where BlueBox cannot be connected to the target hardware
through the standard debug adapter, for example due to the physical obstacles of the target
system. In such cases, operating the BlueBox at lower JTAG scan speeds and not using the trace
functionality at all, might be still an acceptable compromise. It’s up to the user to thoroughly
test and qualify the BlueBox operation using custom length ribbon cable and to determine
working winIDEA
TM
settings for his system.
