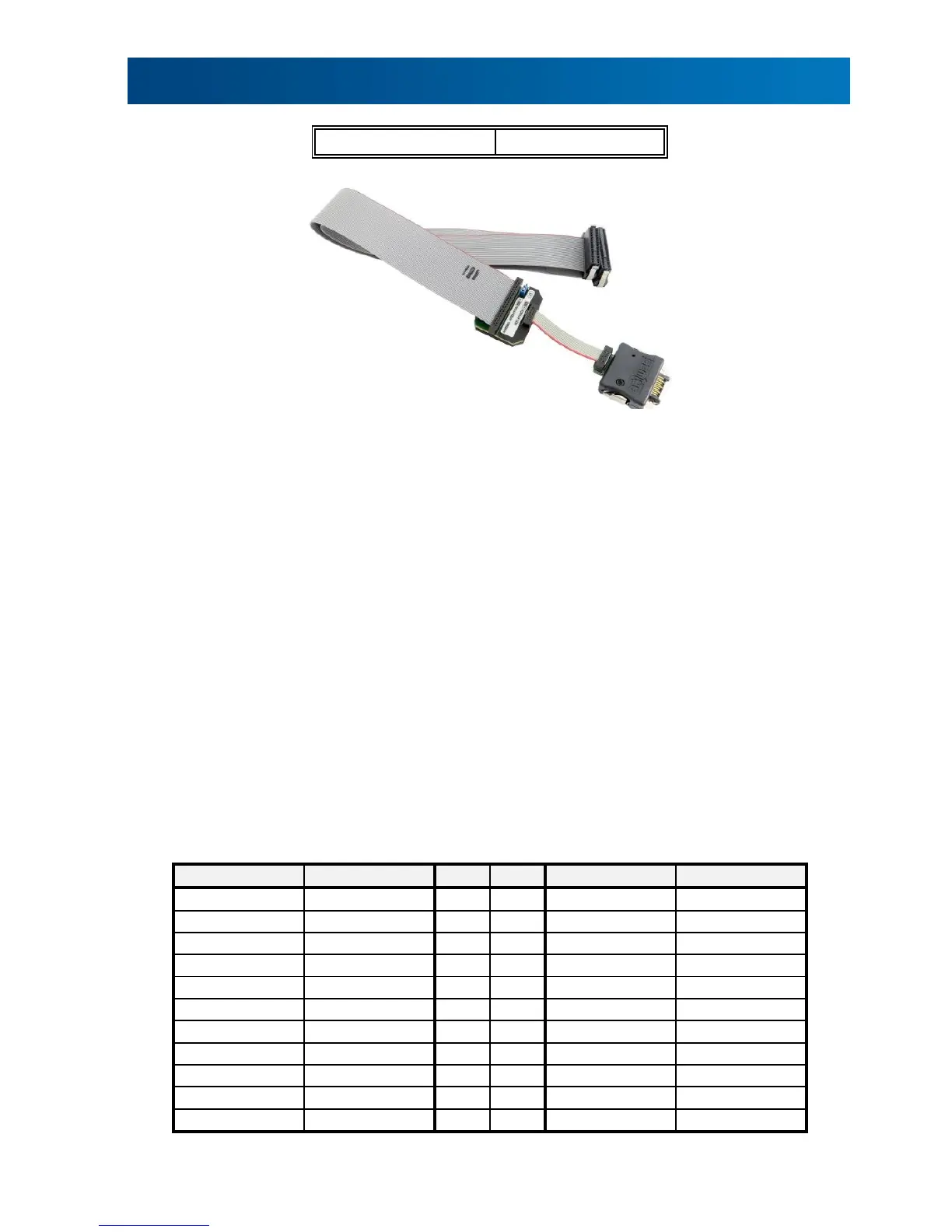

22-pin ERF8 DAP2 Debug Adapter
Ordering code
IC50164
This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Infineon Aurix
based target providing Aurora trace interface along the DAP debug interface and featuring a
22-pin Samtec ERF8 target debug connector with the 22-pin ERF8 Aurix target pinout.
The debug adapter connects to the BlueBox through the two ribbon cables and to the target
debug connector on the other side. Refer to the BlueBox User Manual for more details on
connecting the debug adapter.
With the jumper J1 in the position 1-2 (default), normal debug operation is configured. The
debugger drives the MCU reset line low during the initial debug connection and then takes
control over the microcontroller.
With the jumper J1 in the position 2-3, the Hot Attach operation is configured. In this case, all
debug signals from the BlueBox are disconnected and the target starts running as soon as the
power is applied to the target. When the Hot Attach command is issued from winIDEA
TM
, the
debugger connects to the MCU and control over the MCU is taken without resetting the MCU.
Refer to the TriCore technical notes document for more details on the Hot Attach configuration
and use.
The following pinout is valid on the target side:
Signal direction
Signal
Pin
Pin
Signal
Signal direction
Not Connected
1
2
Vref
I
Not Connected
3
4
DAP0
O
Ground
GND
5
6
DAP1
I/O
Not Connected
7
8
Not Connected
Not Connected
9
10
DAP2
I/O
Ground
GND
11
12
~TRST
O
Not Connected
13
14
Not Connected
Not Connected
15
16
Not Connected
Ground
GND
17
18
Not Connected
Not Connected
19
20
Not Connected
Not Connected
21
22
RESET
I/O
22-pin ERF8 Aurix target pinout
