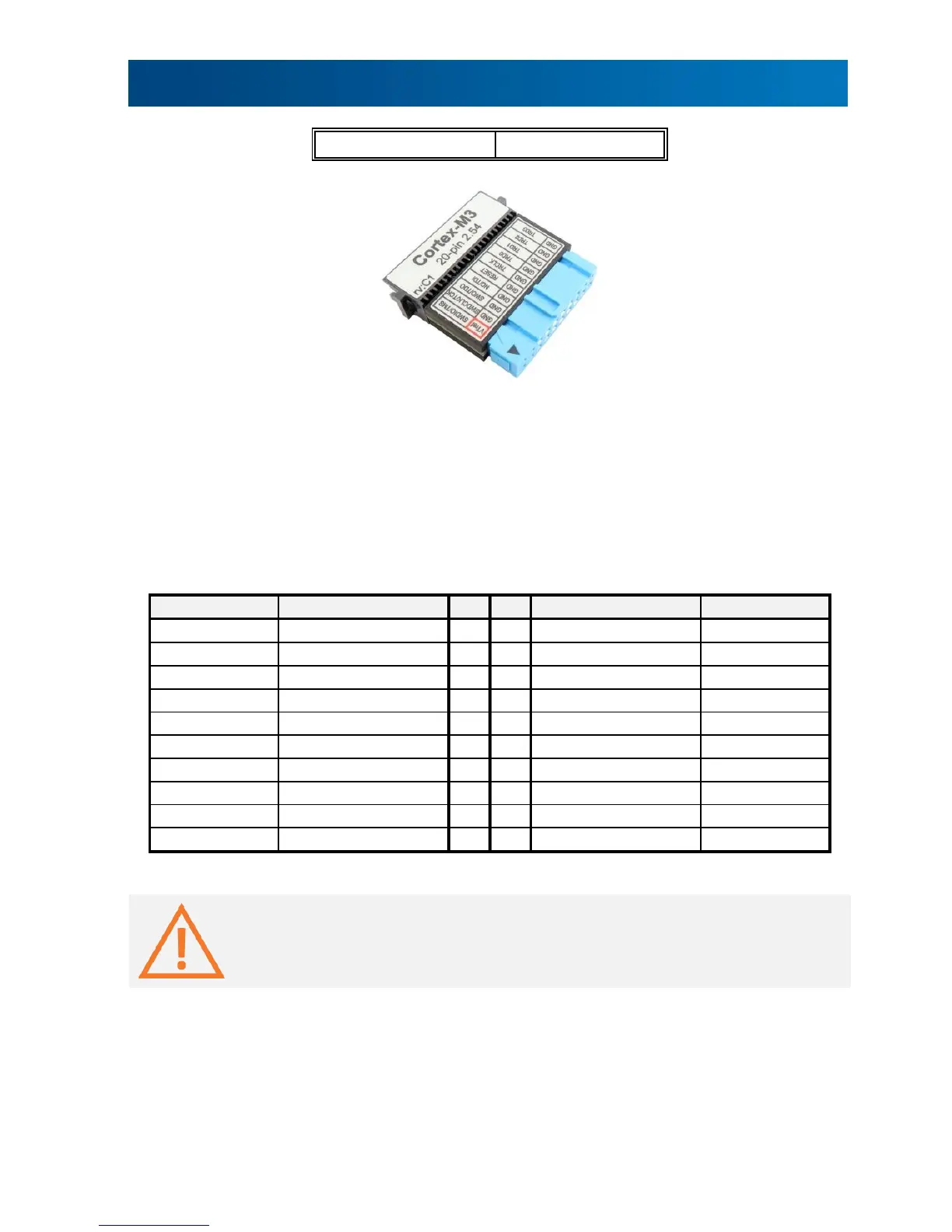

20-pin 2.54mm Cortex Debug Adapter
Ordering code
IC50111-2
This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to the Cortex-M
based target. It’s used to connect to the embedded target featuring a 20-pin 2.54 mm pitch
target debug connector with the ARM pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more
details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal direction
Signal
Pin
Pin
Signal
Signal direction
I
VTref
1
2
SWDIO/TMS
I/O
GND
3
4
SWCLK/TCK
O
GND
5
6
SWO/TDO
I
GND
7
8
NC/TDI
O
GND
9
10
nSRST
I/O
GND
11
12
TRCLK
I
GND
13
14
TRD0
I
GND
15
16
TRD1
I
GND
17
18
TRD2
I
I
GND
19
20
TRD3
I
20-pin Cortex-M pinout
When connecting the BlueBox to the new embedded target for the first time, double
check that the debug adapter pinout matches with the target debug connector. Note
that a mismatch can result in a hardware failure.
The debug adapter features resettable fuses on pins 1, 2, 4, 6, 8 and 10. These protect debug
signals against overcurrent. These fuses cycle back to a conductive state after the excessive
current fades away.
The debug adapter connects to the target via a 20-pin 2.54 mm connector, for example
Yamaichi FAS-2001-2101-2-0BF. A target should feature a matching part, for example WÜRTH
ELEKTRONIK: 612 020 216 21.
