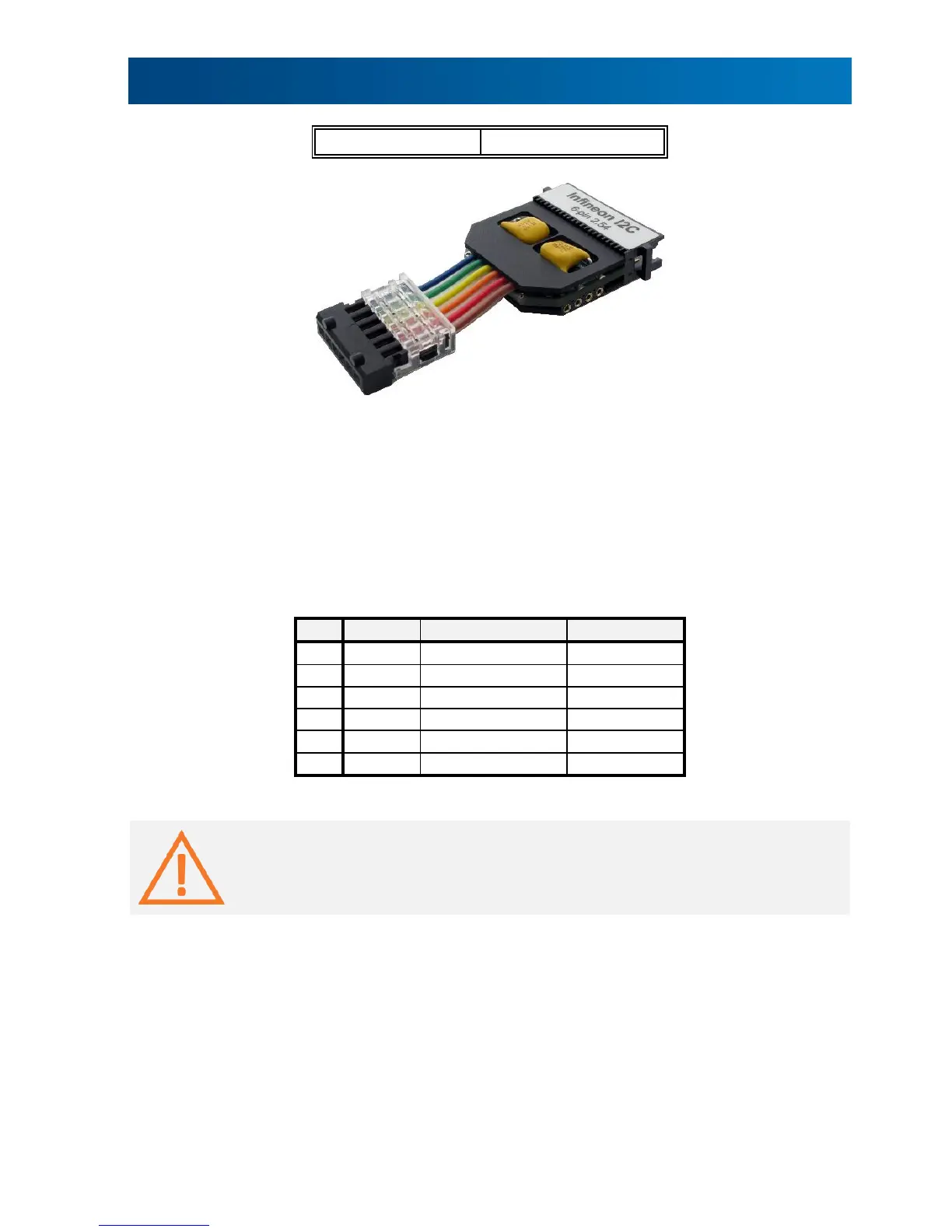

This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Infineon
SP37/SP40 based target featuring a 6-pin 2.54mm pitch target debug connector with Infineon
I2C pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more
details on connecting the debug adapter.
The following pinout is valid on the target side:
When connecting the BlueBox to the new embedded target for the first time, double
check that the debug adapter pinout matches with the target debug connector. Note
that a mismatch can result in a hardware failure.
6-pin 2.54mm Infineon I2C Debug Adapter features resettable fuses on pins 1, 2, 3, 4, 5 and 6.
These fuses protect debug signals against overcurrent and cycle back to a conductive state
after the excessive current fades away.
Emulation Notes
The MCU can run in normal, debug or programming mode. Mode is always selected after
power-on and cannot be changed later. Because of this the VDDBAT (pin 1 on the debug
connector) is a power supply output from the emulator and the target power supply (battery)
must be removed while debugging. Before the debug download takes place, power off/on
sequence is generated by the emulator and programming mode selected. During the debug
