iSystem iC5000 User Manual

49

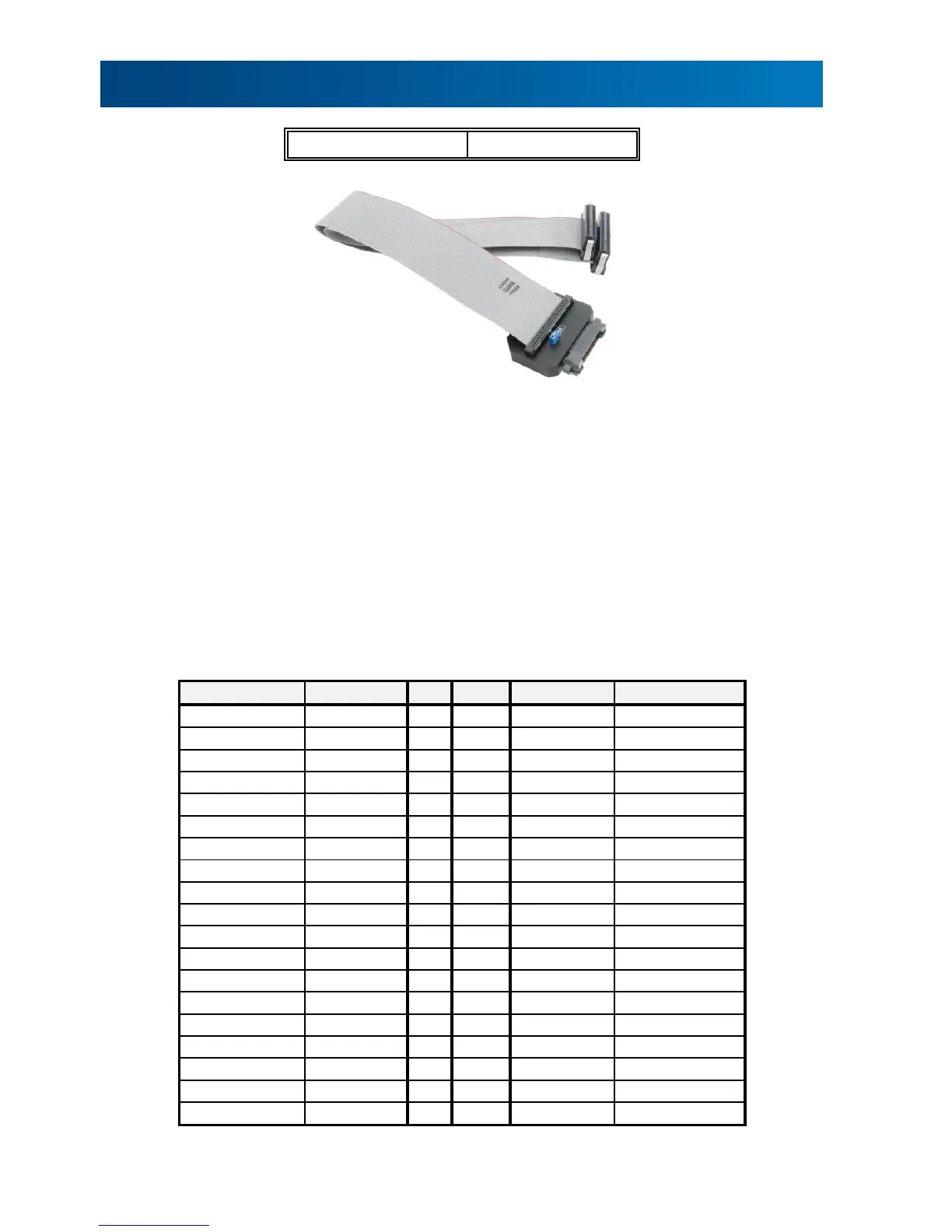

38-pin Mictor RH850 Nexus 16-bit D. Adapter
Ordering code
IC50177
This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas RH850
based target featuring a 38-pin Mictor target debug connector with the RH850/F1H Nexus
pinout.
The debug adapter connects to the BlueBox through the two ribbon cables and to the target
debug connector on the other side. Refer to the BlueBox User Manual for more details on
connecting the debug adapter.
Jumper J1
The jumper J1 on the debug adapter is used to isolate (jumper removed) the target
microcontroller EVTI input pin from the debugger, which can optionally control it too.
The following pinout is valid on the target side:
Signal direction
Signal
Pin
Pin
Signal
Signal direction
I
MDO12
1
2
MDO13
I
I
MDO14
3
4
MDO15
I
I
MDO9
5
6
NC
NC
7
8
MDO8
I
O
NRESET
9
10
EVTI
O
I
TDO
11
12
VTREF
I
I
MDO10
13
14
~RDY
I
O
TCK
15
16
MDO7
I
O
TMS
17
18
MDO6
I
O
TDI
19
20
MDO5
I
O
TRST
21
22
MDO4
I
I
MDO11
23
24
MDO3
I
NC
25
26
MDO2
I
NC
27
28
MDO1
I
NC
29
30
MDO0
I
NC
31
32
EVTO
I
NC
33
34
MCKO
I
NC
35
36
MSEO1
I
O
FLMD0
37
38
MSEO0
I
RH850/F1H 16-bit Nexus target pinout
