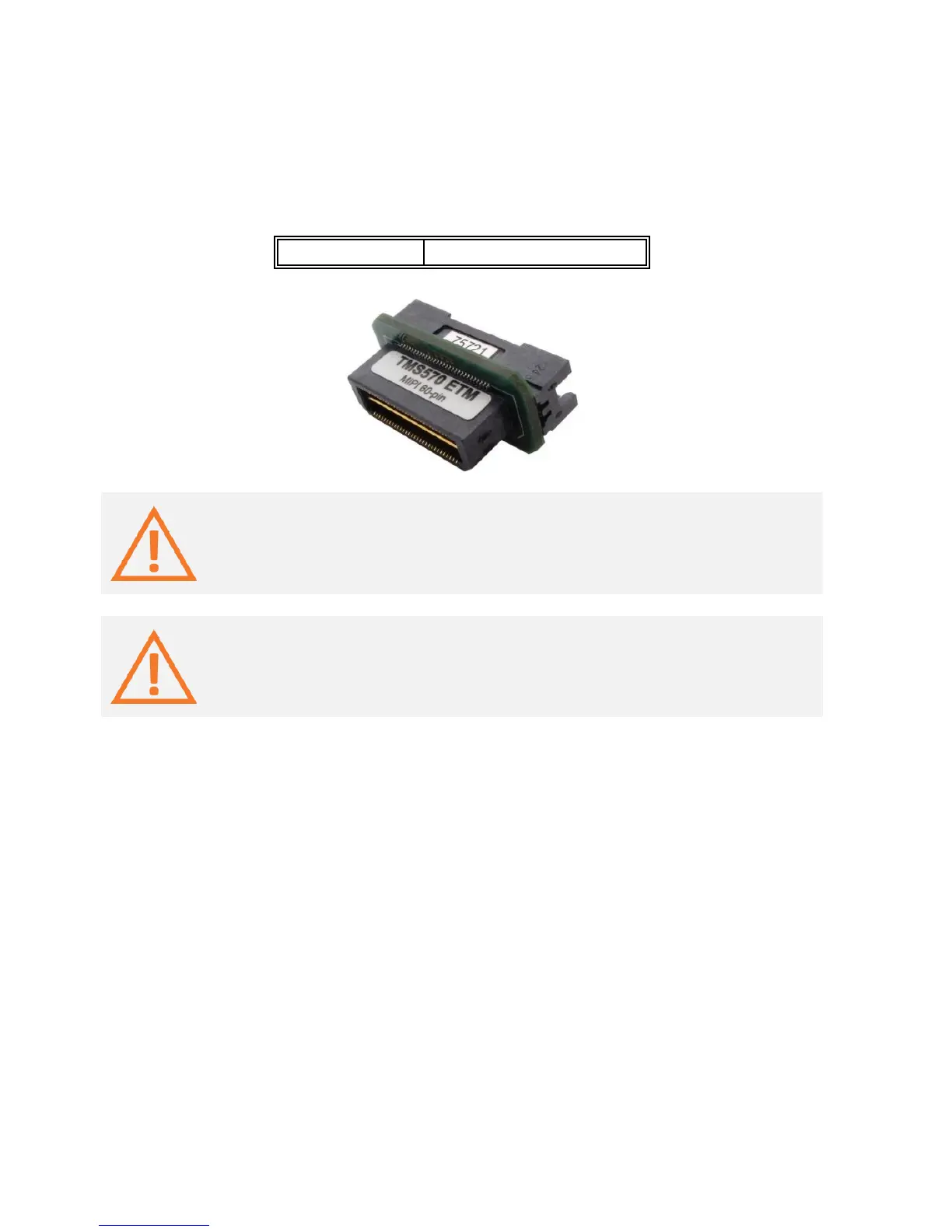

Texas Instruments 60-pin MIPI Adapter
Embedded targets based on Texas Instruments (TI) TMS570 microcontroller can feature Texas
Instruments 60-pin MIPI target debug connector with the TI proprietary pinout.
An adapter connecting at the end of the Mictor 38-pin ARM ETM 16-bit Debug Adapter is
available for Texas Instruments 60-pin MIPI pinout and must be ordered separately under the
IAMIC38MIPI60TMS570 ordering code.
Ordering code
IAMIC38MIPI60TMS570
The iC5000 and the iC5700 can trace up to 16 trace data lines. The target
microcontroller has to be configured for 16-bit trace port operation if the target
features 60-pin MIPI connector with 32 data trace lines connected.
Note that signal naming in iSYSTEM documentation uses target signal names and not
the ones from the MIPI standard. Refer to ‘MIPI Alliance Recommendation for Debug
and Trace Connectors’ and ‘ARM Target Interface Connections’ documentation for more
information about signal names and their functions.
The debug adapter connects to the target via a 60-pin MIPI connector, for example Samtec
QTH-030-01-L-D-A. A target should feature a matching part, for example Samtec QSH-030-01-L-
D-A.
