iSystem iC5000 User Manual

45

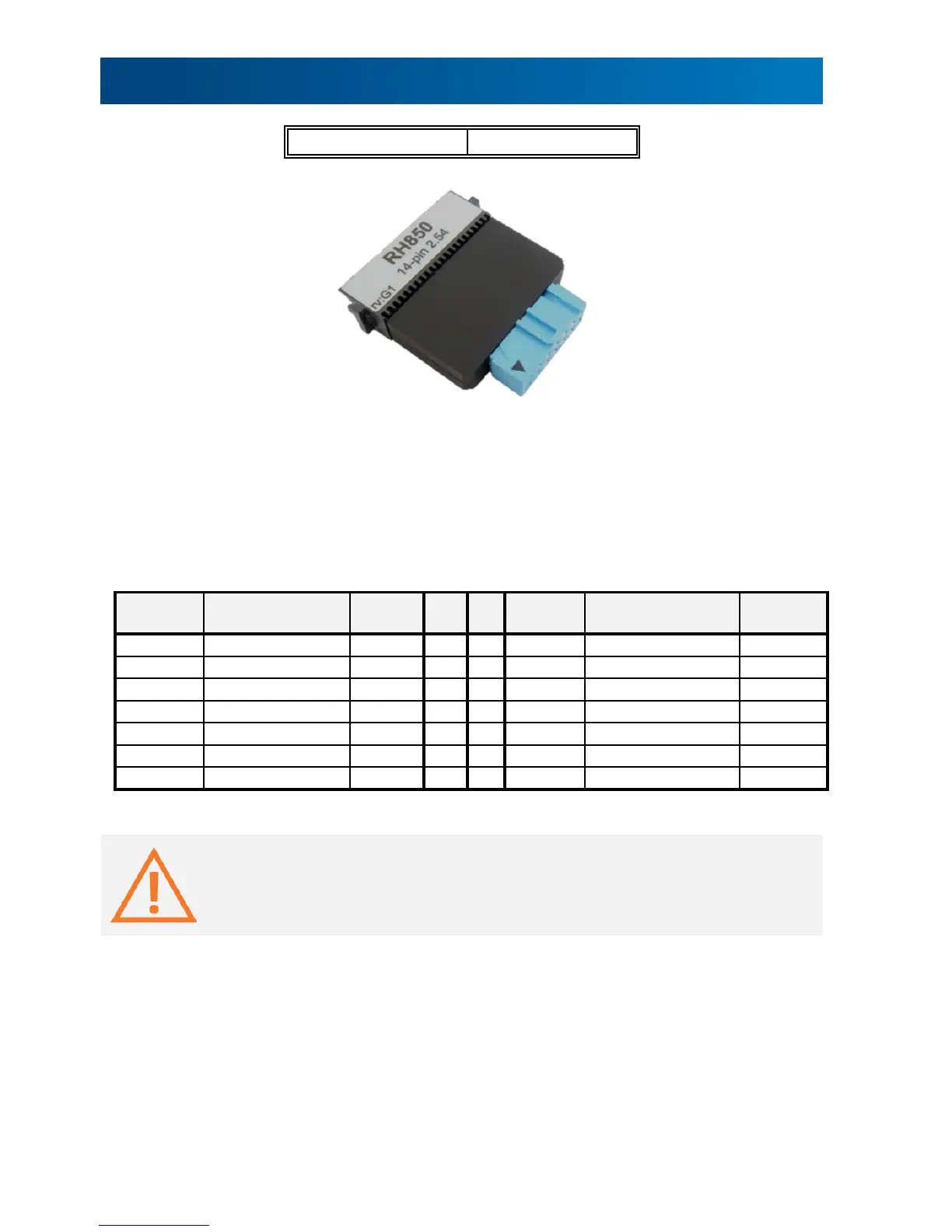

14-pin 2.54mm Renesas RH850 Debug Adapter
Ordering code
IC50176
This debug adapter is used to connect the iC5000 and the iC5700 BlueBox to Renesas RH850
based target featuring a 14-pin 2.54 mm pitch target debug connector with the RH850 pinout.
The debug adapter connects to the 25cm 40-pin ribbon cable coming from the BlueBox and to
the target debug connector on the other side. Refer to the BlueBox User Manual for more
details on connecting the debug adapter.
The following pinout is valid on the target side:
Signal
direction
Signal description
Signal
Pin
Pin
Signal
Signal description
Signal
direction
O
Debug JTAG
TCK
1
2
GND
Ground
O
Debug JTAG
TRST
3
4
FLMD0
Flash Mode
O
I
Debug JTAG
TDO
5
6
FLMD1
Flash Mode
O
O
Debug JTAG
TDI
7
8
VTREF
Reference voltage
I
O
Debug JTAG
TMS
9
10
NC
Not Connected
I
Synchronization
~RDY
11
12
GND
Ground
I/O
CPU Reset
RESET
13
14
GND
Ground
14-pin RH850 target pinout
When connecting the BlueBox to the new embedded target for the first time, double
check that the debug adapter pinout matches with the target debug connector. Note
that a mismatch can result in a hardware failure.
14-pin 2.54mm RH850 Debug Adapter features resettable fuses on all pins except for pin 11.
These fuses protect debug signals against overcurrent and cycle back to a conductive state
after the excessive current fades away. A signal on pin 11 is protected via 22 ohm serial
resistor.
The debug adapter connects to the target via a 14-pin 2.54 mm connector, Yamaichi FAS-1401-
2101-2-OBF. A target should feature a matching part, for example WÜRTH ELEKTRONIK
61201421621.
