Starting Configuration Manager

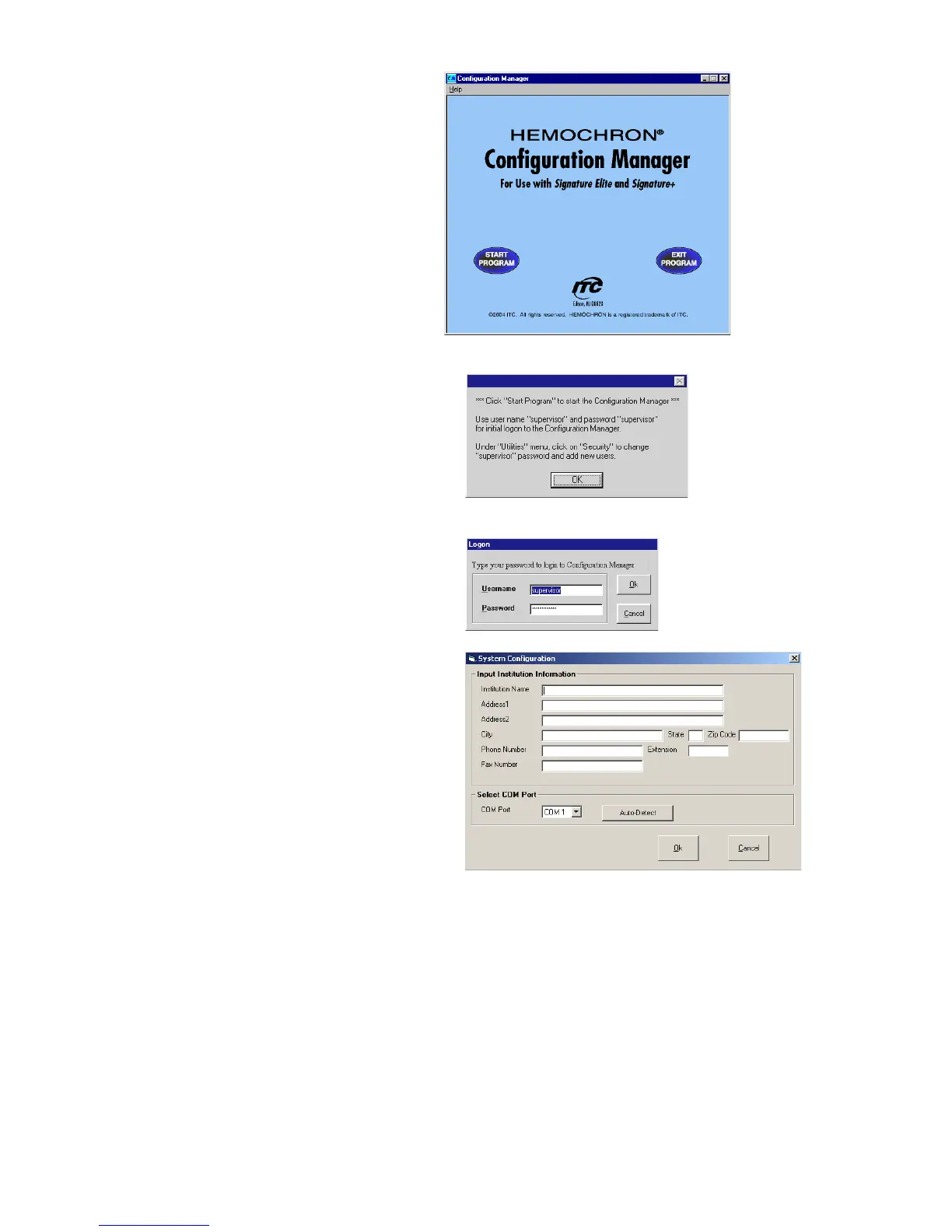

1. Select the ITC CM program icon. The Startup window is displayed:

2. When HEMOCHRON Configuration Manager software is run for the first time, instructions are

displayed to logon using the default user name and password:

a. Click OK and then click Start Program. The Logon dialog box is displayed with the default user

name (supervisor) and password (supervisor):

b. Click OK. The System Configuration dialog box is displayed:
