CHASSIS MODIFICATIONS
2-83
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power
El ectr i cal Sys tem: Modi fi cati ons and Dr awi ng- --Of f Powe r
2.20 Rear mudguards and wheel boxes
When vehicles are supplied without mudguards, the bodybuilder must fit them using similar
installations as u sed by IVECO on similar vehicles. In making the mudguards, wheel arches, as well as t he shape of the body, bear
in mind that:
- Ensure the wheels can turn even in the full bump condition with snow chains fitted, in compliance with the limits shown in the
documentation supplied by IVECO.
- The maximum width of the vehicle over the tyres must comply with the legal limits.
- The supporting stru cture sh ould be sufficiently stron g enough , avoiding any sudden variation in section .
- The connection can be made to the vertical web of the vehicle’s side members or to the longitudinal sections of the subframe.
In the first case, the connection must be made solely with screws, or directly under the superstructure (e.g., body, van, etc.), (refer
to Figure 2.53).
The instructions given in the first two steps shall also be followed when wheelboxes have to be executed.

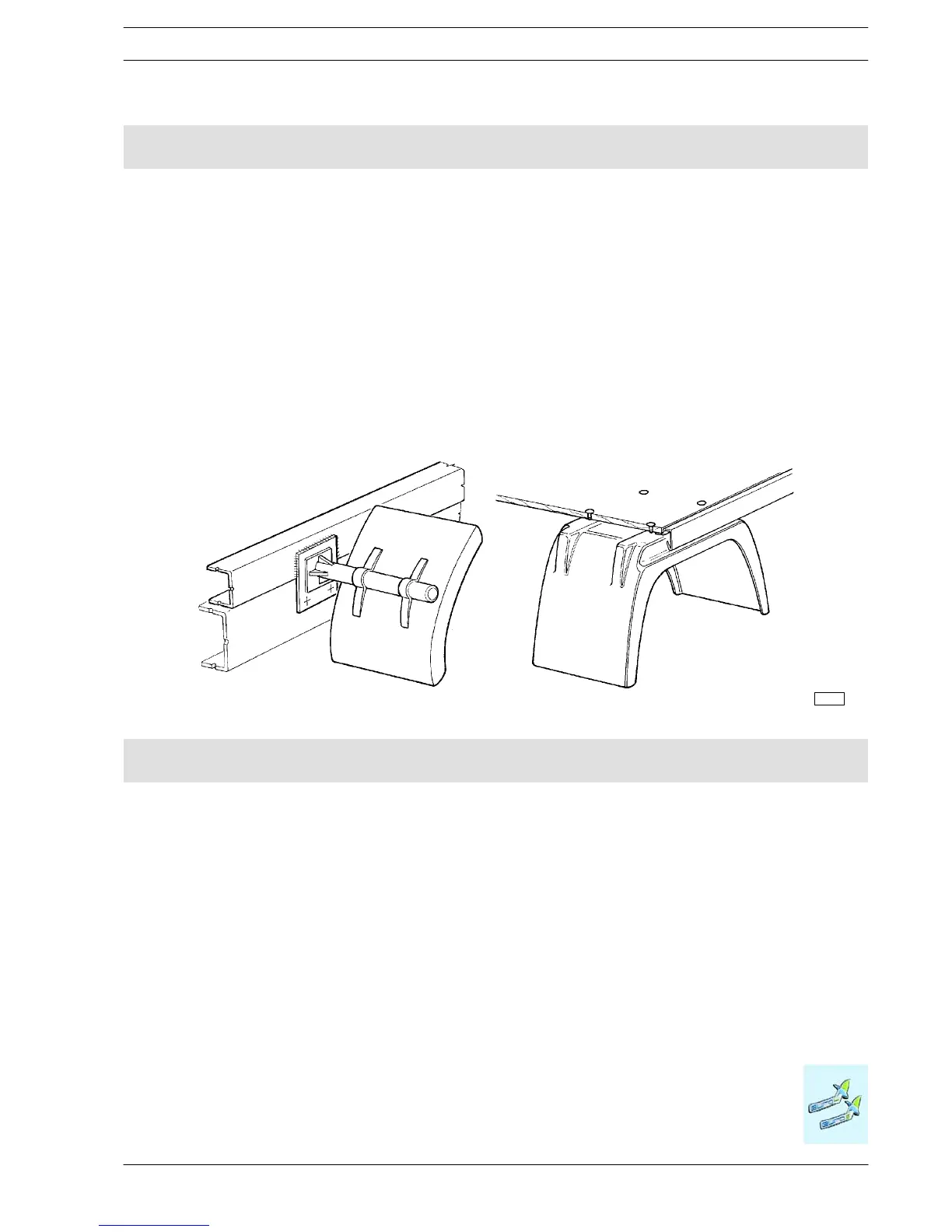

Figure 2.53
91472
2.21 Mudflaps
If legally required, un less already fitted ex-factory, the bodybuilder must ensure that the complete vehicle is fitted with mud flaps.
When fitting these all regulations (e.g. dimensional etc) must be complied with.
