2-44
CHASSIS MODIFICATIONS
D
AILY 4x4
Base - May 2007 Print 603.93.761
Changing the Size of the Tyres

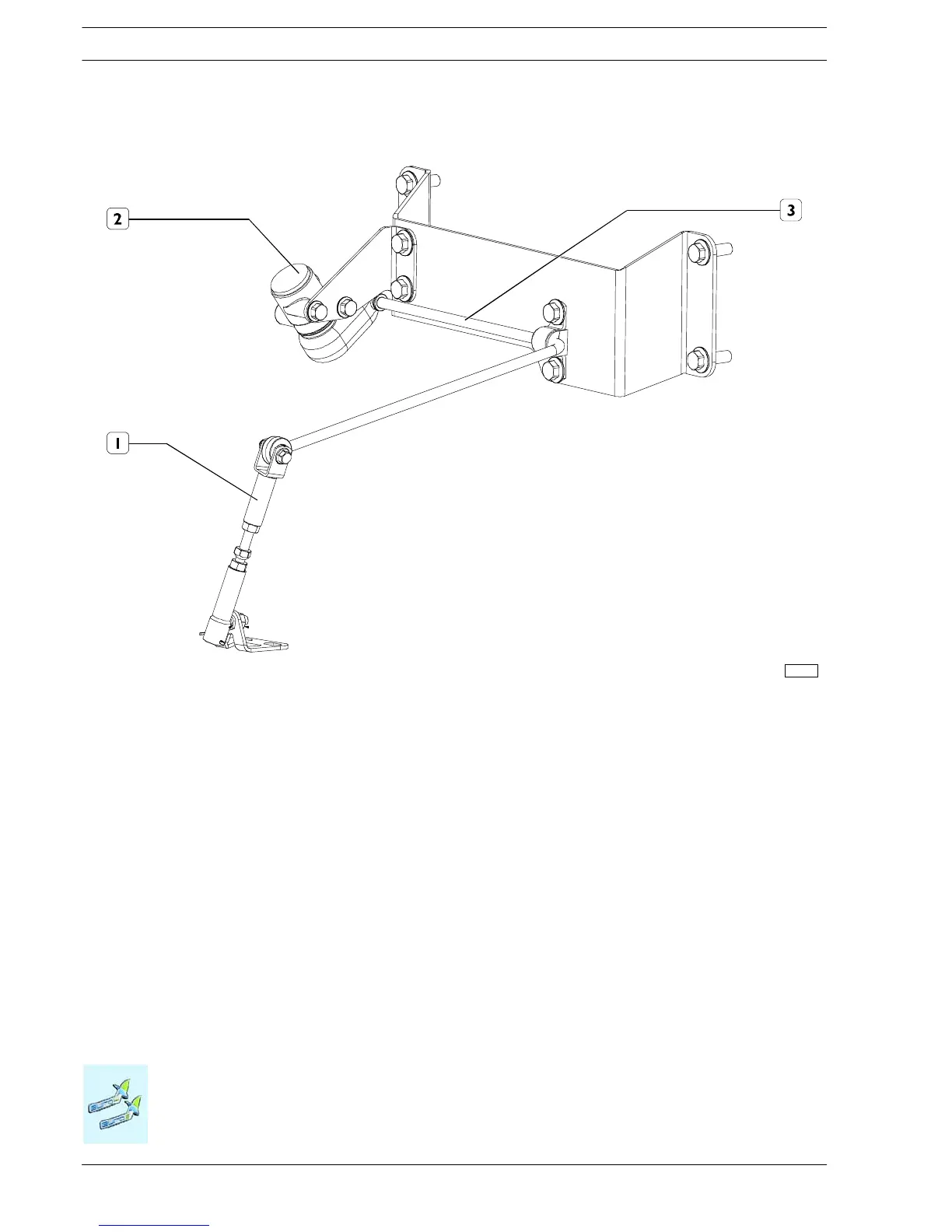

Figure 2.14
119381
1. Control link - 2. Load proportioning valve - 3. Torsion bar
- Load the rear axle to th e values shown in Table 2.16. The weight must not be less than t he minimum value indicated by the
manufact urer (Figu re 2.16).
- Disconnect the control link (1) from the rear axle and raise through its travel. Ensure that the load proportioning valve pushrod
slides properly in its seat and reconnect the link.
- Start the engine.
- Fully depress the brake pedal and use a feeler gauge to check that the adjustment clearance (0.1 mm) between the load propor-
tioning valve pushrod and the bar is respect ed.
