CHASSIS MODIFICATIONS
2-45
DAILY 4x4
Print 603.93.761 Base - May 2007
Changing the Size of the Tyres

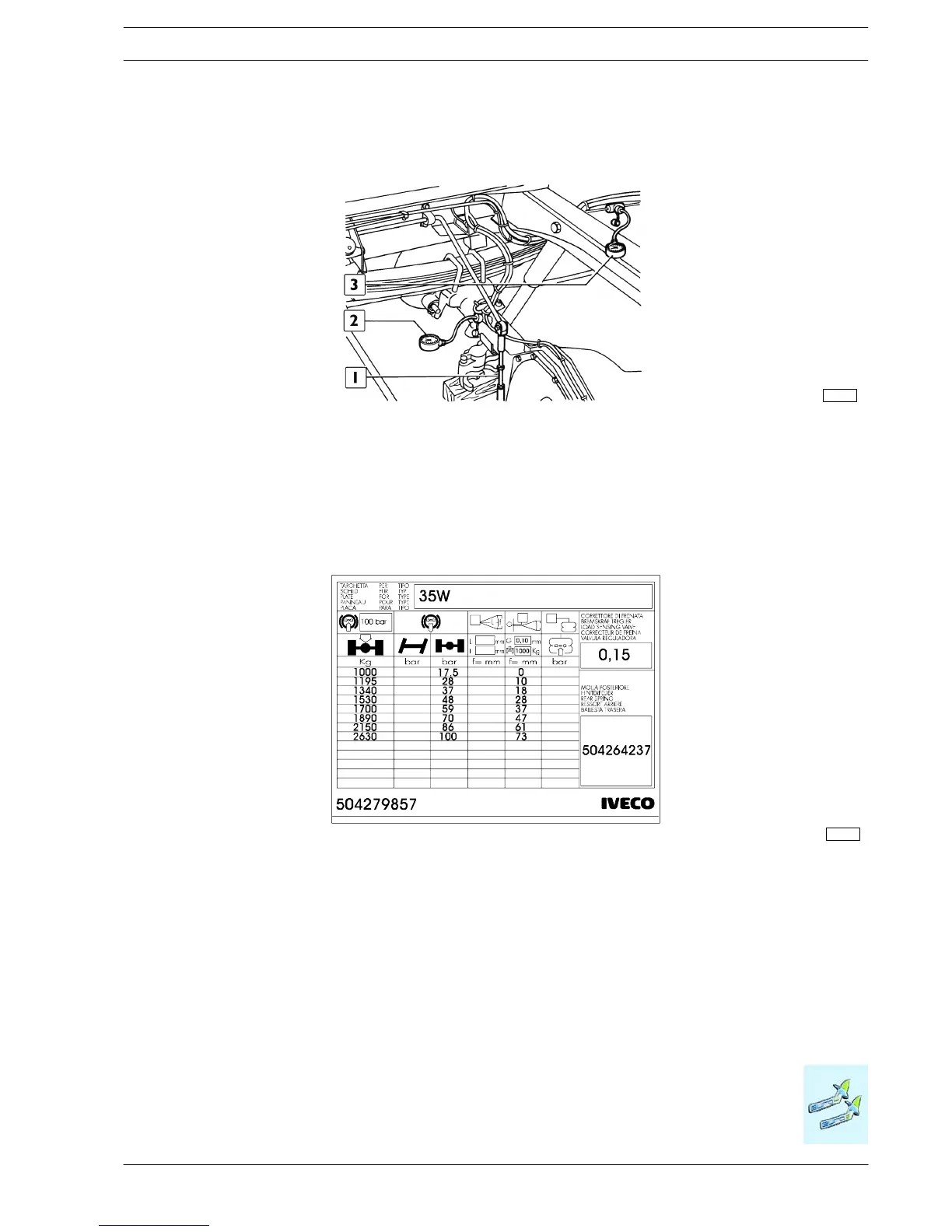

Figure 2.15 (Demonstration)
45025
- Connect pressure gauge (3) t o the pressure point upstream of t he load proportion ing valve.
- Connect pressure gauge (2) to the pressure point downstream of the load proportioning valve.
- If the pressure gauges are not equipped with automatic bleed valves, bleed them manually by means of the rings on the pressure
gauges.
Figure 2.16
119382
SINGLE CIRCUIT MECHANICAL LOAD PROPORTIONING VALVE PLATE (triple leaf spring )
- With the engine idling, gradually press the brake pedal to obtain a pressure of 100 bars on the pressure gauge (3, Figure 2.15)
fitted upstream of the load proportioning valve. This pressure must be constant whether the vehicle is laden or unladen.
- Check that the pressure reading on the pressure gauge (2, Figure 2.15) fitted downstream o f the load proportioning valve co rre-
sponds to the values on the plate (Figure 2.16). For example, with a load of 1000 kg on the rear axle, w i th an upstream pressure
of 100 bars and pushrod-bar clearance of 0.1 mm, the downstream pressure must be 17.5 bars.
- If t he pressure downstream of the load proportioning valve is different, adjust the contro l lin k (1, Figure 2.14) t o rest ore it to
the correc t values.
- For more ac curate adjustments, repeat the tests for s everal rear axle load values (Figure 2.16).
