CHASSIS MODIFICATIONS
2-71
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power

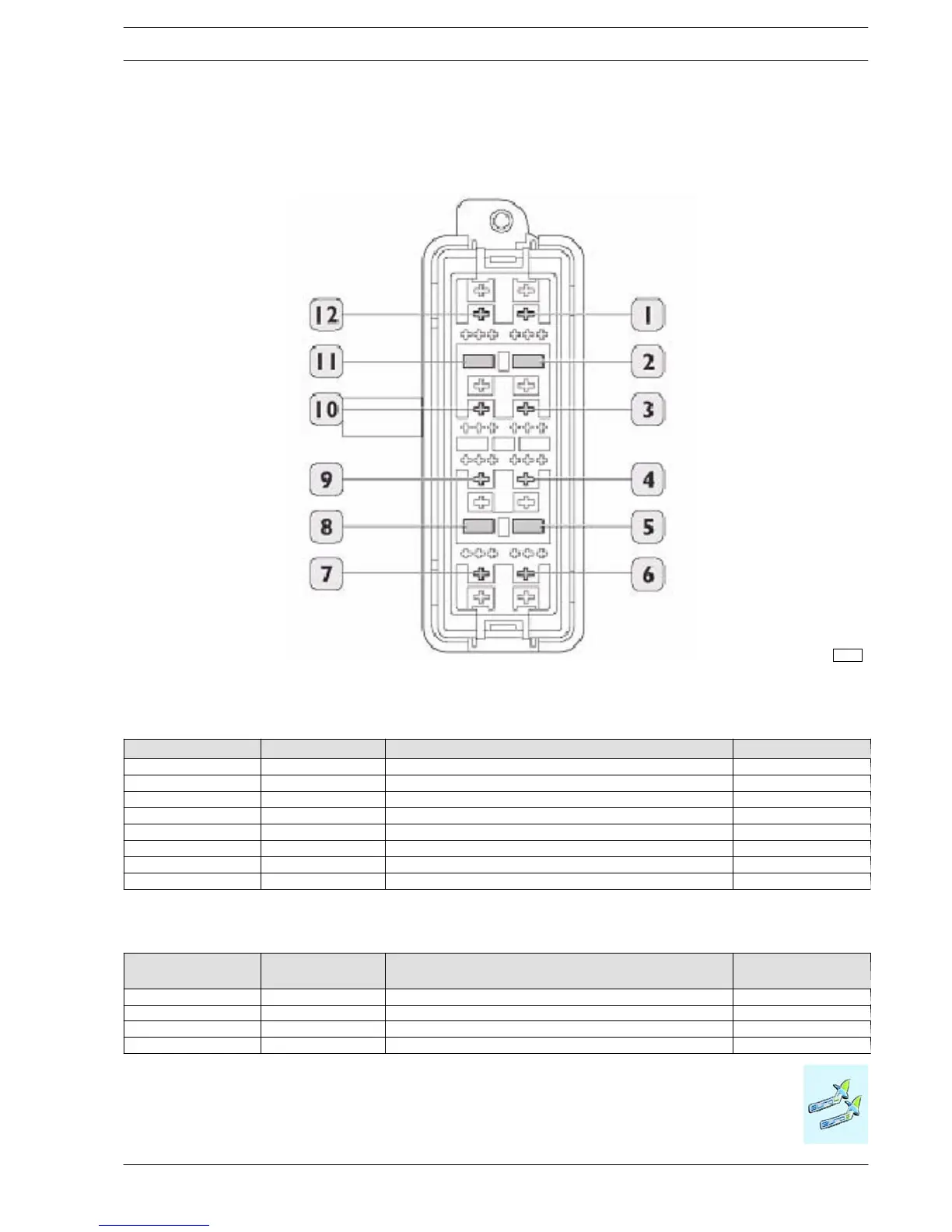

Optional fuse box (engine compartment)
Figure 2.41
114080
Table 2.23
Relay Drawing ref. Utilization Rated output
T04 1 Rotary lights 20 A
T16 12 Working lights 10 A
T15 3 Free -
T22 4 Air conditioning compressor actuation 20 A
T18 6 Baruffali cut-out 20 A
T24 7 Power takeoff actuation enable 20 A
T23 9 Air conditioning compressor 20 A
T21 10 Compressor ON signal fro EDC 16 20 A
Table 2.24
Not incl. in
control unit
Drawing ref. Utilization Rated output
F-55 2 Rotary lights 10 A
F-25 5 Trailer connector 10 A
F-28 8 APU power supply 15 A
F-27 11 Working lights 10 A
