2-72
CHASSIS MODIFICATIONS
D
AILY 4x4
Base - May 2007 Print 603.93.761
Electrical System: Modifications and Drawing-Off Power

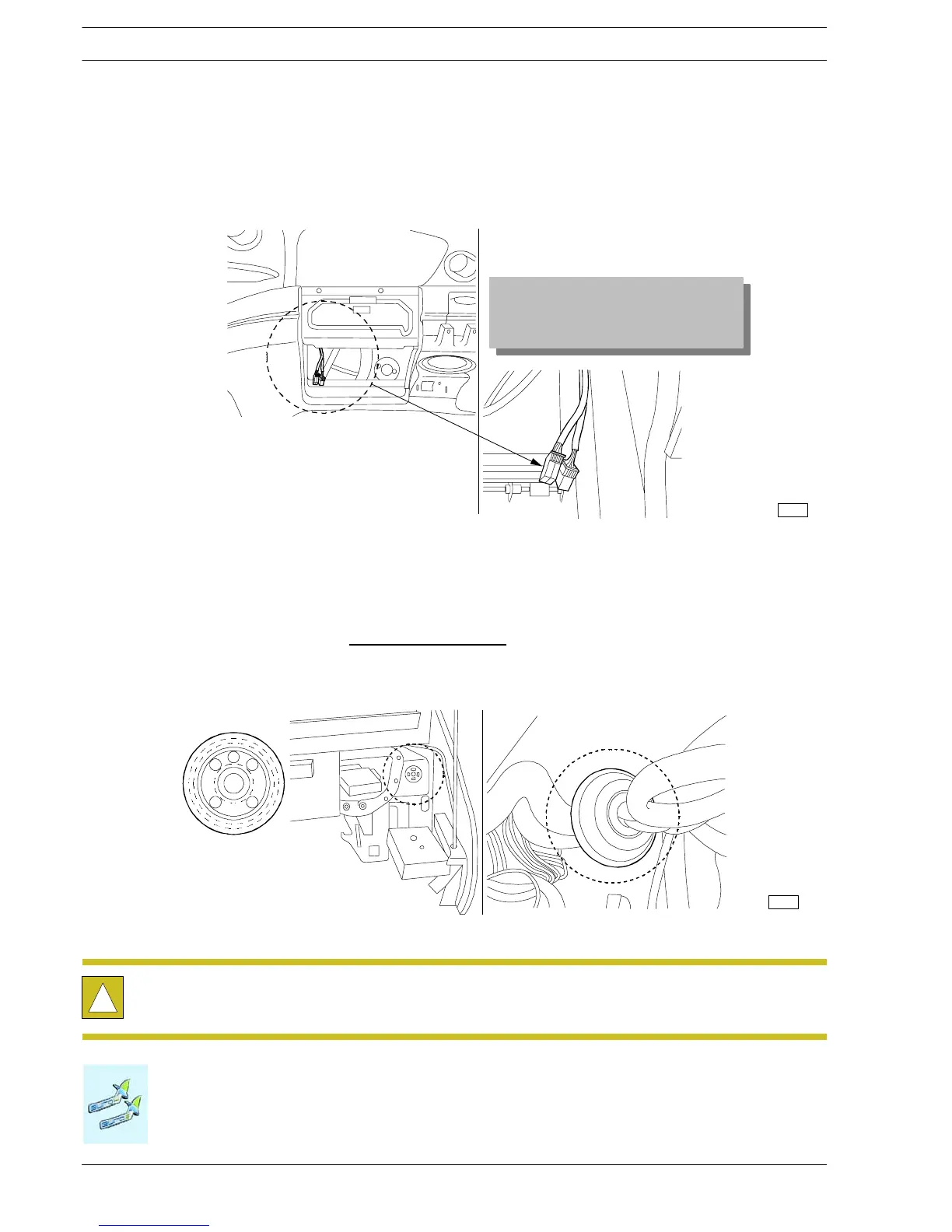

Body builders’ connectors (cab interior)
The n ew Daily is fitted with two connectors to be used by body builders to in t erface with the vehic le electrical system.
119356
Figure 2.42
The connectors are located behind
the passenger side compartment
in an easily accessible area.
Passing cables from inside the cab to outside
Electric cables may be passed from outside the cab to the engine compartment through five 10 mm diameter holes stamped
in the bulkhead coupling near the brake servo. Seal the cable routing point
to prevent fumes passing from the engine compartment
to the cabin.
Figure 2.43
119355
!
Any damage caused by failure to comply with procedure is not covered by the warranty.
