CHASSIS MODIFICATIONS
2-73
DAILY 4x4
Print 603.93.761 Base - May 2007
Electrical System: Modifications and Drawing-Off Power
Maxifuse and megafuse fuses
Fuse holder are available at the IVECO shops, to protect high-absorption current drawing.
They shall be positioned (as near the battery drawing terminal as possible) by th e body builder depending on the space available
on th e vehicle.

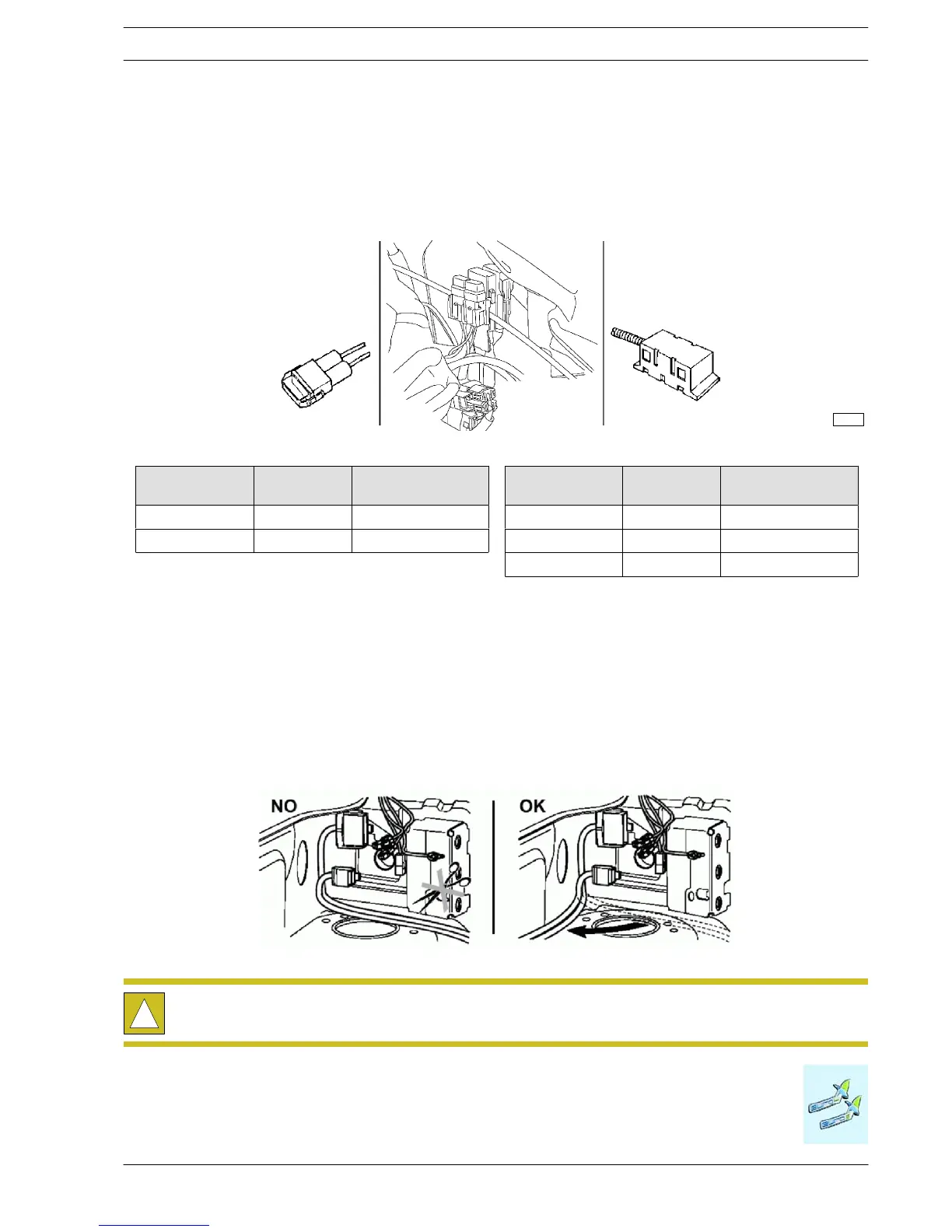

Figure 2.44
119357
Capacity IVECO ref.
no.
Cable section Capacity IVECO ref.
no.
Cable section
KIT 40A 4104 0110 KZ 10 mm
2
KIT 100A 4104 0112 KZ 25 mm
2
KIT 60A 4104 0111 KZ 10 mm
2
KIT 125A 4104 0113 KZ 35 mm
2
KIT 150A 4104 0114 KZ 50 mm
2
It should be pointed out that the current intensity shall, when grouping several cables, be reduced compared with t he rated value
of one single cable in order to compensate for smaller heat dispersion.
As regards the vehicles the engines of which are frequently started, in the presence of current drawing and short engine rotation
time (e.g. vehicl es equipped with refrigerating bodies), the battery shall be recharged at regular intervals in order to ensure efficiency
of the same.
The c onnections with plugs and terminals shall be of the protected, weather-proof type. Components of the same type as the one
originally fitted to the vehicle shall be u sed.
In the event that units and assemblies (various components, etc.) need be relocated due to special body building or vehicle
conversion, such relocation shall be permitted providing:
In the event that a c omponent has be installed just next to the route of a cable belonging to the original system, or a cable route
needs be changed, the same can be relocated provided that its integrity is maintained (cuts shall not be made).
Figure 2.45
!
Any damage caused by the failure to comply with the procedure shall not be covered by the warranty.
The airbag system components must not be displaced or tampered with for any reason whatsoever.
