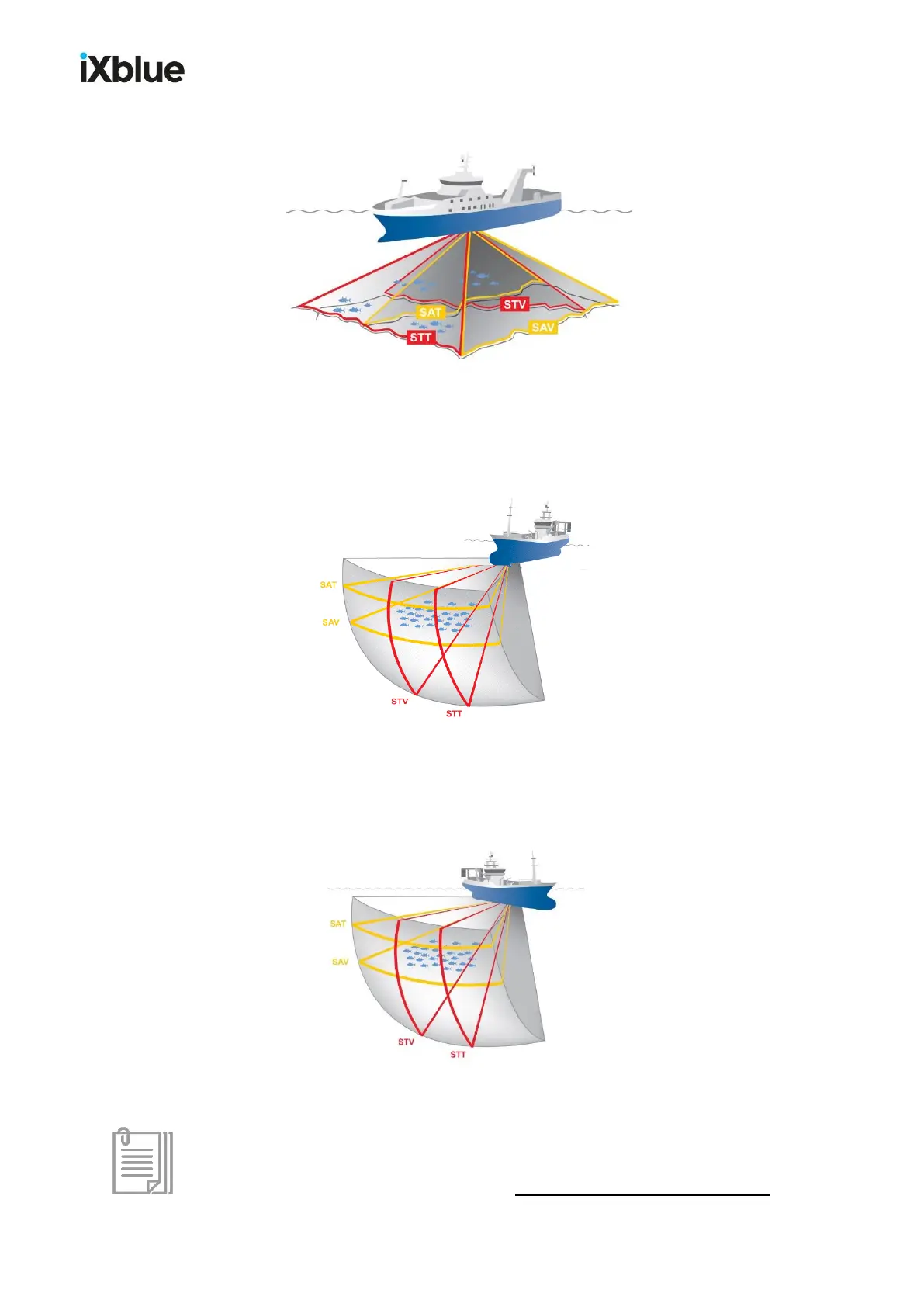

1.2.1 DOWNWARD-LOOKING SWATH
Downward-looking swath (axial & transverse)
1.2.2 FORWARD-LOOKING SWATH
Forward-looking swath (axial & transverse)
1.2.3 SIDE-LOOKING SWATH
Side-looking swath (axial & transverse)
Axial swaths correspond to SAT or SAV sonar modes.
Transverse swaths correspond to STT or STV sonar modes.
For explanation about sonar modes, see Toolbars & Buttons Standard Display.
