2.2 SeapiX-R
SeapiX-R is dedicated to fishery research and is installed on large fishery research vessels.

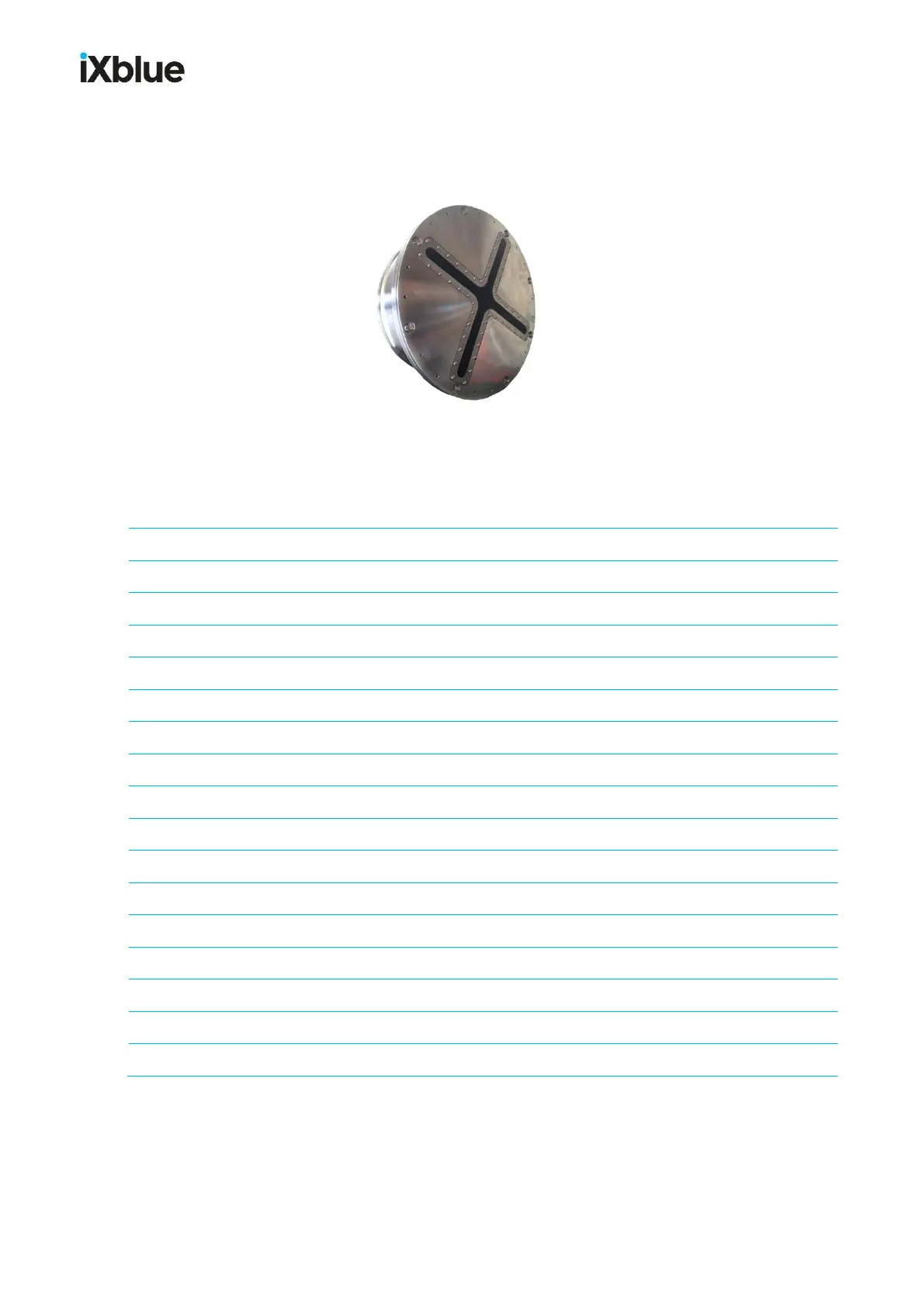

SeapiX-R SAU
Applications
Fishery research
Frequency
150 kHz
Modulation
CW and Chirp
Across-track multibeam swath
64 channels, stabilized
Along-track multibeam swath
64 channels, stabilized
Beam stabilization
TX + RX, built-in MRU
Beam resolution
1.6° angular / 7.5 cm radial
Triple echograms from all swaths
Adjustable from 1° to 120° each
Typical range
Biomass 400 m, Bathymetry 600 m
Volume resolution
0,6 m
3
@100 m
Volume coverage
120° X 120°
Signal processing
SV, TS, NORMALIZED
SED fish extraction
Up to 200.000 single fish detection
Transmission power
4 kW
Scientific pack
yes
Sonar Antenna Unit (SAU) cable
20 m
SAU weight
61.5 kg
