2 Technical Characteristics
Seapix is available in 3 versions:
• SeapiX-F for fishery
• SeapiX-R for fishery research
• SeapiX-L for marine science and fish farming
2.1 SeapiX-F
SeapiX-F is dedicated to the fish industry and is installed on fishery vessels.

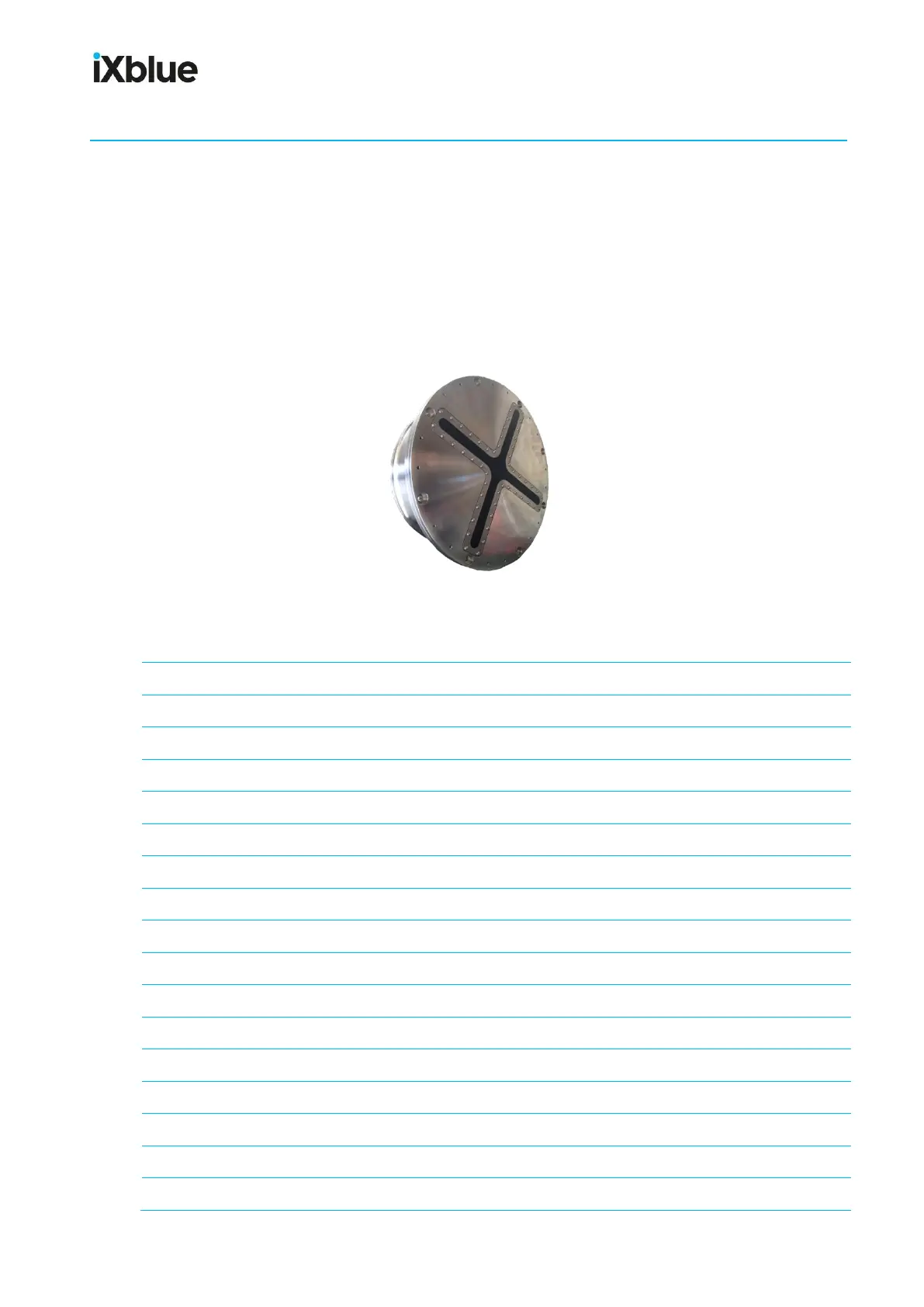

SeapiX-F SAU
Applications
Fishery
Frequency
150kHz
Modulation
CW and Chirp
Across-track multibeam swath
64 channels, stabilized
Along-track multibeam swath
64 channels, stabilized
Beam stabilization
TX + RX, built-in MRU
Beam resolution
1.6° angular / 7.5 cm radial
Triple echograms from all swaths
Adjustable from 1° to 120° each
Typical range
Biomass 400 m, Bathymetry 600 m
Volume resolution
0,6 m
3
@100 m
Volume coverage
120° X 120°
Signal processing
SV, TS, NORMALIZED
SED fish extraction
Up to 200.000 single fish detection
Transmission power
2 kW (4 kW as an option)
Scientific pack
(option)
Sonar Antenna Unit (SAU) cable
20 m
SAU weight
61.5 kg
