2.2.2 USING THE JA-110E AND JA-150E SYSTEM KEYPADS

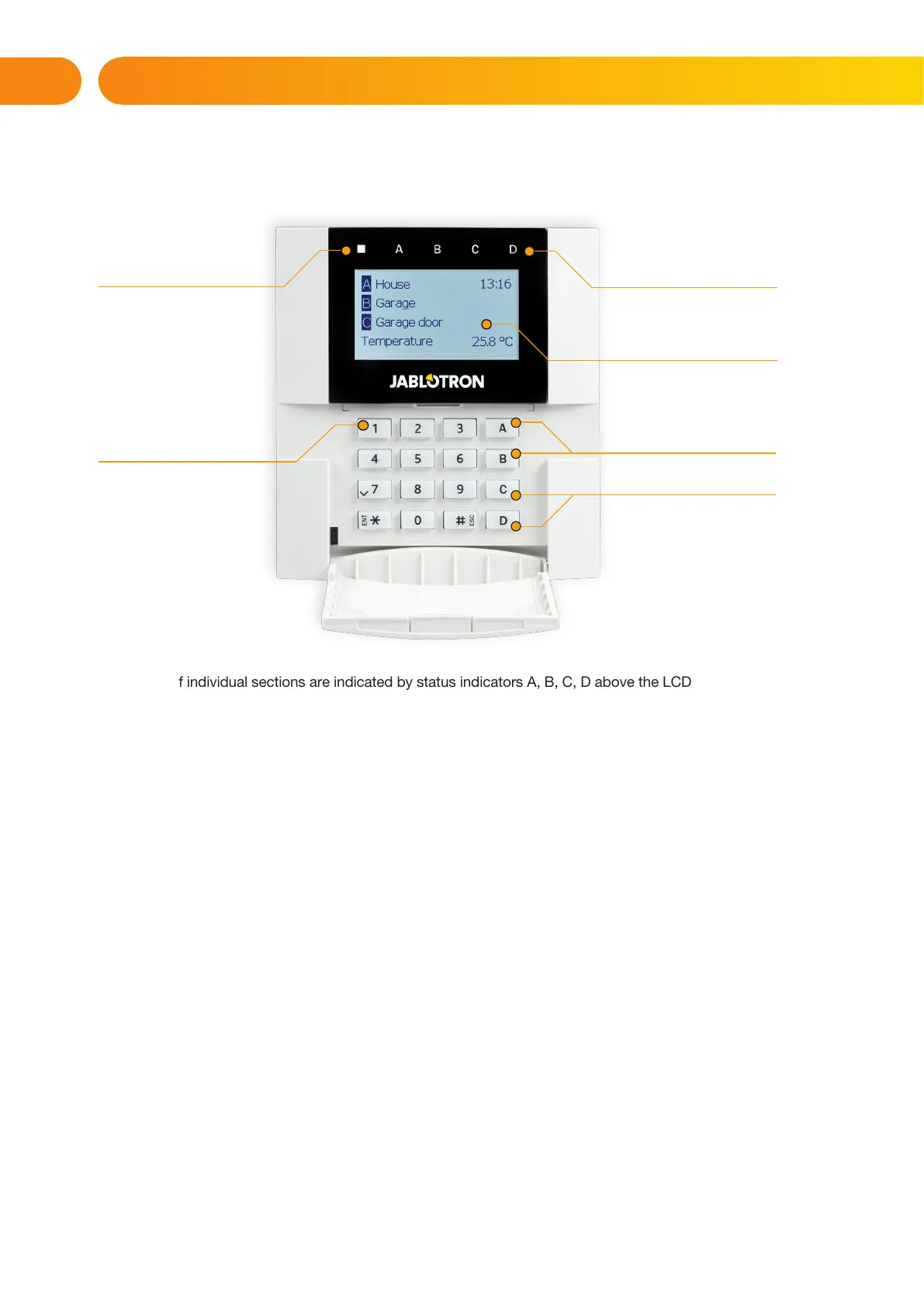

Statuses of individual sections are indicated by status indicators A, B, C, D above the LCD display and by the
functions buttons. The control panel can be operated directly (setting or unsetting the alarm and other automation
functions) using function buttons on the keypad. The function buttons and the status indicators
A, B, C, D are colourfully backlit in order to clearly indicate the section status.
a GREEN – Unset
a YELLOW – Partially Unset
a RED – Set
Authorization can be done by entering an access code on the keypad or using an RFID card/tag assigned to
a particular user. Each user can have one code and one RFID chip (a card or a tag).
If the users want to control multiple sections simultaneously, they must authorize themselves and then
press function buttons of the particular sections subsequently. This way the users can unset all sections
(for example the house and the garage) within one single authorization.
Status indicators
A, B, C, D
LCD display
Function buttons
A, B, C, D
System indicator
The keypad and the
RFID reader
2. OPERATING THE JABLOTRON 100 SYSTEM

jablotron 100 Specifications

General

Control Panel	JA-101K
Events Memory	Up to 1000 events
Certifications	EN 50131 Grade 2
System Type	Hybrid wireless/wired security system
Communication	GSM, LAN
Zones	Up to 120
Users	Up to 50 users
Outputs	Up to 32
Backup Battery	12V 7Ah (up to 24 hours)
Mobile App	MyJABLOTRON
Number of areas	Up to 15
Power Supply	230V AC
Wireless Range	Up to 300 meters (open area)
Compatibility	Jablotron 100 series components
