2.2.2.1 ALARM SETTING
While setting the alarm, if any detector is triggered (e.g. an open window) the system will react (based on the
system configuration) in one of the following ways:
o The control panel will set itself. Triggered detectors will be blocked automatically.*)
o The system will optically indicate triggered detectors with a function button flashing red for 8 seconds
and the control panel will set automatically once this period has expired (triggered detectors will be
blocked). *)
o Setting the section with triggered detectors is also possible by pressing the function button repea-
tedly. The user must confirm an intention to set the section with a triggered detector (e.g. an opened
window). Otherwise the system will not set.
o A triggered detector will prevent the section from being set. This status is optically indicated by
a function button flashing red. The detector preventing setting will be shown on the LCD display
menu.
*) WARNING: Options a) and b) are not supported by EN 50131, gr.2
(selected control panel system profile).
If a detector with the “Instant zone alarm” reaction is triggered during an exit de-
lay or if a detector with the “Delayed zone alarm” reaction stays triggered after the
exit delay has expired, then the control panel will unset again. Unsuccessful setting
is indicated by a system indicator flashing yellow, reported to the ARC and indicated
by an external siren (applies to the security Grade 2).
If the control panel is configured to be set without authorization then it is not
necessary to authorize yourself. All you have to do is press a function button of a
particular section. It is also possible to configure the control panel to be set simply
by authorization.
WARNING: Setting without authorization automatically lowers the maximum security level to Grade 1.
Consider all possible risks related to using this function.
Consult the installation with a project consultant or a service technician in order to program the desired
behaviour of the alarm system.

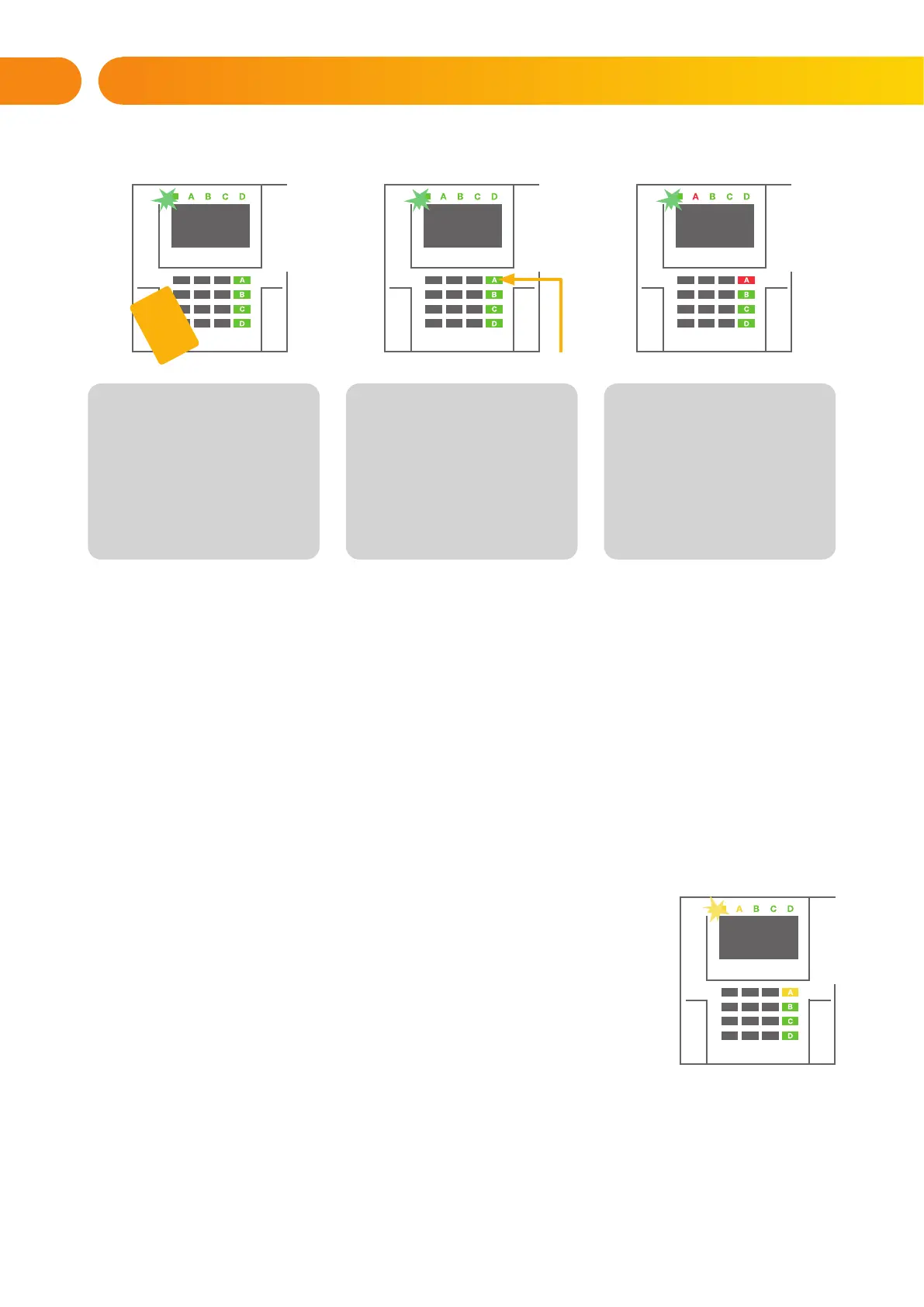

1. Authorize yourself using
the keypad. Function buttons
A, B, C, D will light up and the
system indicator starts flashing
green.
2. Press the function button to set
a particular section. It is
possible to set more sections
subsequently. The delay between
sections selection must not be
longer than 2 seconds.
3. The command is executed
and the keypad acoustically
indicates the exit delay. The
section is set now, only the
detectors with a “Delayed Zone”
reaction provide time to leave
the guarded area during the Exit
delay. The status indicator and
a function button of the set
section will turn red.
