Jacobsen HR800 Service Manual

4 CONTROLS
en-33

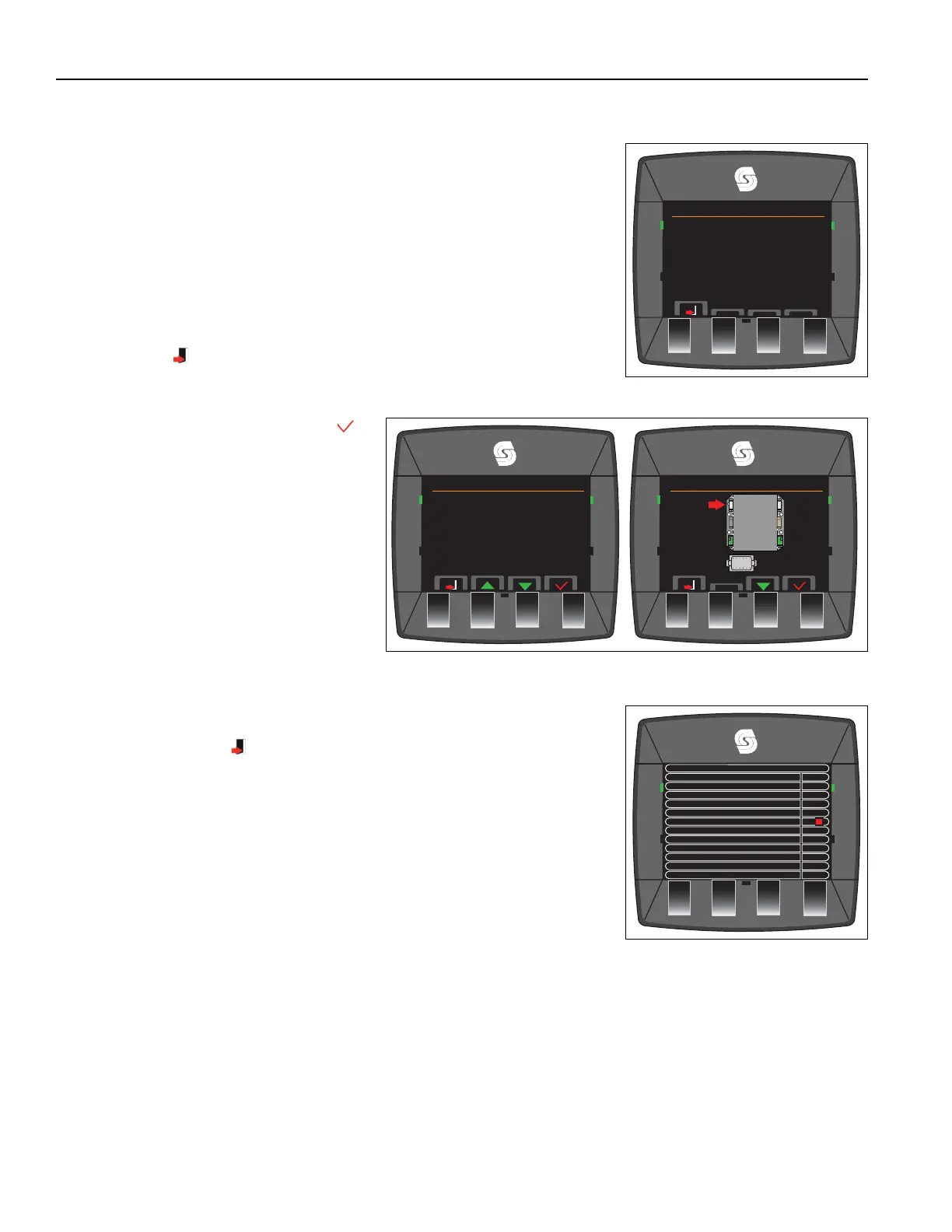

4.2.23.20 DIAGNOSTICS_________________________________________________________
Water Temp [deg C] = 60.5
Fuel Level [pct] = 100
Sys Voltage [V] = 11.8
Cutter [h] = 0.0
Software version
SW Vers - DP250: 70055160_S0181_P0131
Press the button to return to previous menu.
4.2.23.21 I/O DIAGNOSTICS
Select the I/O diagnostics  and accept .
4.2.23.22 CONNECTOR J1 _______________________________________________________
This screen shows the status of the J1 connectors.
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
Diagnostics
Water Temp [deg C] = 60.5
Fuel Level [pct] = 100
Sys Voltage [V] = 11.8
Cutter [h] = 0.0
SW Vers - DP250: 70055160_S0181_P0131
Service Menu
Fault Log
Time Until Service
Diagnostics

I/O Diagnostics
J1939 Info
I/O Diagnostics

J1
J2
J3
J4
J5
J6
Rear
Mower
<-
Front
Mower
->
1
6
7
12
DEUTSCH PN
DT13-12PA
Connector J1
J1-1 System Voltage [mV]
12719
J1-2 Fused B+ Input
J1-3 Ignition Signal
J1-4 Not Used
J1-5 Fused B+ Input
J1-6 Reverse Fan Direction
J1-7 Not Used
J1-8 CAN LOW
J1-9 CAN HIGH
J1-10 GND
J1-11 5V Output
J1-12 Not Used
O
