CONTROLS 4
en-34
4.2.23.23 CONNECTOR J2 _______________________________________________________

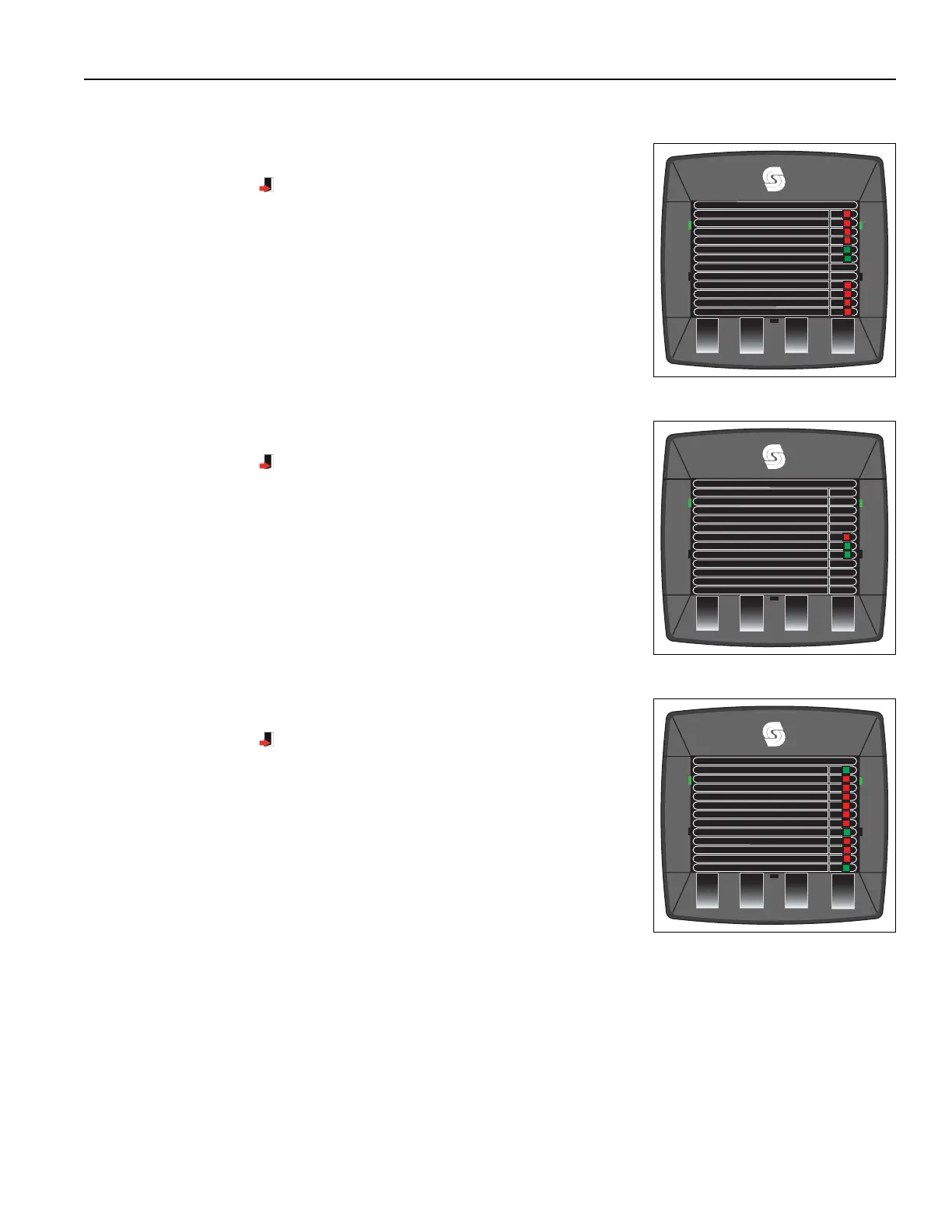

This screen shows the status of the J2 connectors.
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
4.2.23.24 CONNECTOR J3 _______________________________________________________
This screen shows the status of the J3 connectors.
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
4.2.23.25 CONNECTOR J4 _______________________________________________________
This screen shows the status of the J4 connectors.
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
Connector J2
J2-1 Right Lower
OFF
J2-2 Right Lift
J2-3 Center Lift
J2-4 High Speed Sol
J2-5 Left Lower
J2-6 Run w/Int Out
J2-7 EDC Coil A [mA] - FRW
J2-8 EDC Coil B [mA] - RVS
J2-9 Center Lower
J2-10 Park Brake Sol
J2-11 Left Lift
J2-12 Rev Fan PWM
ON
OFF
OFF
OFF
ON
OFF
0
I
OFF
OFF
OFF
Connector J3
J3-1 Traction Pedal Input 2
O
J3-2 Not Used
J3-3 Right Joystick [mV]
J3-4 Center Joystick [mV]
J3-5 Left Joystick [mV]
J3-6 Weight Transfer SW
J3-7 Right Wheel Speed Sensor
J3-8 Left Wheel Speed Sensor
J3-9 Signal Ground
J3-10 Throttle Position Input [mV]
J3-11 Not Used
J3-12 Traction Pedal Input I [mV]
OFF
ON
ON
O
O
O
O
O
O
O
Connector J4
J4-1 Seat Switch
J4-2 Right Deck Proxy Switch
J4-3 Left Deck Proxy Switch
J4-4 Center Deck Proxy Switch
J4-5 Hyd Oil Level Sensor
J4-6 Backlap Switch
J4-7 Start Signal Input
J4-8 Park Brake Switch
J4-9 PTO Switch Input
J4-10 Cruise Control Switch Input
J4-11 High Speed Switch
J4-12 Vehicle Conguration
OFF
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
