Introduction XT200 User Manual
Janam Technologies LLC Version 2, April 2020 Introduction 1-2

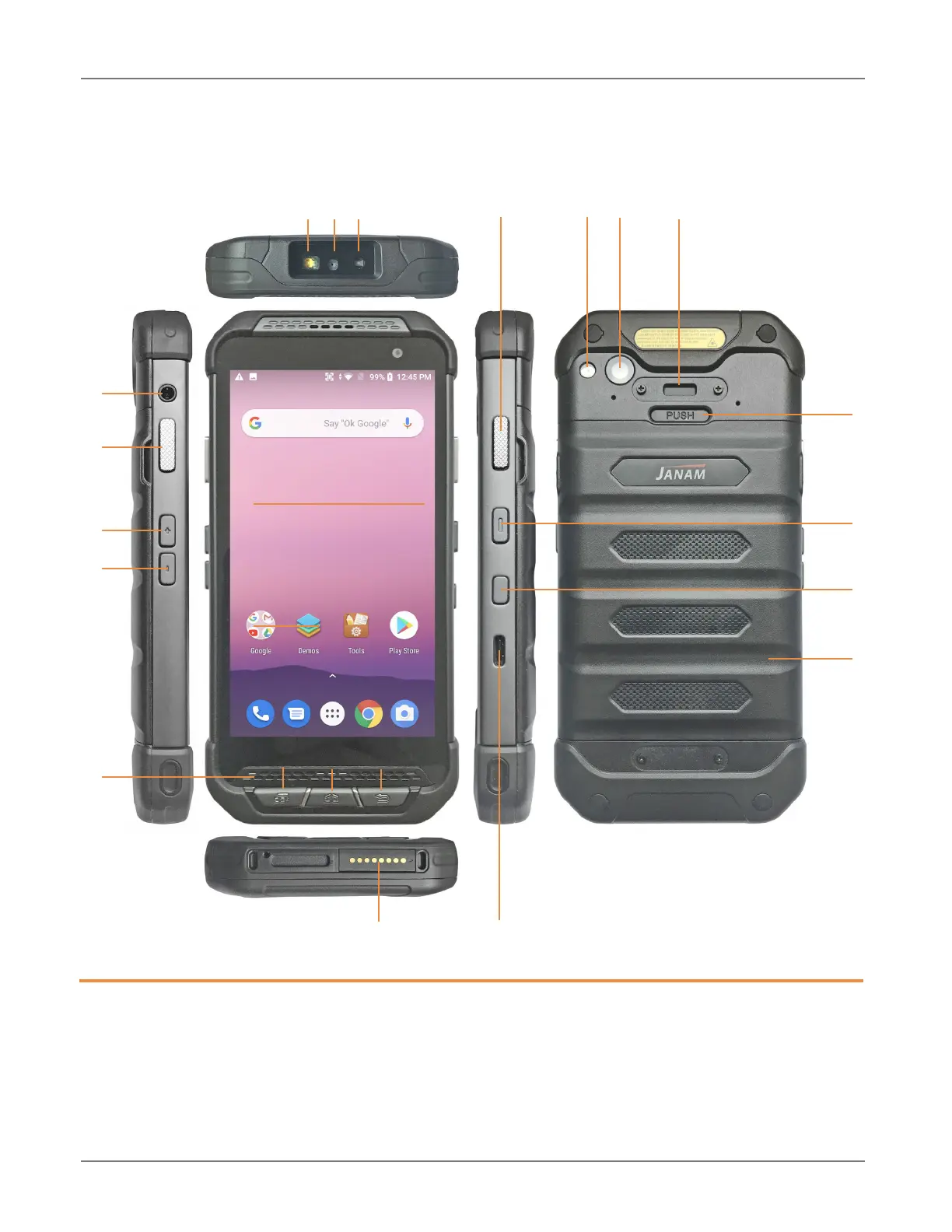

Hardware Overview
1. Scanner illuminator
2. Scanner
3. Scanner red spot
4. Scan button
5. Rear camera LED
6. Rear camera
7. Hand strap anchor
8. Battery compartment release
9. Power button
10. SOS button
11. Battery compartment cover
12. USB Type-C port
13. Docking pogo pins
14. Android Apps key
15. Android Home key
16. Android Back key
17. Speaker
18. Volume down
19. Volume up
20. Scan button
21. Headphone jack
