82
For example: there is a five-segment rate, the circling running is required as
follow:
Items Output frequency Running direction Running duration
Dominant
frequency
Potentiometer is
adjustable
Forward
Segment 1 20.0 Reverse 20
Segment 2 60.0 Forward 25
Segment 3 40.0 Reverse 30
Segment 4 15.0 Forward 20
Two buttons, one is for running, the other one is for ceasing; the main frequency
requires adjustable potentiometer.

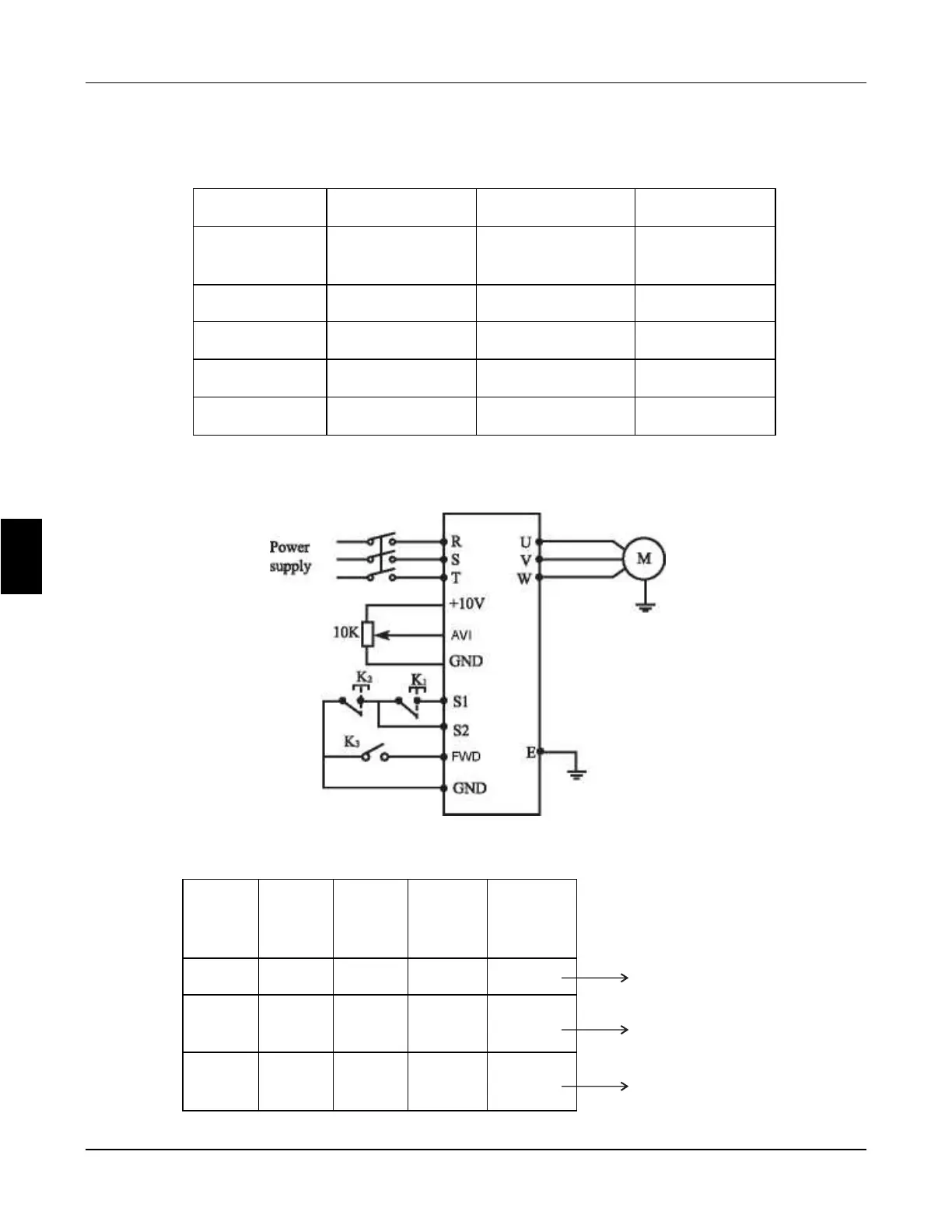

(1) Connection illustration
(2) PLC operation direction setting: (P533 setting)
Rate of
segment
1
Rate of
segment
2
Rate of
segment
3
Rate of
segment
4
Dominant
frequency
4 3 2 1 0
0 1 0 1 0
0x24 1x23 0x22 1x21 0x20
position (bit)
run direction <0 is
forward, 1 is Reverse
transfer to decimal
system
6
Chapter 6 Description of parameter setting
FC100 Series User Manaul
