76
Special function: None.
Description:
AD input Channel Description
AdC 0 0.0 Free
AdC 1 1.0 fLED-CW LED current control
AdC 2 2.0 Free
AdC 3 3.0 fBAL-TMP Temperature of transducer (analog version if present)
AdC 4 4.0 Free
AdC 5 5.0 Free
AdC 6 6.0 Free
AdC 7 7.0 fBAT Supply voltage control (handspin)
AdC 8 8.0 fPOt-WHO Width potentiometer
AdC 9 9.0 fPOT-OFS Distance/extraction potentiometer
AdC 10 10.0 fPOT-DIA Diameter/angle potentiometer
AdC 11 11.0 Free
AdC 12 12.0 VCC-W ½ voltage of +5V supply
AdC 13 13.0 fLINE-V Mains voltage control
AdC 14 14.0 Free
AdC 15 15.0 Free
AdC 16 5.0 VDisp Supply voltage of display board (=VCC-W)
AdC 17 6.0 Free
AdC 18 5.1 Free
AdC 19 6.1 Free
AdC 20 5.2 VDisp* Supply voltage of display board (=VCC-W)
AdC 21 6.2 VAssStat* Voltage on capacitor of AutoStopSystem
AdC 22 5.3 Free
AdC 23 6.3
AdE 1 AE1 External AD converter (rear transducer)
AdE 2 AE2 External AD converter (front transducer)
* via multiplexer on the power interface
Free: 0.0V will be displayed
Comments: Voltage Range is: 0.0 - 3.3V for ELECTRONIC BOX
C80 Calibration of the inner SAPE gauge arm
Options: None.
Special function: None.
Description:

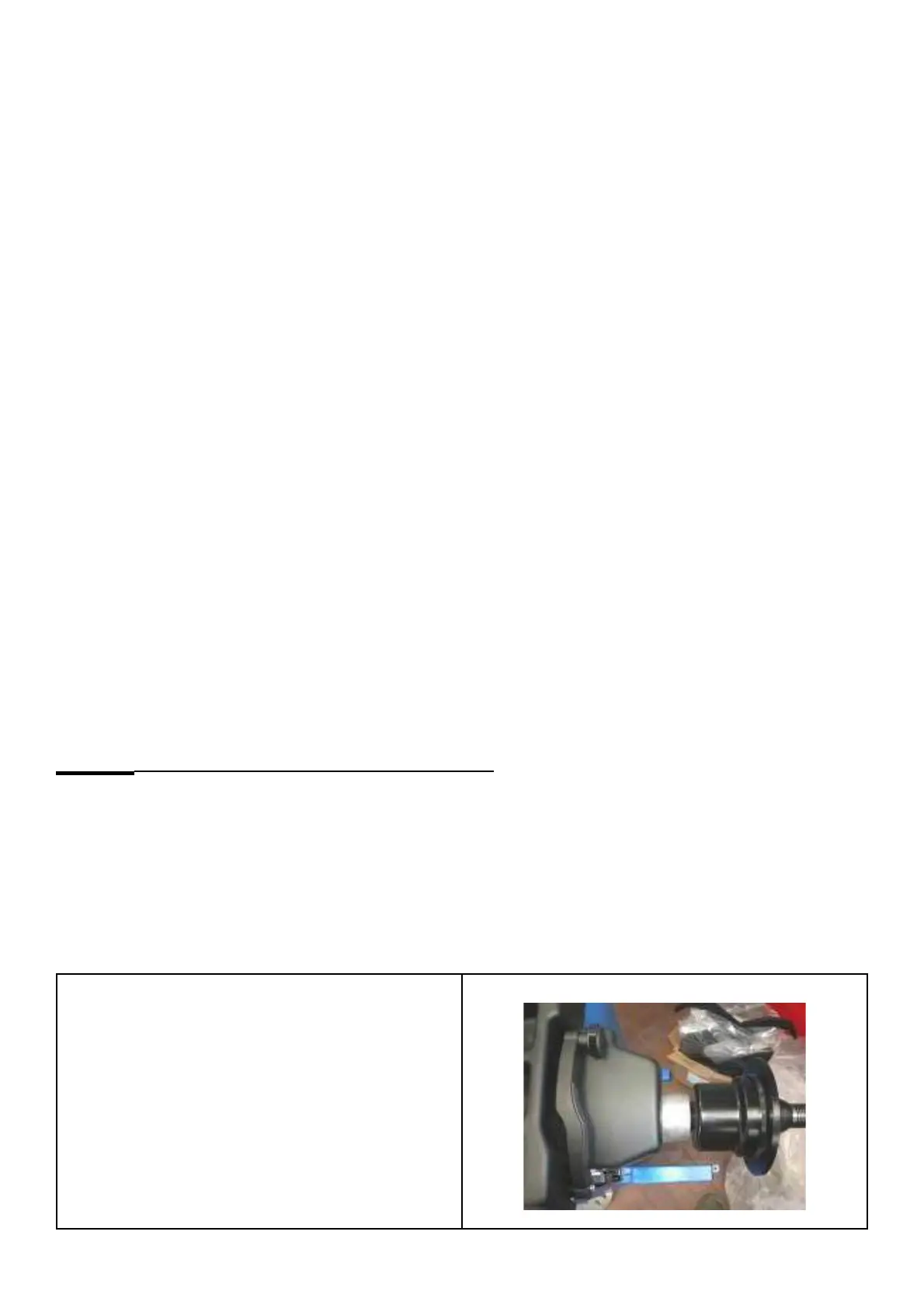

Step 1: Move gauge arm to calibration position 1 and adjust the distance potentiometers mechanically.
The voltage of the distance potentiometer is indicated in the right 3-dig display
Gauge arm fully returned to home position. The
reading for distance sape must be:
3.10 – 3.15V
To Next Page
