81

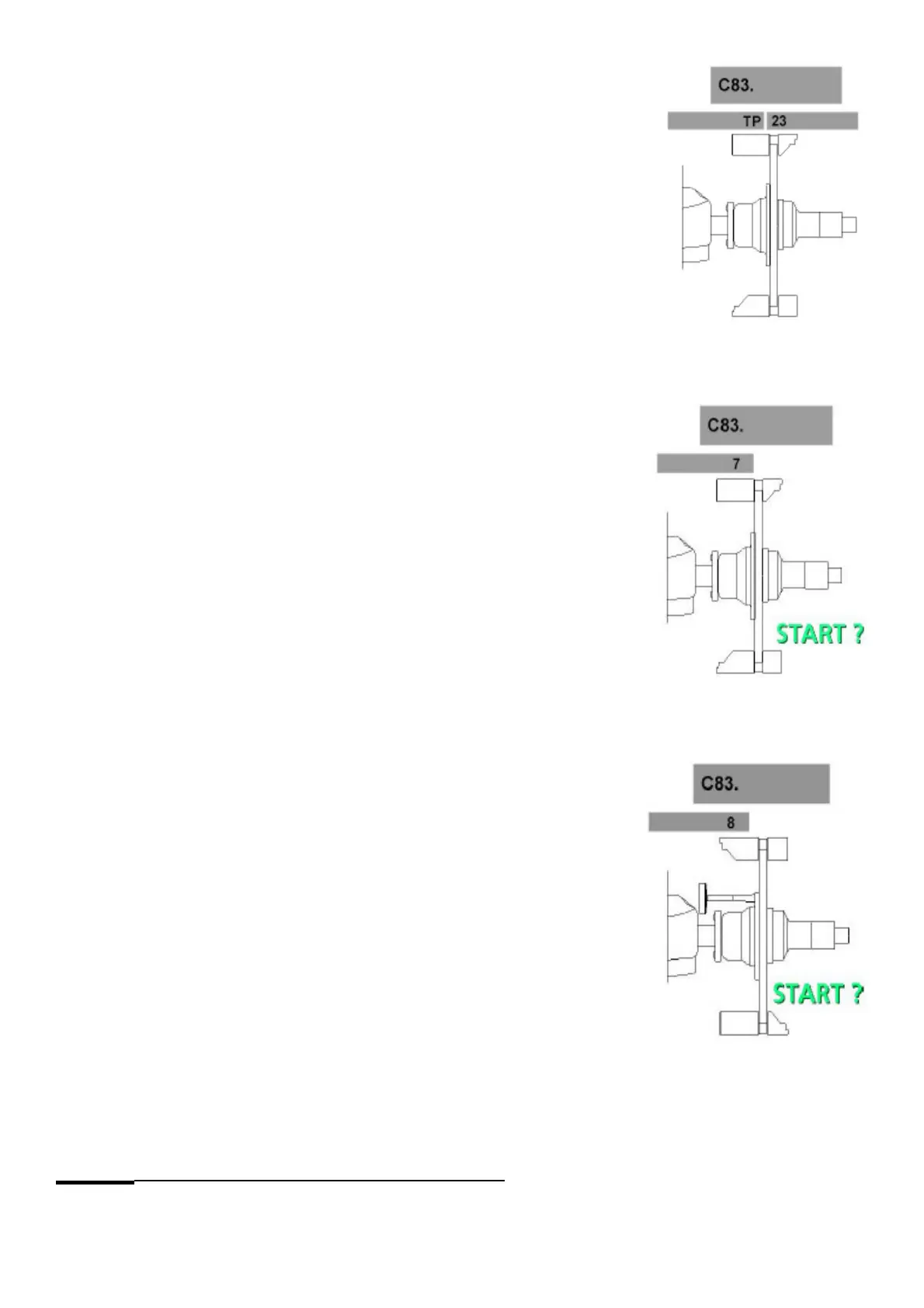

Step 6: The ambient transducer temperature is displayed for 1 second.
Step 7: Remove the 100 gram weight, lower the hood and Lower the wheel guard
to start a measuring run.
Step 8:. Insert the calibration weight that is supplied with the balancer on the left side of the backing plate.
Lower the wheel guard to begin a measuring run.
Comments: Complete this calibration with C84 and C88
C84 Compensation of unbalance of main shaft
Options: None
Special function: None
