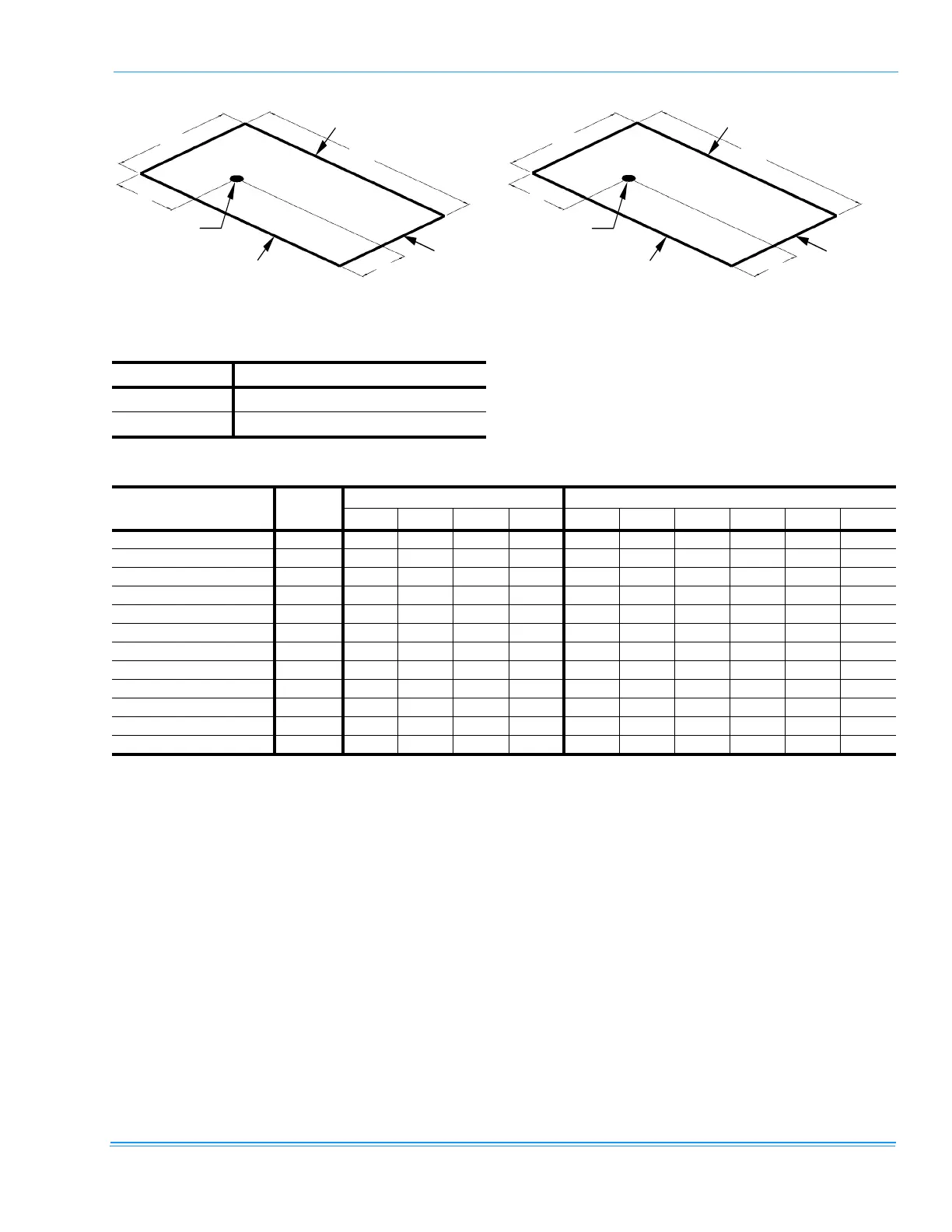

FIGURE 9 - FOUR AND SIX POINT LOADING
TABLE 6: CENTER OF GRAVITY (ALL MODELS)
DIMENSION DW-03 thru -05
X 40
Y 20
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 7: DW 4 AND 6 POINT LOADS WEIGHT DISTRIBUTION
UNIT TOTAL
4-Point Loading (lb) 6-Point Loading (lb)
ABCDABCDEF
DW-03 Cooling/Electric 575
132 125 155 164 89 85 82 102 106 110
DW-03N05 615
141 133 166 175 95 91 88 110 114 118
DW-03D07 625
143 135 168 178 96 93 89 111 115 120
DW-03N11 635
145 138 171 181 98 94 91 113 117 122
DW-03D13 645
148 140 174 184 99 96 92 115 119 124
DW-04 Cooling/Electric 585
134 127 158 167 90 87 84 104 108 112
DW-04(D,N)07 635
145 138 171 181 98 94 91 113 117 122
DW-04(D,N)11 655
150 142 177 187 101 97 94 117 121 125
DW-05 Cooling/Electric 590
135 128 159 168 91 88 84 105 109 113
DW-05D07 640
147 139 173 182 99 95 92 114 118 123
DW-05N11 650
149 141 175 185 100 97 93 116 120 125
DW-05(D,N)13 660
151 143 178 188 102 98 95 118 122 126
