Johnson Controls Unitary Products 37

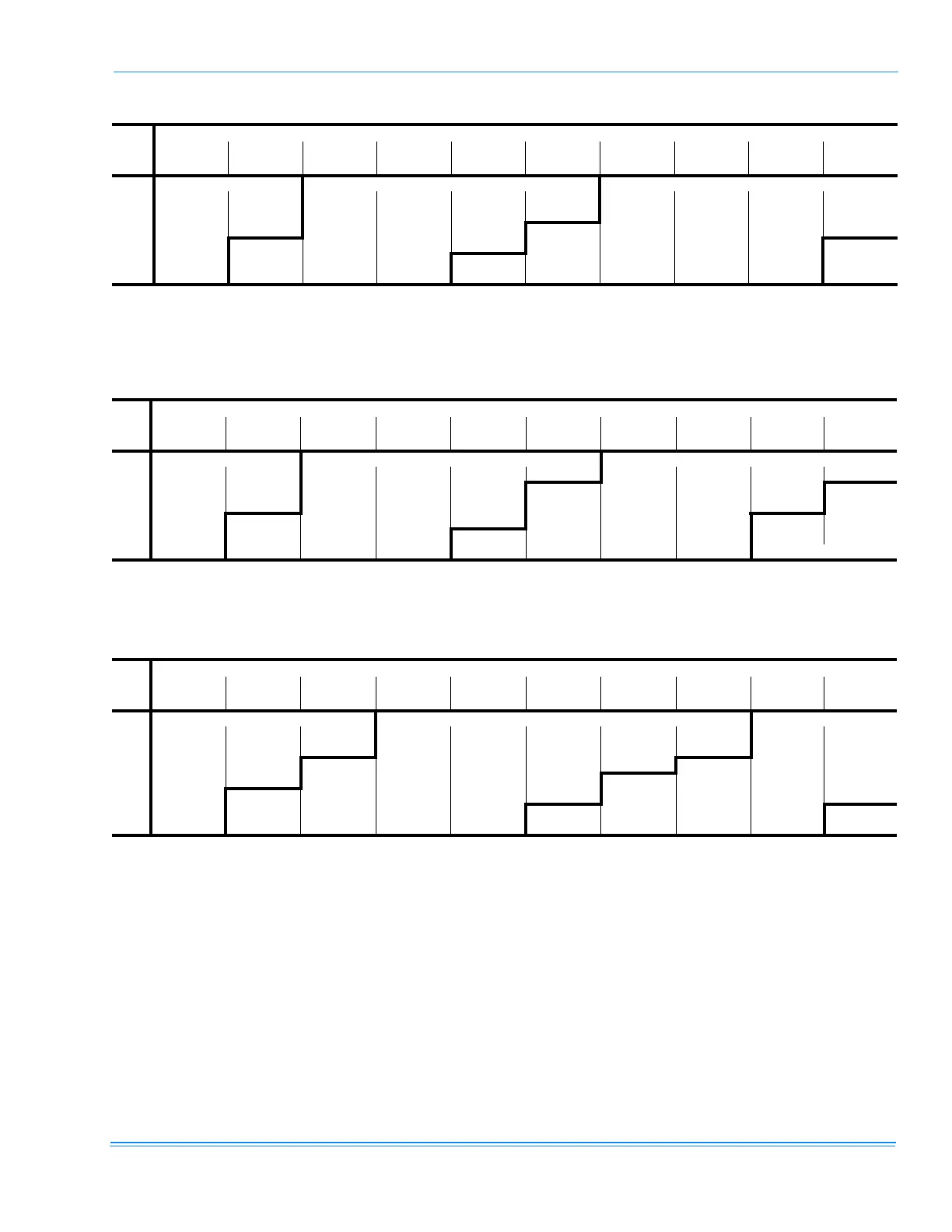

TABLE 20:SUPPLY AIR BLOWER PERFORMANCE (DW-03 BELT DRIVE) - SIDE DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
800 634 0.34 735 0.39 828 0.45 914 0.52 995 0.59 1070 0.67 1140 0.75 1207 0.83 1270 0.92 1332 1.00
1000 659 0.39 760 0.45 853 0.51 939 0.57 1019 0.65 1094 0.72 1165 0.80 1232 0.89 1295 0.97 1356 1.06
1200 685 0.47 786 0.52 879 0.58 965 0.65 1045 0.72 1120 0.80 1191 0.88 1258 0.96 1321 1.05 1382 1.13
1400 716 0.57 816 0.62 909 0.68 995 0.75 1076 0.82 1151 0.90 1221 0.98 1288 1.06 1352 1.15 1413 1.23
1600 752 0.69 852 0.75 945 0.81 1032 0.88 1112 0.95 1187 1.03 1258 1.11 1324 1.19 1388 1.27 1449 1.36
FS
4
TABLE 21:SUPPLY AIR BLOWER PERFORMANCE (DW-03 BELT DRIVE) - BOTTOM DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
800 613 0.35 724 0.40 826 0.46 920 0.53 1007 0.60 1089 0.67 1165 0.75 1237 0.83 1306 0.91 1372 1.00
1000 640 0.40 751 0.46 853 0.52 947 0.58 1034 0.65 1116 0.73 1192 0.80 1264 0.89 1333 0.97 1399 1.05
1200 669 0.48 779 0.53 881 0.59 975 0.65 1063 0.73 1144 0.80 1220 0.88 1293 0.96 1361 1.04 1427 1.13
1400 702 0.57 812 0.63 914 0.69 1009 0.75 1096 0.82 1177 0.90 1254 0.98 1326 1.06 1394 1.14 1460 1.22
1600 741 0.70 852 0.75 954 0.81 1048 0.88 1135 0.95 1217 1.02 1293 1.10 1365 1.18 1434 1.26 1500 1.35
Field Supplied Drive
TABLE 22:SUPPLY AIR BLOWER PERFORMANCE (DW-04 BELT DRIVE) - SIDE DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
4. Field Supplied Drive.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1000 703 0.39 786 0.47 866 0.54 942 0.62 1016 0.71 1087 0.79 1155 0.88 1221 0.98 1284 1.07 1345 1.17
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
FS
