TABLE 16:ELECTRIC HEAT CORRECTION FACTORS
NOMINAL VOLTAGE VOLTAGE kW CAP. MULTIPLIER
208
208 1.00
240
230 0.92
480
460 0.92
600
575 0.92
TABLE 17:VOLTAGE LIMITATIONS
1
1. Utilization Range “A” in accordance with ARI Standard
110.
POWER SUPPLY
VOLTAGE
MIN. MAX.
208/230-1-60
187 252
208/230-3-60
187 252
460-3-60
432 504
575-3-60
540 630

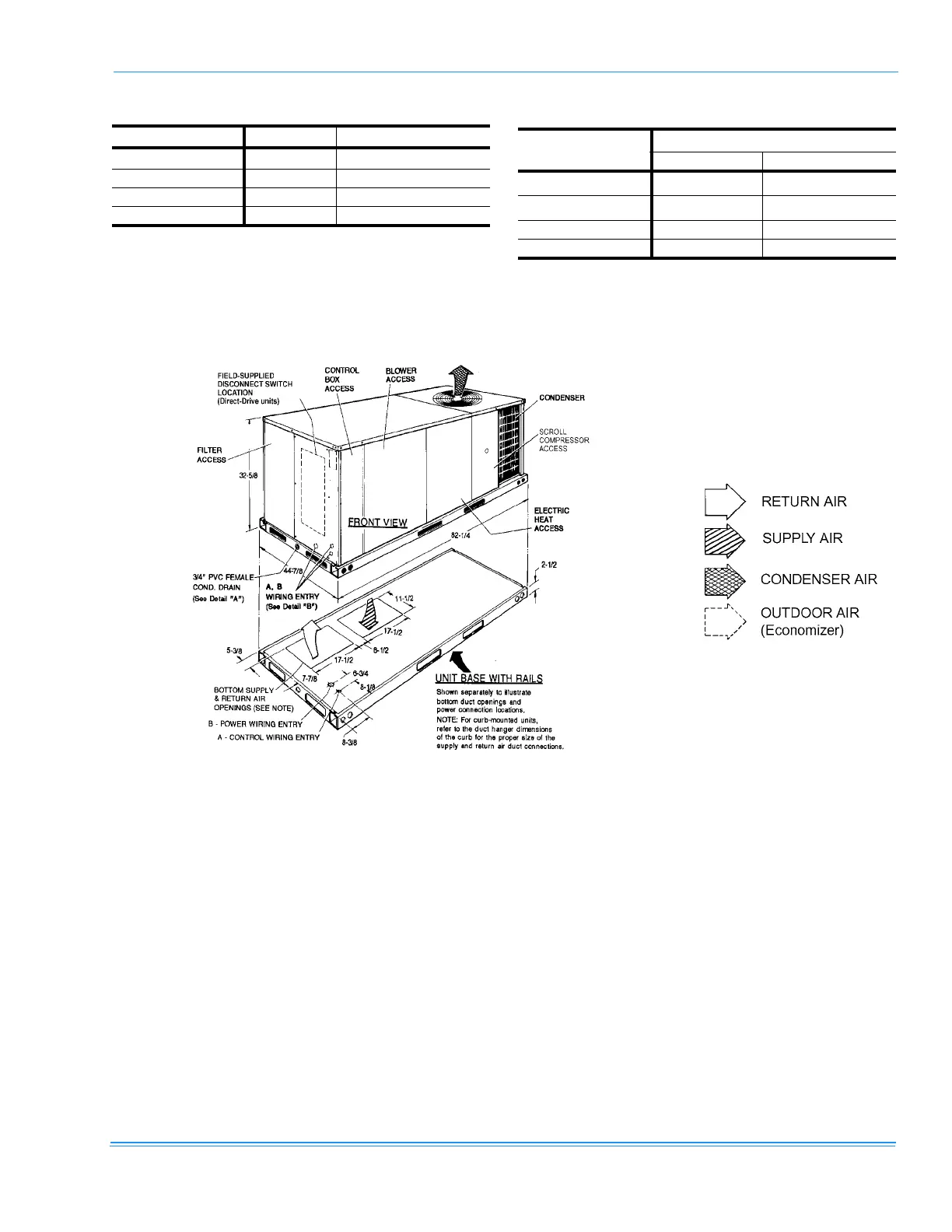

FIGURE 10 - UNIT DIMENSIONS (3 - 5 TON COOLING ONLY/ELECTRIC HEAT) FRONT VIEW
