Johnson Controls DW-03 - Supply Air Blower Performance (Dw-04 Belt Drive) - Bottom Duct Application; Supply Air Blower Performance (Dw-05 Belt Drive) - Side Duct Application; Supply Air Blower Performance (Dw-05 Belt Drive) - Bottom Duct Application

362247-BIM-B-0109
38 Johnson Controls Unitary Products

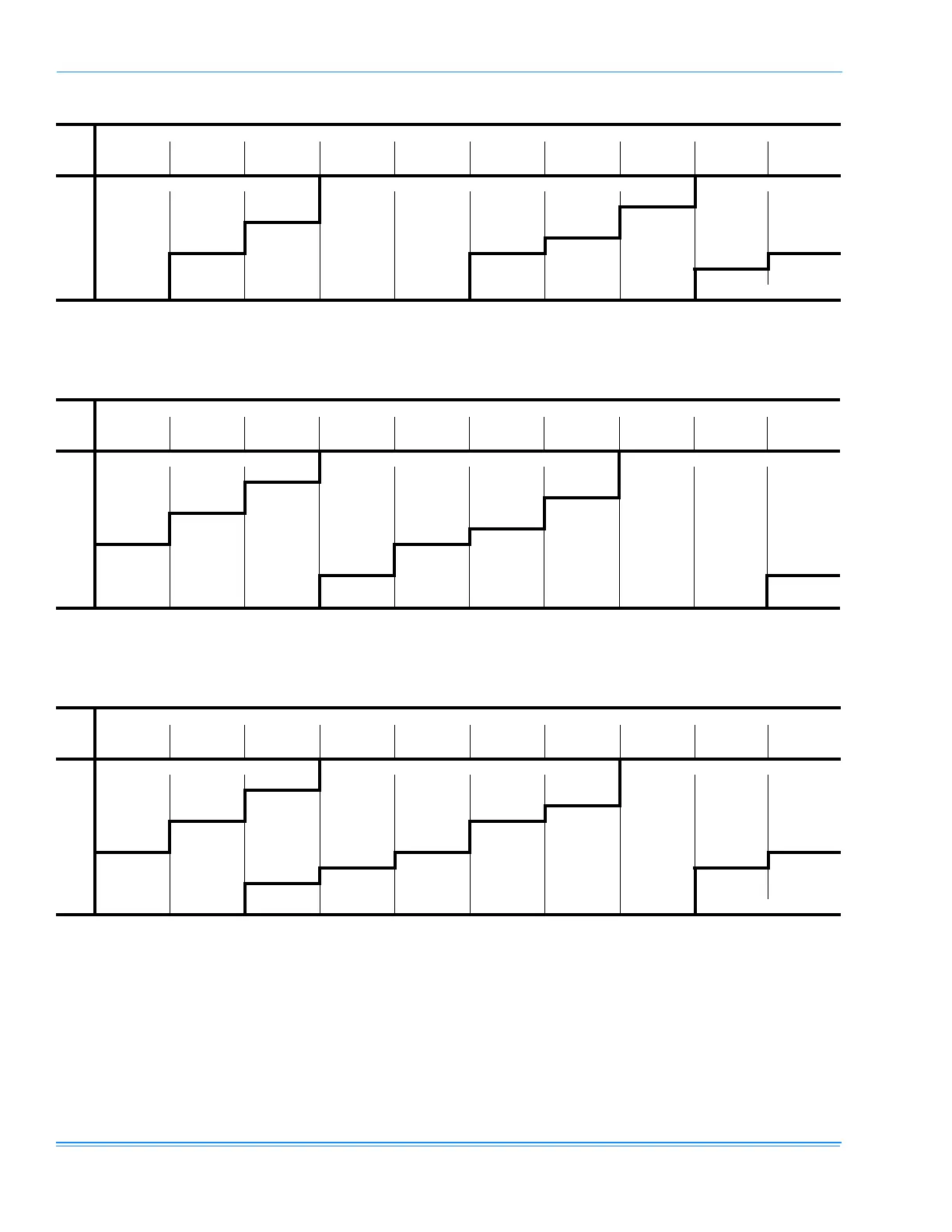

TABLE 23:SUPPLY AIR BLOWER PERFORMANCE (DW-04 BELT DRIVE) - BOTTOM DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1000 688 0.40 779 0.47 866 0.55 949 0.63 1029 0.71 1107 0.80 1181 0.88 1253 0.97 1322 1.07 1388 1.16
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
Field Supplied Drive
TABLE 24:SUPPLY AIR BLOWER PERFORMANCE (DW-05 BELT DRIVE) - SIDE DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1200 733 0.44 817 0.52 896 0.60 973 0.68 1047 0.76 1118 0.85 1186 0.94 1252 1.03 1315 1.12 1376 1.22
1400 770 0.52 853 0.60 933 0.67 1010 0.76 1083 0.84 1154 0.93 1222 1.02 1288 1.11 1352 1.20 1413 1.30
1600 811 0.64 895 0.71 974 0.79 1051 0.87 1125 0.96 1196 1.04 1264 1.13 1330 1.23 1393 1.32 1454 1.42
1800 857 0.80 940 0.87 1020 0.95 1097 1.03 1171 1.11 1242 1.20 1310 1.29 1375 1.38 1439 1.48 1500 1.58
2000 907 1.00 990 1.07 1070 1.15 1146 1.23 1220 1.31 1291 1.40 1359 1.49 1425 1.58 1488 1.68 1550 1.77
2200 960 1.24 1043 1.31 1123 1.39 1199 1.47 1273 1.55 1344 1.64 1412 1.73 1478 1.82 1541 1.92 1602 2.01
2400 1015 1.51 1099 1.59 1178 1.66 1255 1.74 1329 1.83 1400 1.92 1468 2.01 1534 2.10 1597 2.19 1658 2.29
2600 1074 1.83 1157 1.90 1237 1.98 1314 2.06 1387 2.14 1458 2.23 - - - -----
TABLE 25:SUPPLY AIR BLOWER PERFORMANCE (DW-05 BELT DRIVE) - BOTTOM DUCT APPLICATION
Air
Flow
(CFM)
Available External Static Pressure - IWG
1
1. Blower performance includes gas heat exchangers and 1” filters. See STATIC RESISTANCE table for additional applications.
2. See RPM SELECTION table to determine desired motor sheave setting and to determine the maximum continuous BHP.
3. kW = BHP x 0.932.
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP
Field Supplied Drive Standard Drive Option HIgh Static Drive Option
1200 722 0.45 812 0.53 899 0.60 983 0.68 1063 0.76 1140 0.85 1215 0.93 1286 1.03 1355 1.12 1422 1.21
1400 761 0.53 852 0.60 939 0.68 1022 0.76 1103 0.84 1180 0.92 1254 1.01 1326 1.10 1395 1.20 1462 1.29
1600 807 0.65 897 0.72 984 0.79 1068 0.87 1148 0.95 1225 1.04 1300 1.13 1371 1.22 1440 1.31 1507 1.40
1800 856 0.80 947 0.87 1034 0.95 1118 1.02 1198 1.11 1275 1.19 1349 1.28 1421 1.37 1490 1.46 1557 1.56
2000 910 0.99 1001 1.06 1088 1.14 1172 1.22 1252 1.30 1329 1.39 1403 1.47 1475 1.56 1544 1.66 1611 1.75
2200 968 1.23 1059 1.30 1146 1.37 1229 1.45 1309 1.53 1387 1.62 1461 1.71 1533 1.80 1602 1.89 1668 1.99
2400 1029 1.50 1119 1.57 1206 1.65 1290 1.72 1370 1.81 1448 1.89 1522 1.98 1593 2.07 1663 2.16 1729 2.26
2600 1093 1.81 1183 1.88 1270 1.95 1354 2.03 1434 2.11 1511 2.20 1586 2.29 - - - - - -
Field Supplied Drive
