Proprietary Receiving Unit Overview System Architecture
71IFI-WS Installation and Operation Manual – P/N LS10050-000JC-E:A 12/11/2014
appliances, equipment for the automatic, permanent visual recording of signals; and equipment for initiating the
operation of emergency building control services. Intelligent Fire Integrator systems are permitted to be
interconnected with other systems intended to make the premises safer.
In Proprietary Receiving Unit Mode, the Intelligent Fire Integrator system supports up to 200 gateways. Multiple
NFN and Receiver gateways are supported simultaneously and can be constantly supervised and communicating with
the same workstation. They can also span the TCP/IP network and exist on multiple workstations or embedded
hardware. The choice of which gateways to use and where they should be located is application specific and should
be analyzed by a trained individual. See Figures 7.5 and 7.6 for examples of proprietary receiving unit system
architecture.

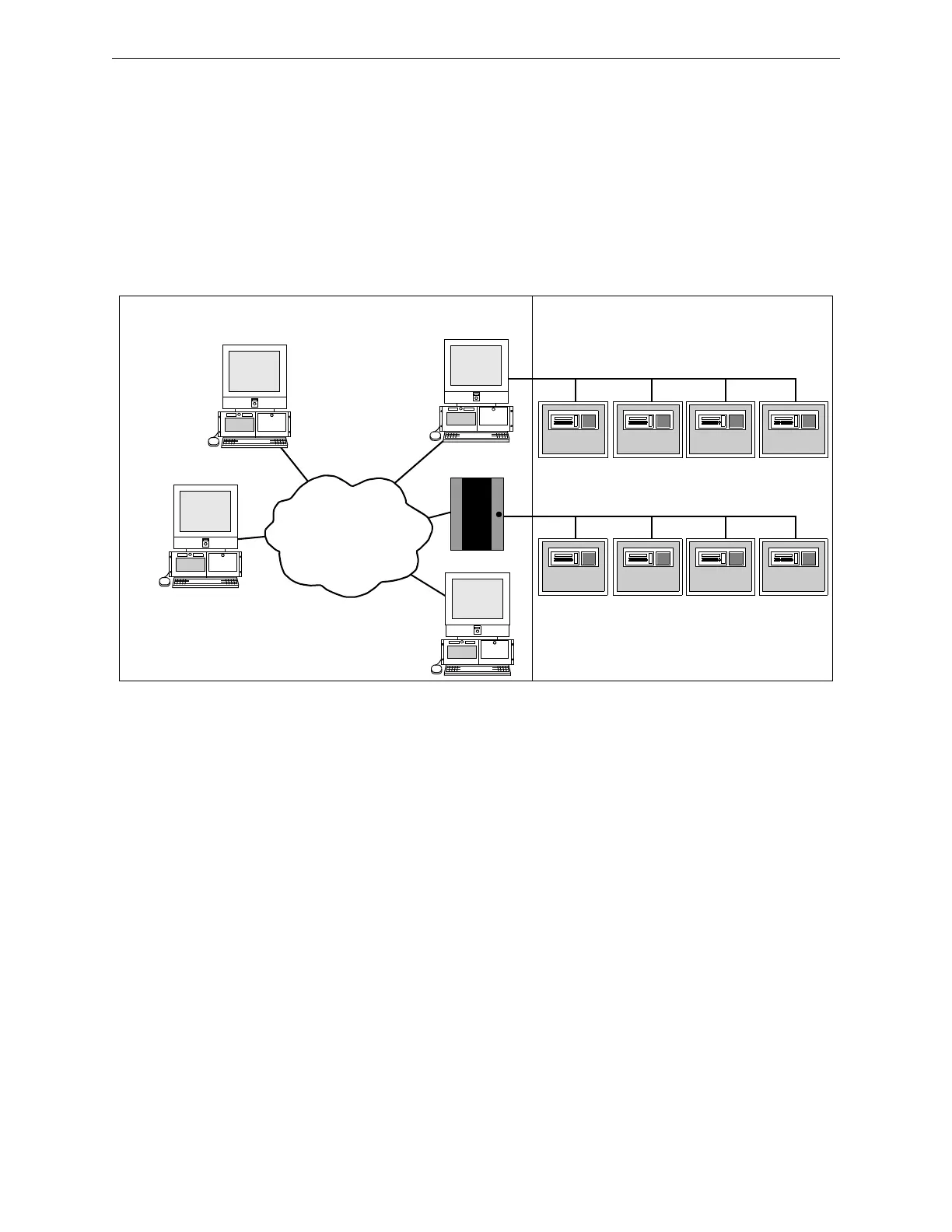

Figure 7.5 Proprietary Receiving Unit System - Example 1
Supervising Station Transmission and
Communications Path
Protected Premises Unit
NFN Network
Workstation/
Gateway PC
Workstation
Workstation
Embedded
Gateway
NFN Network
Other Technologies
LAN/WAN/Internet/Intranet
(Shared or Dedicated)
Workstation/
PC Gateway
PRU
PRU
PRU
PRU
To Next Page
