2-2

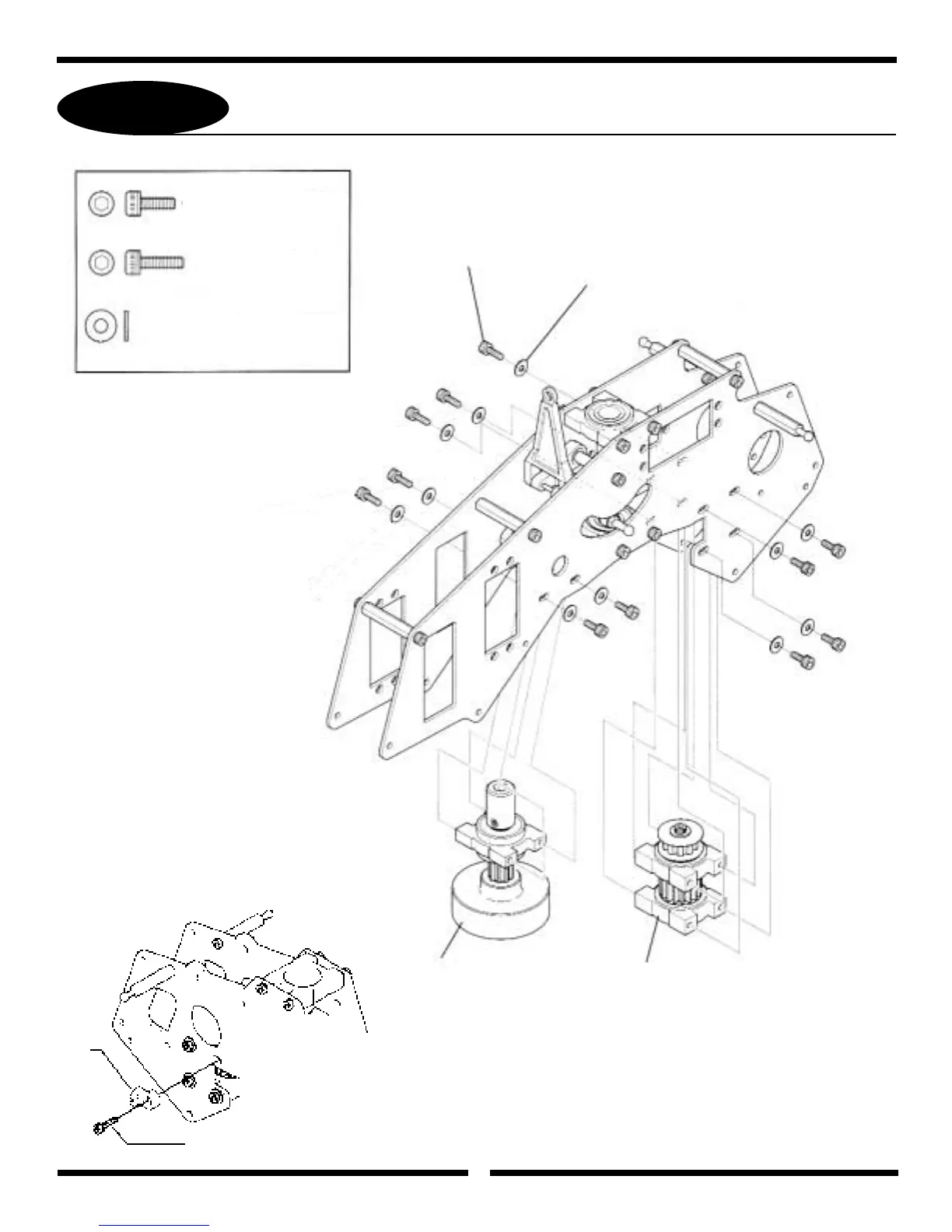

UPPER MAIN FRAME CLUTCH/TAIL PINION INSTALLATION
11
3x8mm Socket Head Bolt
Clutch Bell/Start Shaft Assembly
Tail Drive Pinion/Bearing
Block Assembly
3x8mm Flat Washer
Tail Control
Rod Guide
Note: Both the Clutch Bell/Start Shaft Assembly
(Step 1-1) and the Tail Drive Pinion/
Bearing Block Assembly (Step 1-2) are
temporarily installed at this time. These
assemblies will be adjusted and secured
in Step 3-2.
3x10mm Socket Head Bolt
3x8mm Socket Head Bolt
3x10mm Socket Head Bolt
3mm Flat Washer
. . . . . . . . . . . . . . . . 11 pcs
. . . . . . . . . . . . . . . . . 1 pc
. . . . . . . . . . . . . . . . . . . . . . 11 pcs
