JR ERGO User Manual

6-3

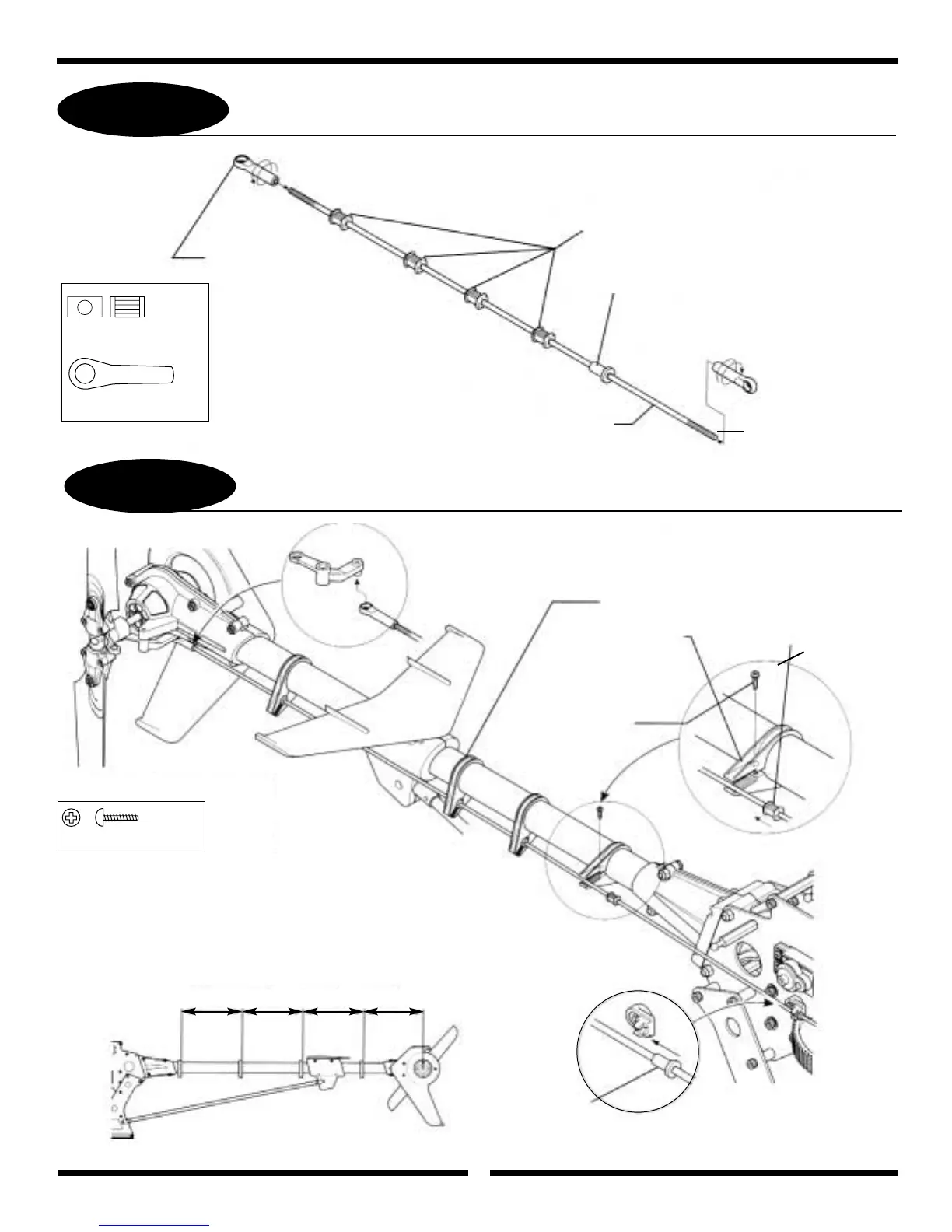

TAIL CONTROL ROD INSTALLATION
Insert the Tail Control Rod Assembly into the
four guides through the inner holes. Adjust
the spacing of the guides as shown below
and secure using the four 2x8mm Self
Tapping Screws as shown.
Universal Link (2 pcs)
Thread Link 8mm
on to Control Rod
Tail Control Rod Bushings (5 pcs)
Tail Guide Bushing
Tail Control Rod
Thread link 8mm
onto control rod
Square Splined Tail Guide
Tail Guide Clamp
2x8mm Self
Tapping Screw
(4 pcs)
Round Tail Guide fits
into frame support clip
Square Splined
Tail Guide
120mm 140mm 140mm 140mm
Tail Control Rod Bushing
......5 pcs
Universal Link
......2 pcs
6-2
TAIL CONTROL ROD ASSEMBLY
32
2x8mm Self Tapping Screw
......4 pcs
