JR ERGO User Manual

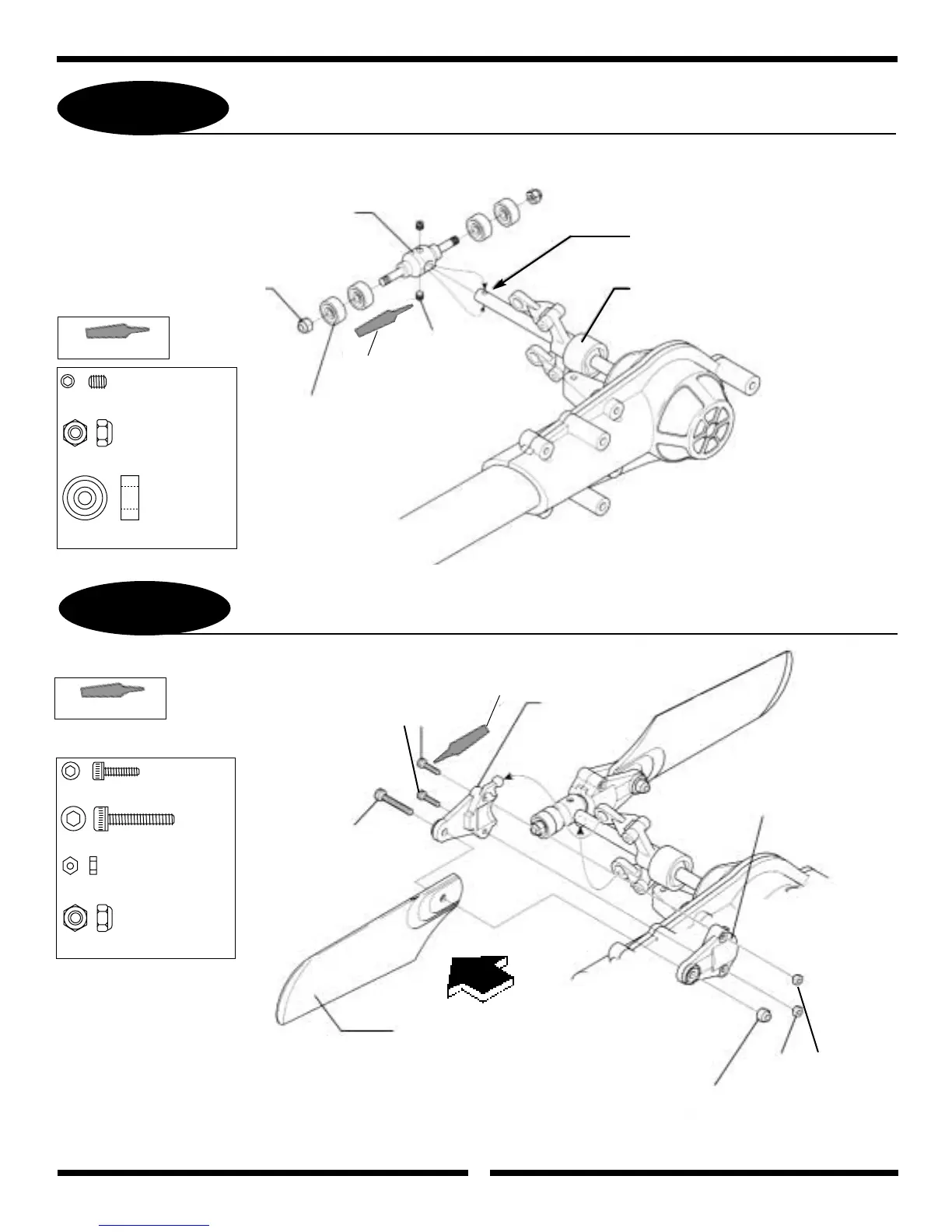

5-3
TAIL CENTER HUB ASSEMBLY
27
3x3mm Set Screw
.......2 pcs
3mm Lock Nut
........2 pcs
Tail Blade Holder Bearing (3x10x4)
........4 pcs
2x8mm Socket Head Bolt
........4 pcs
3x15mm Socket Head Bolt
......2 pcs
3mm Lock Nut
........2 pcs
2mm Hex Nut
........4 pcs
* Be sure to note direction of Tail Rotor Blades during assembly.
5-4
TAIL BLADE HOLDER ASSEMBLY
Tail Blade Holder w/Ball
(Outside)
3x15mm Socket
Head Bolt
2x8mm Socket
Head Bolt
Tail Blade Holder
w/o Ball (Inside)
2mm Hex Nut
3mm Lock Nut
Tail Rotor Blade
Rotation
Two Sets Required
Tail Rotor Center Hub
Tail Blade Holder Bearing (4 pcs)
Tail Slide Ring Assembly
Use Red Threadlock
Use Blue Threadlock
3mm Lock Nut (2 pcs)
Use
Threadlock
Be sure to engage the two
3mm Set Screws into the
hole in the Tail Output Shaft
3mm Set Screw
Use Red Threadlock
