7-3
CCPM LINKAGE CONNECTIONS
43

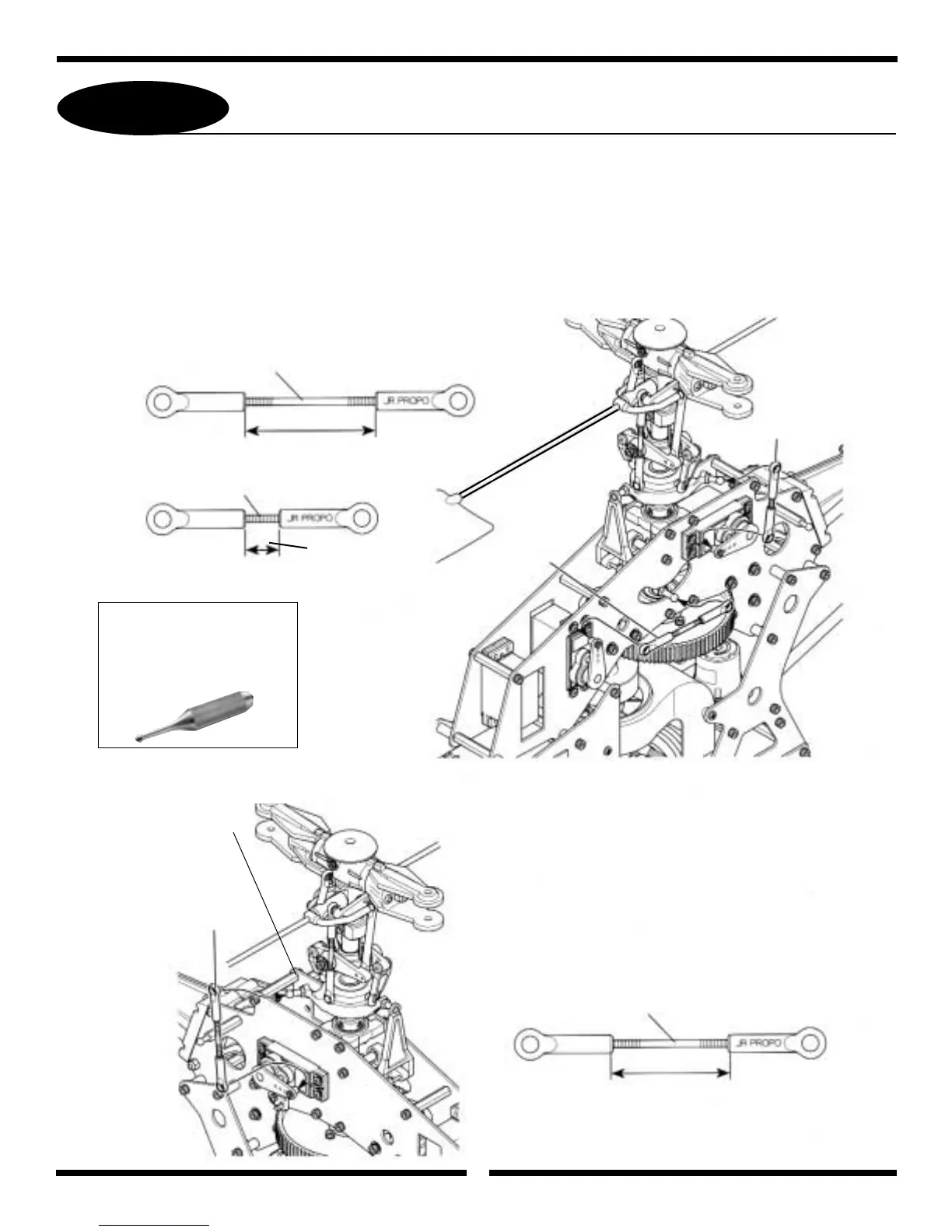

Assemble and adjust the three CCPM servo linkages as shown below. It is important the the exact distances specified below be maintained for
each linkage as this is critical to the alignment and neutral position of the swashplate. Please also note the direction of the ball links as shown by
the JR Propo name imprinted on each ball link. The JR Propo name is imprinted on the front of each ball link. When attaching the control rods,
it is important to make sure that the JR Propo name faces outward as the links are attached to the control balls.
Please also note that when attaching control linkages B and C, it will be necessary to rotate the link that attaches to the swashplate slightly so
that it is parallel to the rear mounting surface of the ball link. This will allow the control linkage to rotate slightly on the two control balls.
Is is also recommended that the JR Ball Link Sizing Tool be used to size the ball links for a proper fit prior to attachment.
Front Servo to Elevator Arm Linkage
2.3x25mmThreaded Rod
Left Servo to Swashplate Linkage
2.3x25mmThreaded Rod
Right Servo to Swashplate Linkage
2.3x45mmThreaded Rod
Rotate link slightly so it’s
parallel to the rear mounting
surface of the control ball
Control Ball
Option: For smooth operation,
pre-size the ball links with
the JR Ball Link Sizing
Tool prior to attachment.
32mm
28mm
8.3mm
To Next Page
