ROTOR HEAD INSTALLATION
23
3x18mm Socket Head Bolt
........1 pc
3mm Lock Nut
........1 pc

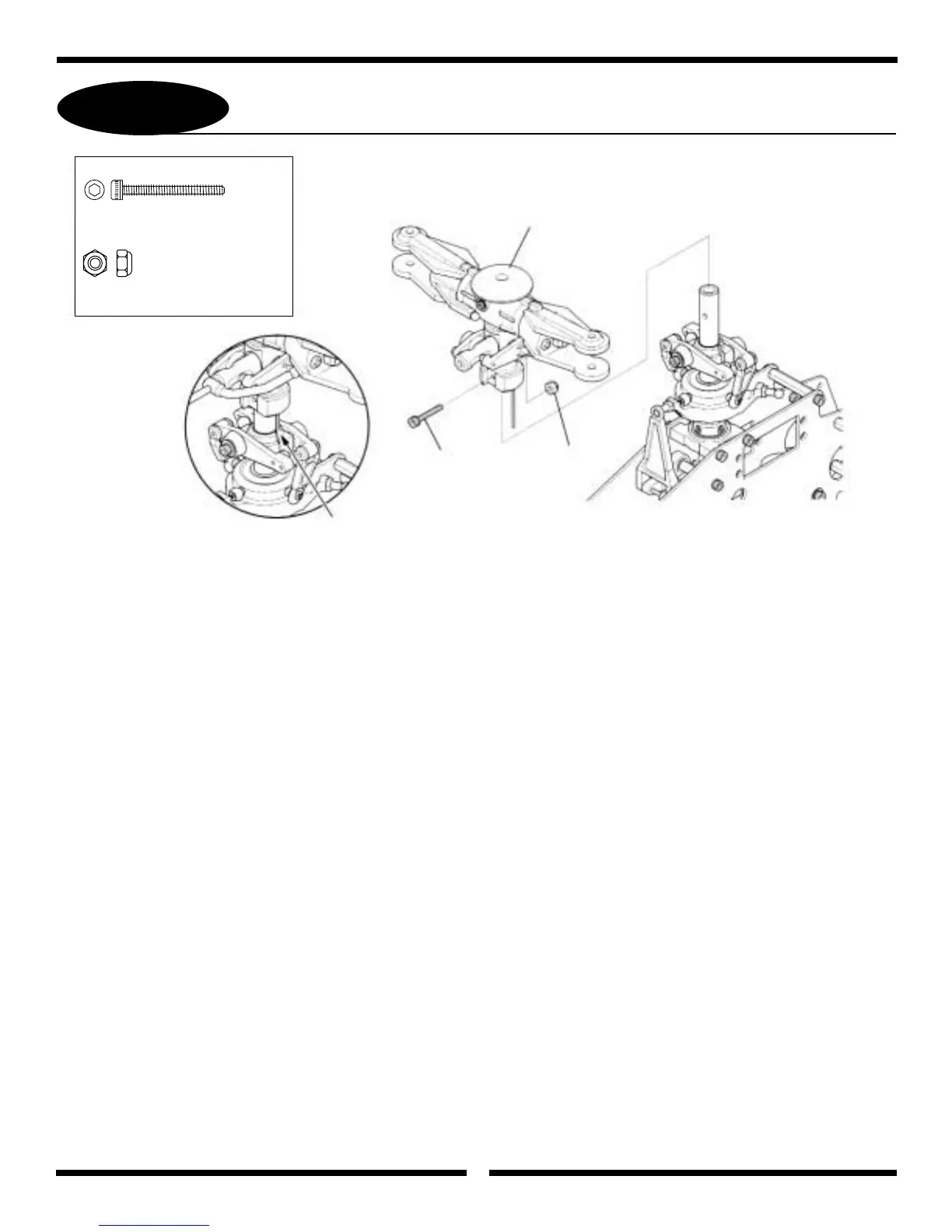

Rotor Head Assembly
3mm Lock Nut
3x18mm Socket Head Bolt
Note: Be sure to engage the rotor hub pin into the washout
base groove before securing the rotor head in place
*Note: If you’re building the Ergo 46 CCPM version,
it will be neccessary at this time to also align
the washout base to the rotor head via the
phase adjusting ring. When properly
adjusted, the washout base arms should be
parallel to the main rotor blade holders.
