JR ERGO User Manual

4-10

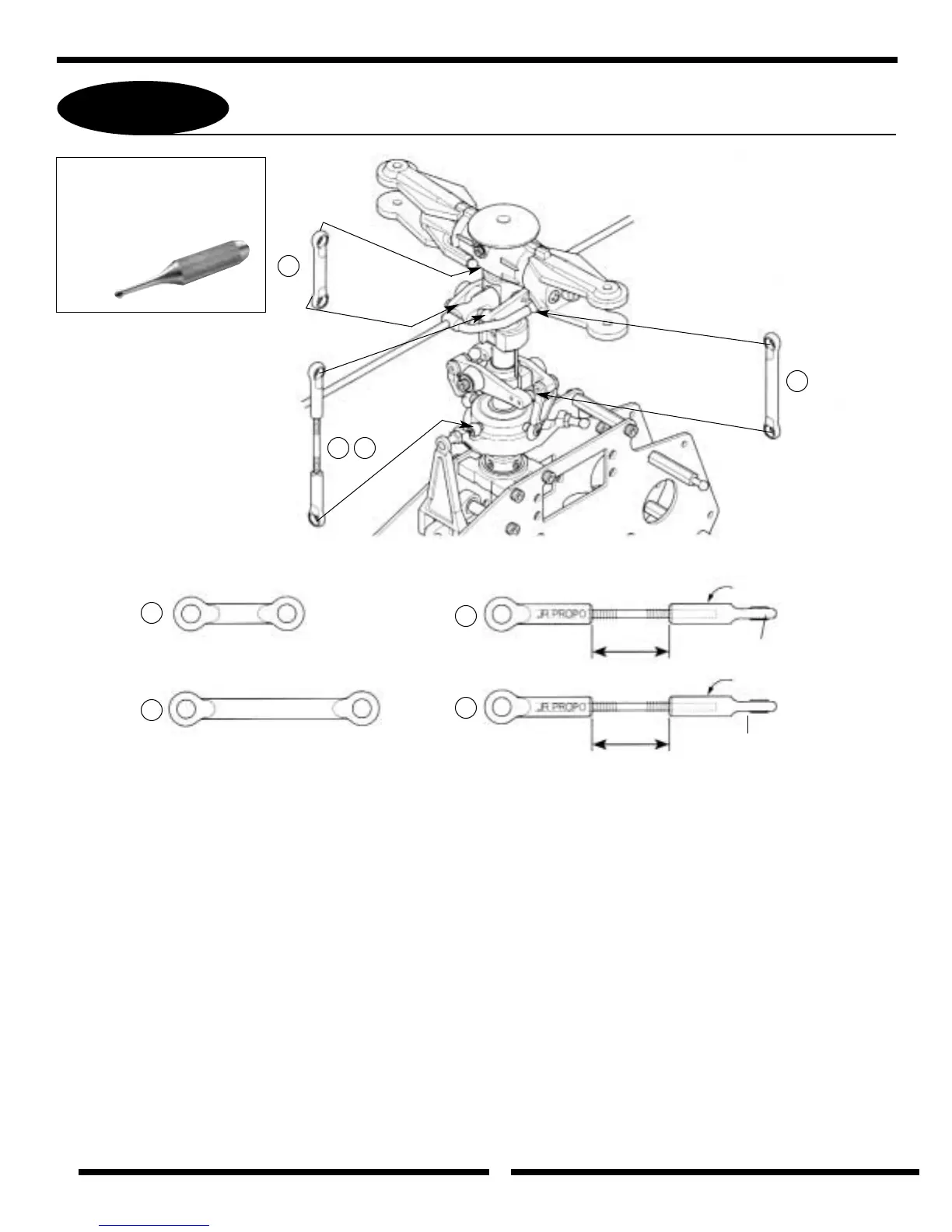

ROTOR HEAD/SWASHPLATE CONTROL ROD INSTALLATION
25
Option: For smooth operation, pre-
size the ball links with the
JR ball link sizing tool prior
to attachment
Washout arm to flybar control arm
(1 piece double link, long)
Swashplate to seesaw arm (Ergo 46 3D)
Swashplate to Seesaw arm (Ergo 30)
(2.3mmx40mm threaded rod)
Link should be rotated 90° of opposite link
A
A
B
B
C
C
D
D
Seesaw arm to main blade holder
(1 piece double link, short)
Link should be rotated to 90° of opposite link
*Note: For the Ergo 46 CCPM,
please refer to the High
Cyclic Center Hub for correct
link and instructions.
*
17.5mm
20mm
JR Propo
JR Propo
. . . . . . . . . . . . . . . . . 2 pcs
. . . . 2 pcs . . . . . . . 2 pcs
. . . . . . . 2 pcs
